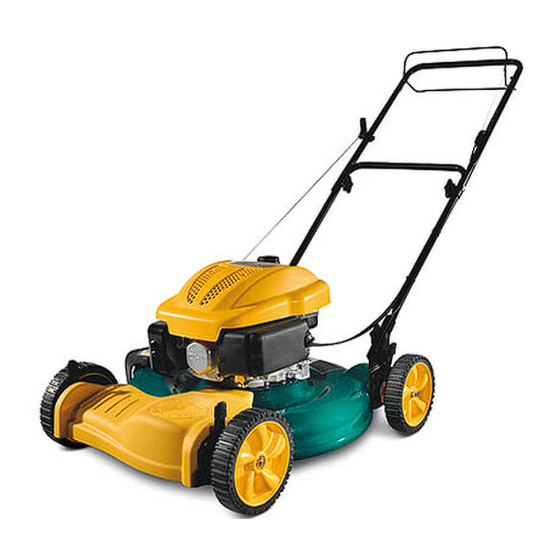

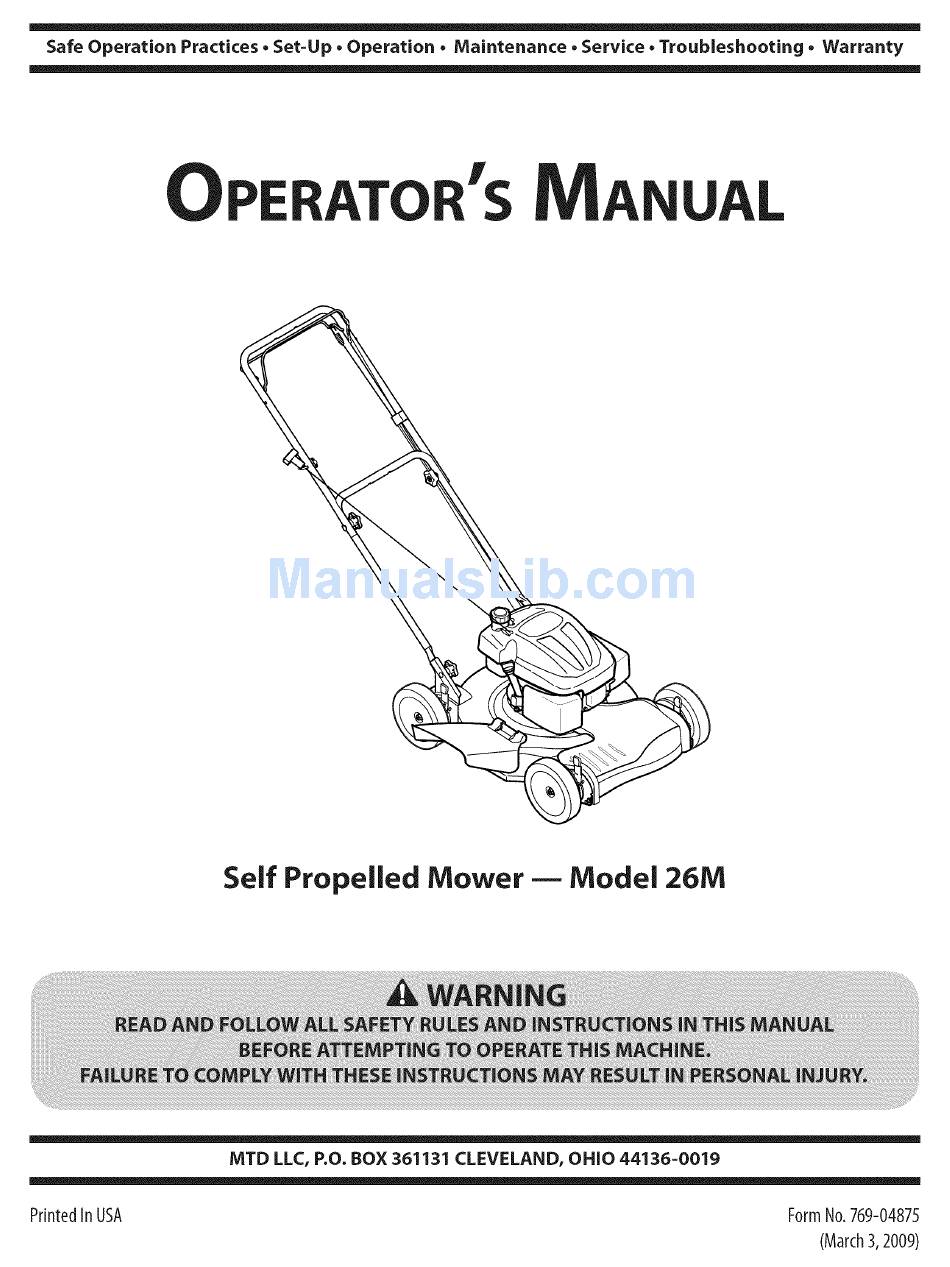

- Page 1 Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty Self Propelled Mower m Model 26M MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019 PrintedIn USA FormNo.769-04875 (March3, 2009)
-
Page 2: Serial Number
Choose from the options below: Visit us on the web at www.mtdproducts.com Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683 Write us at MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019... -
Page 3: Important Safe Operation Practices
importantSafeOperation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Slope Operation
12. Amissing ordamaged discharge cover can cause blade When starting engine, pull cord slowly until resistance contact orthrown o bject injuries. is felt, then pull rapidly. Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than 13. -
Page 5: General Service
Service Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn) Replace blade with SafeHandling Of Gas01ine: the original equipment manufacture's (O.E.M.) blade only, To avoid personal injury or property damage use extreme listed in this manual. -
Page 6: Spark Arrestor
SparkArrestor Notice Regarding Emissions Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) internal combustion engine and should not be used i_ll WARNING: This machine is equipped with an are certified to operate on regular unleaded gasoline,... -
Page 7: Safety Symbols
Safety Symbols This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. READ THE OPERATOR'S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting assemble and operate... - Page 8 Sight and hold this level with a vertical tree... or a corner of a building... or a fencepost ' FOldo, diine "o --Lepre_n tsa15 o 15 ° Usethis page as a guide to determine slopes where you may not operate safely. WARNING: Do not operate your lawn mower...
-
Page 9: Assembly And Setup
Assembly & Set-Up Contents of Carton One Lawn Mower One Bottle of Oil One Lawn Mower Operator's Manual Perform the following sequence for handle setup: Assembly Lift the upper handle up from folded position NOTE:This unit is shipped without gasoline or oil in the engine. - Page 10 If satisfied with height of handle, tighten wing nuts The rope guide is attached to the right side of the upper at the ends of the lower handle shown in Fig. 3-3. For handle. Loosen the wing nut which secures it to the upper convenience of operating, you may adjust the handle handle.
-
Page 11: Cutting Height
Mulching Baffle (If Equipped) Adjustments Install mulching baffle on the fight side of the mower CuttingHeight followJng the steps below: Each wheel has a height adjustment lever to change the Lift up and hold the side-discharge chute deflector cutting height of the mower. and insert bottom lip of the mulching baffle inside... -
Page 12: Controls And Features
Controls a nd Features Drive Control Recoil Starter Mulching Baffle Cutting Height Adjustment Levers Figure 4-1 Recoil S tarter BladeControl The recoil starter is attached to the right upper handle. Stand The blade control is attached to the upper handle of the mower. behind the unit and pull the recoil starter rope to start the unit. -
Page 13: Operation
Operation Starting Engine WARNING: Be sure no one other than the operator is standing near the lawn mower while starting engine or operating mower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas. -
Page 14: Maintenance And Adjustments
Maintenance& Adjustments Maintenance The transmission is pre-lubricated and sealed at the factory and does not require lubrication. General Recommendations Follow the Engine Maintenance section for lubrication schedule and instruction for engine lubrication. Always observe safety rules when performing maintenance. DeckCare The warranty on this lawn mower does not cover items that Clean underside... -
Page 15: Blade Care
Service Blade Care Lubricate the engine crankshaft and the inner surface of the blade adapter with light oil. Slide the blade adapter WARNING: When removing the cutting blade for onto the engine crankshaft. Place the blade on the adapter such that the side of the blade marked "Bottom" (or with sharpening or replacement,... -
Page 16: Off-Season Storage
Lift mower to access belt from underside of mower. Slide Off-Season Storage belt off of engine pulley and a round the blade. See Fig. 7-3. The following steps should be taken to prepare your lawn mower for storage. Clean and lubricate mower thoroughly as described in the... -
Page 17: Troubleshooting
Troubleshooting Problem Cause Remedy Engine Fails to start Blade control disengaged. Engage blade control. Spark plug boot disconnected. Connect wire to spark boot. Fill tank with clean, fresh gasoline. Fuel tank empty or stale fuel. Engine not primed (if equipped with primer). - Page 18 Problem Cause Remedy Uneven cut 1. Wheels not positioned correctly. 1. Place all four wheels in same height position (if equipped with individual height adjusters). 2. Dull blade. 2. Sharpen or replace blade. SECTION 8 -- TROUBLESHOOTING...
-
Page 19: Engine Operation
EngineOperation Fuel Cap Air Cleaner Grip Oil Drain Spark Plug Figure 9=1 Pre-0perationCheck Oil Recommendations NOTE:This engine is shipped without gasoline or oil in the engine. Running the engine with insufficient oil can cause serious engine damage and void the engine warranty. Before starting engine, fill with oil. -
Page 20: Starting The Engine
Check 0il Level Check Fuel Level NOTE: Be sure to check the engine on a level surface with the Clean around fuel fill before removing cap to fuel. engine stopped. Fill tank to approximately 1-inch below lowest portion Remove the oil filler cap and wipe the dipstick clean. -
Page 21: Engine Maintenance
EngineMaintenance Periodic inspection and adjustment of the engine is essential if high level performance is to be maintained. Regular any maintenance. To prevent accidental start-up, ARNING: Shut offthe engine before performing disconnect the spark plug boot. maintenance will also ensure a long service life. The required service intervals and the kind of maintenance to be performed... -
Page 22: Air Cleaner Service
AirCleanerService Oil Service Check oil level regularly. Paper filters cannot be cleaned and must be replaced once a year or every 100 operating hours; more often if used in extremely Be sure correct oil level is maintained. Check every five dusty conditions. -
Page 23: Spark Plug Service
Measure the plug gap with a feeler gauge. Correct as SparkPlugService necessary by bending side electrode. See Fig. 10-4. The gap should be set to 0.030 in. plug removed. DO NOT crank engine with spark WARNING: DO NOT check for spark with spark plug removed. -
Page 24: Fuel Filter Service
Fuel Filter Service Storage The fuel filter cannot be cleaned and must be replaced once a Engines stored between 30 and 90 days need to be treated with year or every 100 operating hours; more often if run with old a gasoline stabilizer and engines... - Page 25 If the engine on your mower fails to conform to this limited fuels, lubricants, or additives. warranty, MTD will cover the cost of parts and labor associated with Special conditions or circumstances that normally require more any adjustments and/or repairs necessary to return your engine than two pulls to start, specifically: 1) First start-up following your to its warranted condition.
- Page 26 Model26M t_ 37 ,.40 50 _/46 --<__ "\\...
- Page 27 Model26M R°f I Part Number Description I Part Number Description 687-02196A 747-1214 Drive Control Blade Adapter 942-0642A 22" Standard Blade 747-1161A-0637 Blade Control 746-04300 Blade Control Cable 942-0742A± 22" Mulching Blade 746-04304 Drive Control Cable 732-1026 Spring Lever 710-04694 749-I092A-0637 Seres Screw, 3/8-24 x 1.5 Upper Handle 782-0584-0637...
- Page 29 NOTES...
- Page 30 MTD. OWNER'S WARRANTY RESPONSIBILITIES: As the smalloff-roadengineowner,youare responsible forthe performance of the requiredmaintenance listed in your Owner'sManual.MTD recommends that you retainall yourreceiptscoveringmaintenances on yoursmall off-roadengine,but MTDcan not denywarrantysolelyfor the lack of receiptsor foryour failureto ensurethe performanceto all scheduledmaintenance. As the smalloff-roadengineowner,youshouldhoweverbe awarethat MTDmaydenyyour warrantycoverageif yoursmall off-roadengine or part hasfaileddue toabuse, neglect,impropermaintenance or unapprovedmodifications.
- Page 31 (8)Throughout the engine's warranty period defined inSubsection (a)(2), MTD will m aintain a supply ofwarranted parts s ufficient tomeet the expected demand forsuch parts. (9)Any replacement part m ay b eused i ntheperformance...
-
Page 32: Limited Warranty
MANUFACTURER'S LiMiTED WARRANTY The limited warranty set forth below is given by MTD LLC with c. Service completed by someone other than an authorized service dealer. respect to new merchandise purchased and used in the United States and/or its territories and possessions, and by MTD Products Limited d.
