MTD 650 Series Operator's Manual
  1. Manuals
  2. Brands
  3. MTD Manuals
  4. Blower
  5. 650 Series
  6. Operator's manual
MTD 650 Series Operator's Manual

MTD 650 Series Operator's Manual

Leaf blowers
Hide thumbs Also See for 650 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operator's Manual
Safety ° Assembly ° Operation ° Tips & Techniques ° Maintenance
° Troubleshooting ° Parts Lists ° Warranty

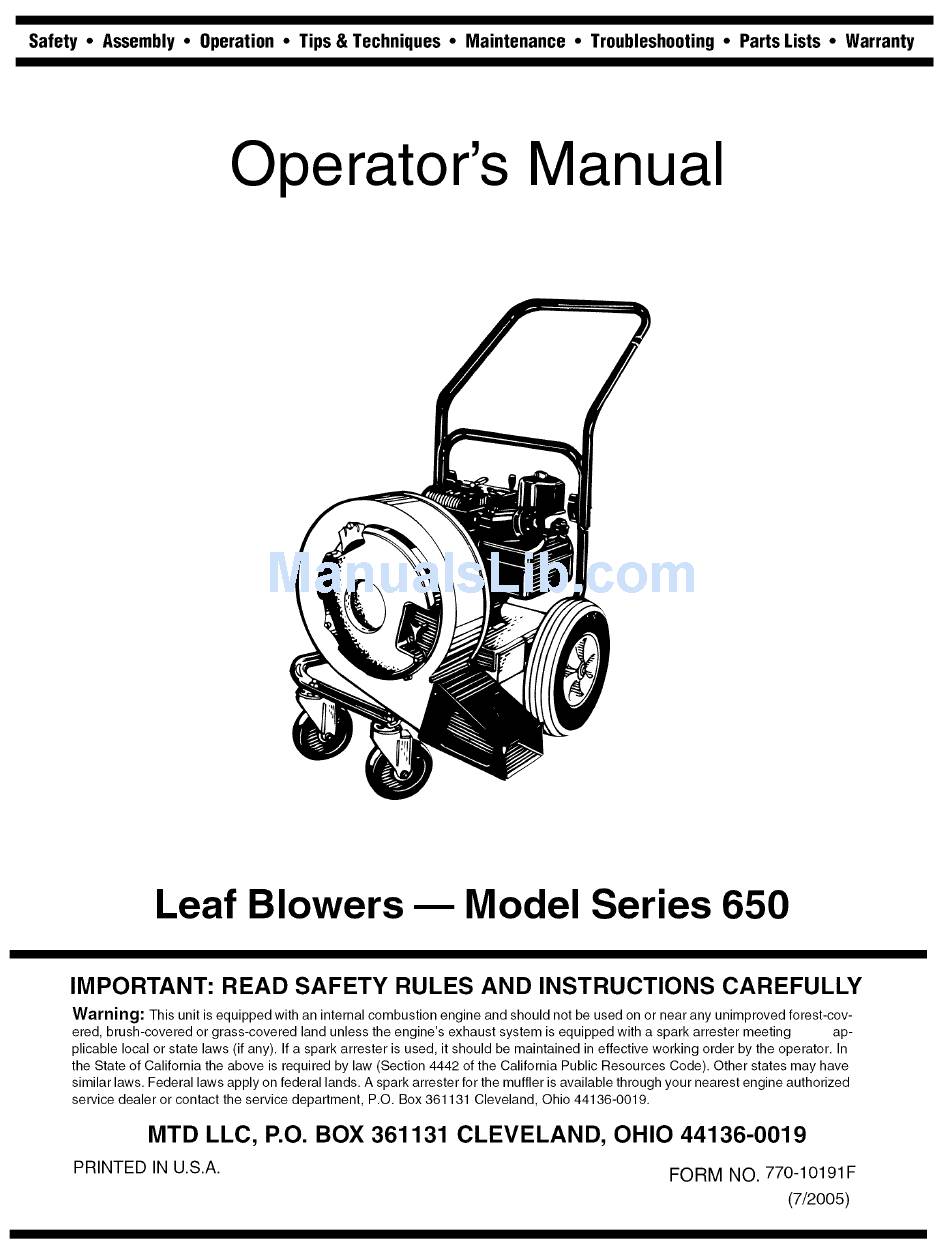

Operator's Manual
Leaf Blowers
Model Series 650
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-cov-
ered, brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting
ap-
plicable local or state laws (if any), If a spark arrester is used, it should be maintained in effective working order by the operator, In
the State of California the above is required by law (Section 4442 of the California Public Resources Code), Other states may have
similar laws, Federal laws apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department,
P,O, Box 361131 Cleveland, Ohio 44136-0019,
MTD LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 770-10191F
(7/2005)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650 Series and is the answer not in the manual?

Questions and answers

Related Manuals for MTD 650 Series

Summary of Contents for MTD 650 Series

  • Page 1 Federal laws apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P,O, Box 361131 Cleveland, Ohio 44136-0019, MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A.

  • Page 2: Customer Support

    This Operator's Manual is an important part of your new leaf blower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says. TABLEOFCONTENTS Content Content Important Safe Operation Practices Maintaining Your Leaf Blower Assembling Your Leaf Blower Trouble Shooting Illustrated Parts List...

  • Page 3: Section 1: Important Safeoperation P Ractices

    SECTION 1: IMPORTANT SAFEOPERATION P RACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 Service To reduce fire hazard, keep engine and muffler free of leaves, grass, and other debris build-up. Use extreme care in handling gasoline and other fuels. 10. Clean up fuel and oil spillage. Allow unit to cool at least 5 They are extremely flammable and the vapors are minutes before storing.

  • Page 5: Section 2: Assembling Y Our Leafblower

    SECTION 2: ASSEMBLING Y OUR LEAFBLOWER IMPORTANT:This unit is shipped without gasoline or oil in the engine. Be certain to service engine with gasoline and oil as instructed in the separate engine manual before operating your unit. NOTE: Reference to right or left hand side of the leaf Upper Handle blower is observed from the operating position.

  • Page 6: Section 3: Operating Y Our Leafblower

    SECTION 3: OPERATING Y OUR LEAFBLOWER • Move the choke lever on engine to CHOKE instructions warnings on the position. (A warm engine may not require choking.) WARNING: Read, understand, and follow machine this manual before • Move the throttle control on engine to FAST operating.

  • Page 7: Section 5: Maintaining Your Leafblower

    SECTION 5: MAINTAINING YOUR LEAFBLOWER WARNING: Before performing any mainte- Clean the engine regularly with a cloth or brush. Keep nance or repairs, stop the engine, wait the cooling system (blower housing area) clean to until the machine comes to a complete permit proper air circulation which is essential to engine stop, disconnect the spark plug wire and performance and life.

  • Page 8: Section 6: Troubleshooting

    SECTION 6: TROUBLESHOOTING Problem Cause Remedy Engine fails to start Spark plug wire disconnected. Connect wire to spark plug. Fuel tank empty or stale fuel. Fill tank with clean, fresh gasoline. Throttle control lever not in correct Move throttle lever to start position. starting position.

  • Page 9: Section 7: Partslistformodel Series 650

    SECTION 7: PARTSLISTFORMODEL SERIES 650 Ref. Ref. Part No. Part Description Part No. Part Description 14540B 710-1254 Hex Bolt 3/8-24 x 1.25 Engine Housing Bracket 710-0607 Hex Bolt 3/8-24 x 2.75 Hex Self Tapping Screw 5/16 x .5 710-1273t 710-1260A Hex Screw 5/16-18 x .75 736-0217 Lock Washer 3/8...
  • Page 10 ModelSeries650 21 20 Ref. Ref. Part No. Part No. Part Description Part Description 749-0784 736-0300 Flat Washer .38 ID x .57 OD Upper Handle 726-0100 Push Nut 3/8 750-0528 Spacer .382 ID x .50 OD x .180Lg 720-0171 Crank Knob 736-0169 Lock Washer 3/8 ID 736-0117...
  • Page 11 NOTES...
  • Page 12 MANUFACTURER'S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC with MTD does not extend any warranty for products sold or respect to new merchandise purchased and used in the exported outside of the United States, its possessions United States, its possessions and territories.

Table of Contents
