Specifications - Extron electronics SI 3 Black Specification Sheet

SI 3 Speakers — Extron V-Lock
extron V-lock sPeAker mountinG system
®
Provides quick and secure mounting for SI 3 Surface
•
Mount Speakers
Exclusive Patent Pending design
•
Easily mounts speakers like hanging a picture frame
•
Through-the-grille locking
•
One-step positioning and securing
•
Wide positioning arc
•
Theft-deterrent design
•
V-lock sPeAker mountinG system
Surface mount speakers are mounted onto walls, and therefore require considerable
flexibility in terms of where and how they can be installed. For integrators, a number of
challenges exist in the successful installation of surface mount speakers in an instructional or
commercial environment.
When installing a speaker, the installer is often working at an elevated height, performing
•
a delicate, tedious balancing act by supporting the speaker in place with one hand, and
securing it to the mounting hardware by tightening with the other hand cramped behind
the speaker.
The speaker must not only be installed securely, but also properly aimed at the listening
•
area. This is likely to require trial-and-error by first loosening the hardware, aiming the
speaker while supporting it in place, re-tightening the hardware, and then repeating if
necessary. The speaker often shifts while the installer tightens the hardware.
Surface mount speakers, similar to projectors, are subject to theft because of their open
•
exposure to potential vandals. Speakers can be removed simply by detaching them from
the mounting hardware.
To address these challenges, Extron has developed V-Lock, an exclusive, Patent Pending
speaker mounting system that is included with each SI 3 surface mount speaker.
V-Lock simplifies installation and substantially reduces the effort required to place and correctly
position wall-mounted speakers, while also offering theft deterrence. V-Lock is comprised of two
components, one that is mounted to the wall, and the other which is integral to the speaker. It
is sold in pairs and available in black or white.

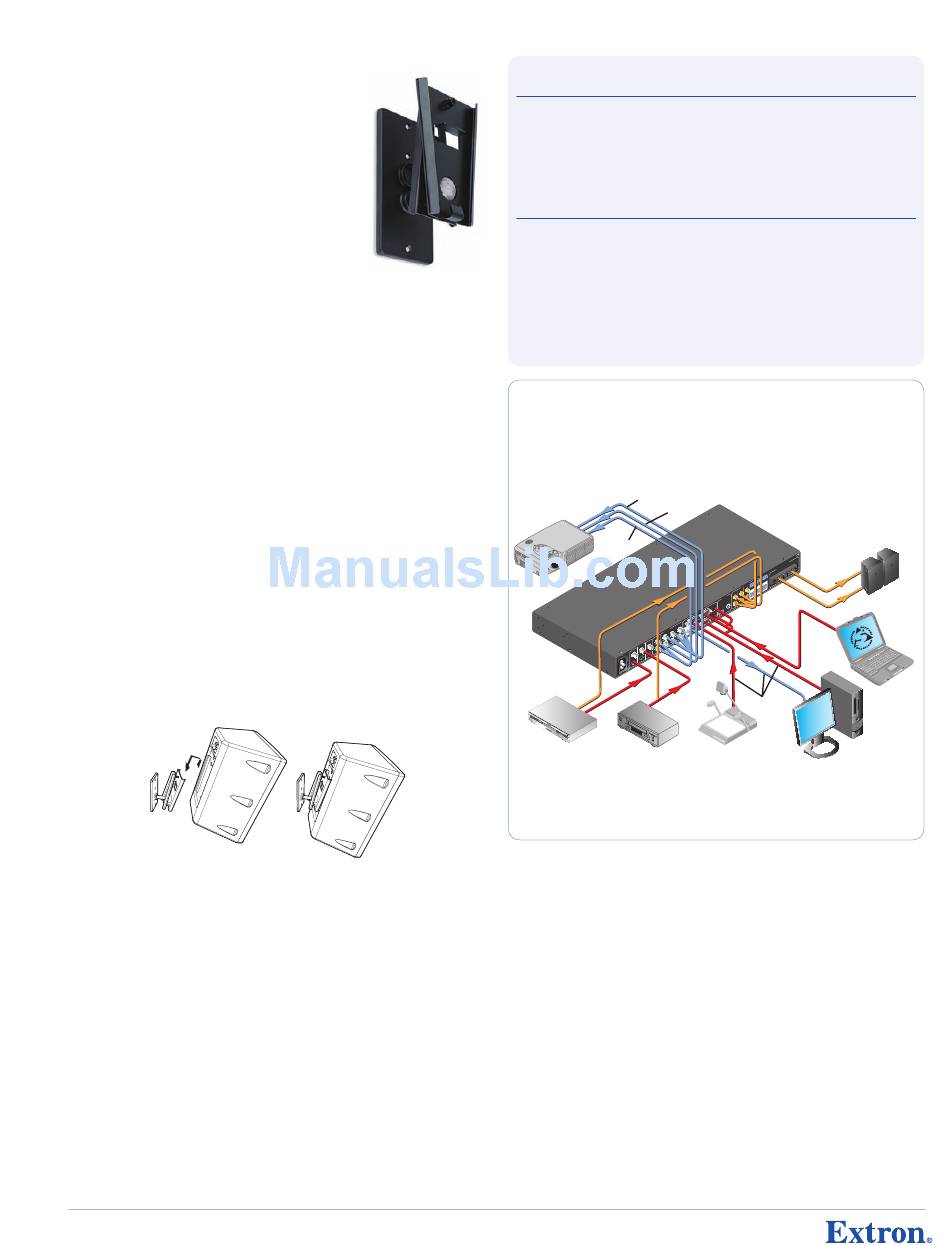

Extron
V-Lock
®
Mounting Bracket
Procedure
Easily mounts like a picture frame — After mounting the V-Lock bracket to the
•
wall, position the speaker so that the "V" rails on the back slide into the "V" channel
of the wall mount. The process is akin to installing a picture frame onto the wall.
The speaker is now fully supported by the mounting hardware, so that a balancing
act is no longer necessary.
One-step positioning and locking — Both hands are now free to orient the speaker
•
as desired. Then, using the included tool, fully secure the speaker to the mounting
hardware by tightening the V-Lock mount through the slot on the front grille. The subtle,
low profile Extron badge covers the slot after installation, hiding it from view.
Wide positioning arc — V-Lock offers wide horizontal and vertical travel, so that the
•
speaker can be easily positioned to achieve optimized sound coverage.
Theft-deterrent design — The V-Lock mounting hardware is integral to the speaker,
•
making simple detachment impossible. Access to the hardware is possible only through
the front baffle slot, which is concealed. Additionally, only the included tool will work
with the hardware. Therefore, V-Lock provides an effective solution for deterring theft.
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
Speaker Mounting System
®
V-Lock Wall Bracket
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX

sPecificAtions

Audio/Acoustic And electricAl
Speaker type........................... Full range indoor/outdoor surface mount speaker
Frequency range . . . . . . . . . . . . . . . . 75 Hz to 18 kHz, -10 dB, half space
Power capacity . . . . . . . . . . . . . . . . . . 16 W continuous pink noise
32 W continuous program
Nominal sensitivity . . . . . . . . . . . . . . 83 dB SPL, 1 W, 1 m, half space
Nominal impedance . . . . . . . . . . . . 8 ohms
Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3" (76.2 mm) paper cone
Overload protection . . . . . . . . . . . . . Full range power limiter
Input connector . . . . . . . . . . . . . . . . . . 2 pin spring terminals
GenerAl
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 speakers (1 pair)
Temperature/humidity . . . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . Wall mountable with included wall mountable V-lock brackets
NOTE: V-lock brackets can be angled up to 20° upward, 35° downward, 30° to the left, and 30° to the right.
Enclosure type . . . . . . . . . . . . . . . . . . . Plastic, trapezoidal, with metal grille and bass reflex ports
Enclosure outer dimensions. . . 8.75" H x 5.75" W x 5.6" D (22.2 cm H x 14.6 cm W x 14.2 cm D)
Product weight . . . . . . . . . . . . . . . . . . 4.0 lbs (1.8 kg) each
Shipping weight . . . . . . . . . . . . . . . . . 13 lbs (6 kg) per pair with mounting kit package
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 5 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
RGBHV
Video
S-video
Projector
4
B
U TS
O U TP G
M O
R
Y V
TS H
IN PU
EO
VI D
3
C
z
-6 0H 2
50
0V
0- 24
10
1
X.
A MA
1.0
Audio
Video
Video
DVD
VCR
Document Camera
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
s P e A k e r s
Extron
MLS 406SA
MediaLink
Switcher
Extron
SI 3
Surface-mount
Speakers
U T
U TP
D O
IF IE FT
LE
A M PL
H T
R IG
V
12
IR
Rx
Tx
/I R
4
B C LC
A /M
TS 32 M P
IN PU R S -2 EA R
3 PR
D IO R
AU L
L L U T
2
LI N EO R
L
1 L
L
M IX
X/ ST
AU JU B
AD -4 2d
R
TO
4d B
+2 R
D IO
AU L
VE R
E LE N O
LI N M O
TS
IN PU D IO
AU
5
R
6
O U T
O R
N IT
RGBHV
&
Audio
RGBHV
PC
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
Laptop
w/ Audio
647
