Extron electronics SI 26X User Manual

User's Guide

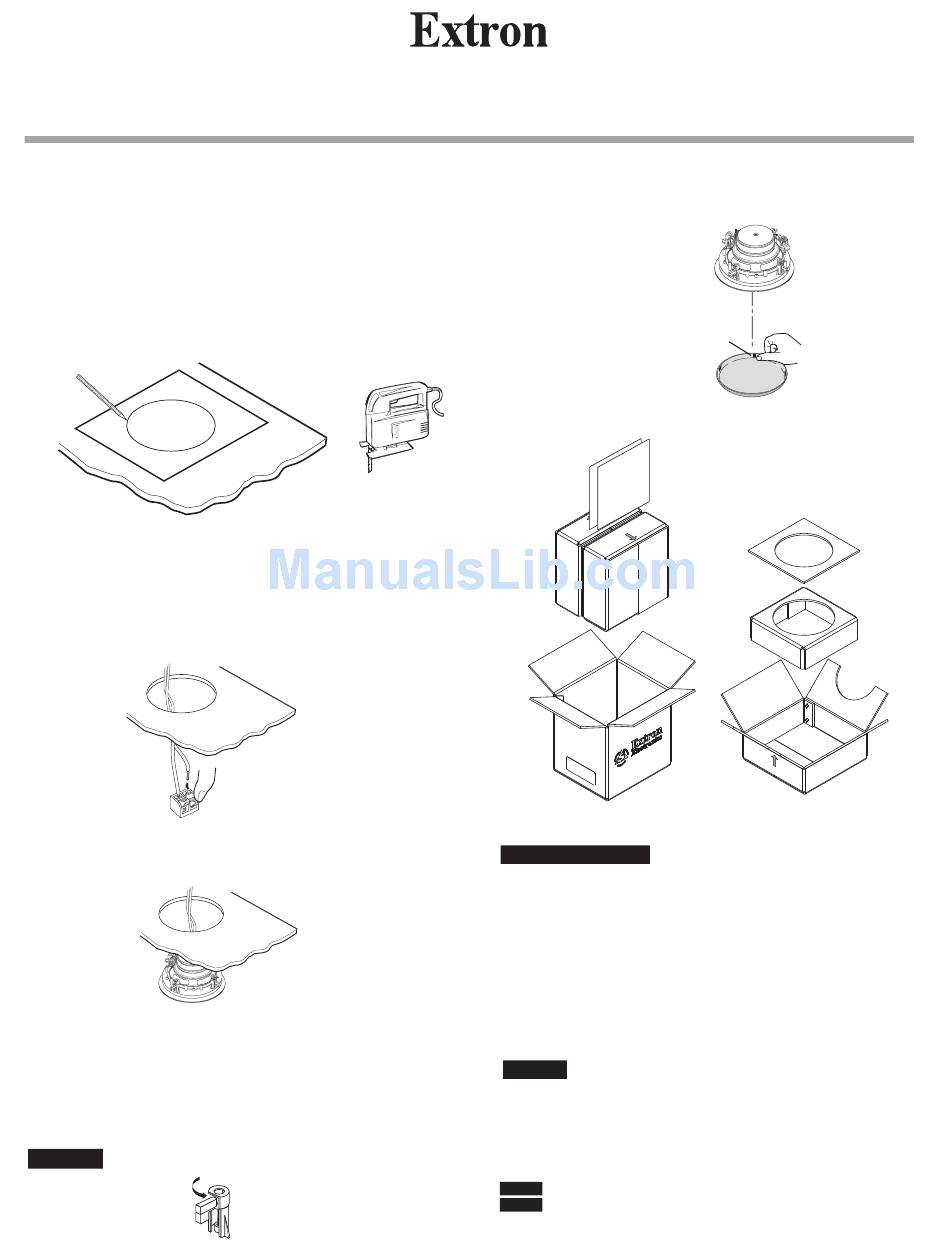

Frame Construction Ceiling Installation

1
Take the cutout template from the packaging box and
punch out the larger perforated circle. Place the cutout
template against the ceiling and trace the inside of the
circle. Carefully cut out the ceiling material around the
circle.
Trace template.
2
Remove the grill from the speaker.
3
Bring the speaker cable through the hole in the ceiling
and connect the leads to the speaker's spring terminal
clips.
4
Insert the speaker through the bottom of the hole in
the ceiling.
5
Loosen the four screws on the front baffle
(counterclockwise) ½ turn. Then tighten the screws
(clockwise) until the dog legs clamp the speaker to
the ceiling.
CAUTION
Do not over tighten screws.

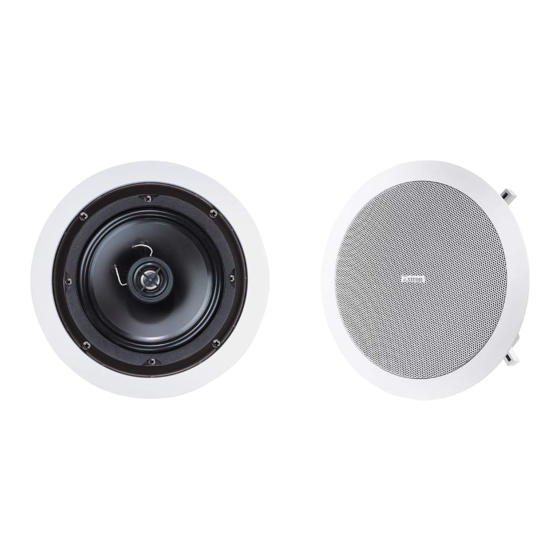

Ceiling Speaker
Cut Material
Red (+)
Black (-)
SI 26X
6
Install the speaker grill.
Apply 4 pieces (supplied) of
black putty to the edge of
the grill.
Packaging
User's Guide

Specifications:

Acoustic & Electrical
Speaker type.................................. 2-way, open back ceiling speaker
Frequency range........................... 50 Hz to 20 kHz, -10 dB, half space
Power capacity.............................. 50 W continuous program,
Nominal sensitivity......................
Nominal impedance ....................
Crossover frequency...................
Nominal coverage........................ 110°
Woofer........................................... 6.5" (165 mm) polypropylene cone
Tweeter.......................................... 0.75" (19 mm) titanium dome
General
Temperature/humidity................... Storage: -40 to +158 °F (-40 to +70 °C) /
Warranty ....................................... 5 years parts and labor
NOTE
All nominal levels are at ±10%.
NOTE
Specifications are subject to change without notice.
Cutout Template
25 W continuous pink noise
89 dB, 1 W, 1 m, half space
8 ohms
3 kHz
with moisture resistant coating
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
68-1166-01 Rev. B
04 06
