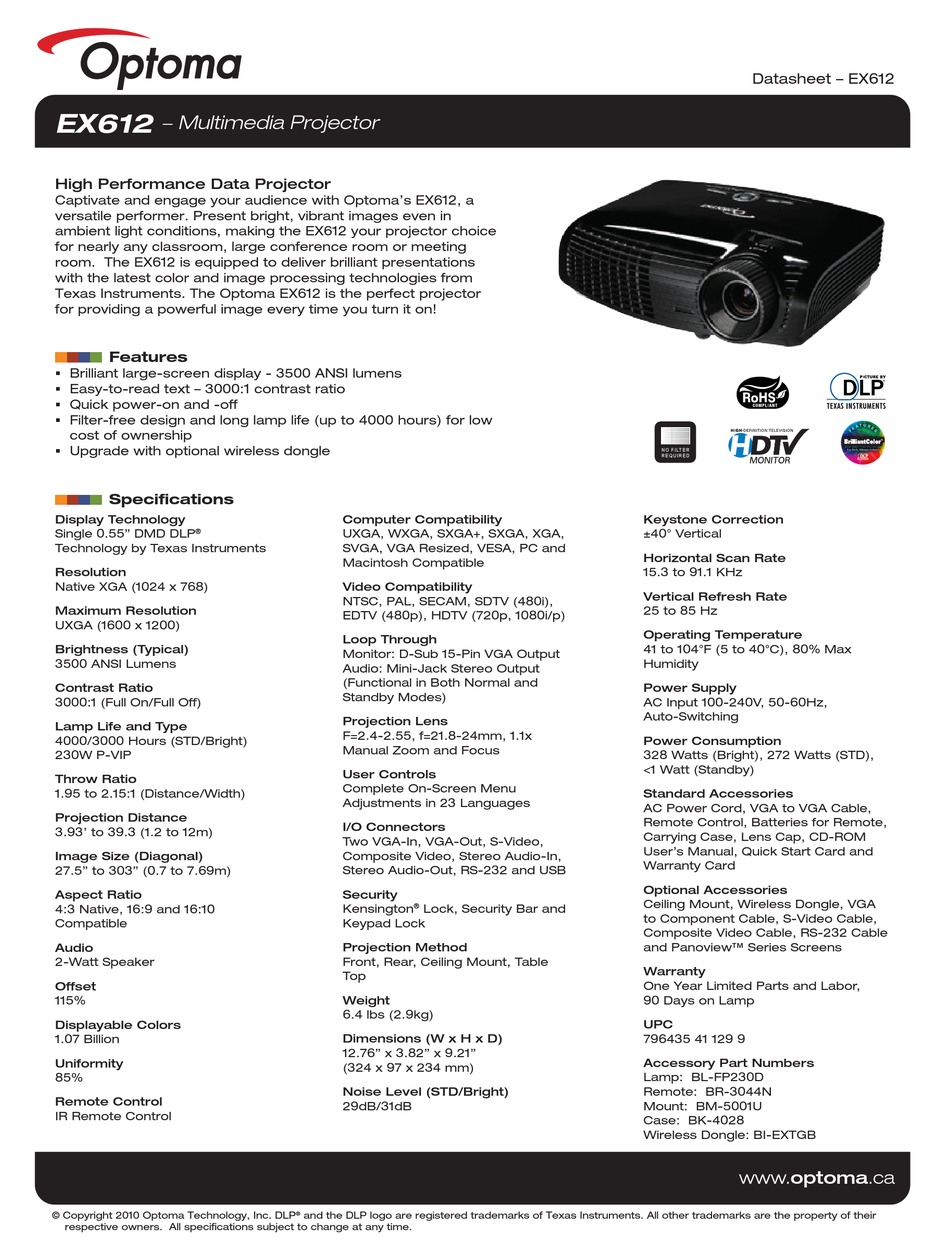

Optoma EX612 Datasheet

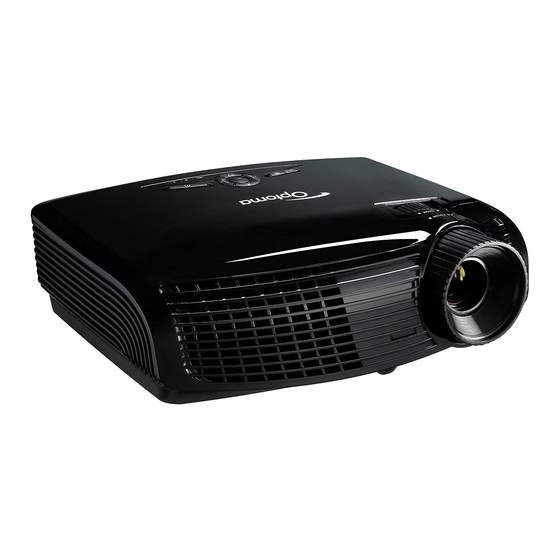

EX612
− Multimedia Projector
High Performance Data Projector
Captivate and engage your audience with Optoma's EX612, a
versatile performer. Present bright, vibrant images even in
ambient light conditions, making the EX612 your projector choice
for nearly any classroom, large conference room or meeting
room. The EX612 is equipped to deliver brilliant presentations
with the latest color and image processing technologies from
Texas Instruments. The Optoma EX612 is the perfect projector
for providing a powerful image every time you turn it on!
Features
 Brilliant large-screen display - 3500 ANSI lumens
 Easy-to-read text – 3000:1 contrast ratio
 Quick power-on and -off
 Filter-free design and long lamp life (up to 4000 hours) for low
cost of ownership
 Upgrade with optional wireless dongle

Specifications

Display Technology
Single 0.55" DMD DLP ®
Technology by Texas Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
3500 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
230W P-VIP
Throw Ratio
1.95 to 2.15:1 (Distance/Width)
Projection Distance
3.93' to 39.3 (1.2 to 12m)
Image Size (Diagonal)
27.5" to 303" (0.7 to 7.69m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Audio
2-Watt Speaker
Offset
115%
Displayable Colors
1.07 Billion
Uniformity
85%
Remote Control
IR Remote Control
© Copyright 2010 Optoma Technology, Inc. DLP
respective owners. All specifications subject to change at any time.
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
Loop Through
Monitor: D-Sub 15-Pin VGA Output
Audio: Mini-Jack Stereo Output
(Functional in Both Normal and
Standby Modes)
Projection Lens
F=2.4-2.55, f=21.8-24mm, 1.1x
Manual Zoom and Focus
User Controls
Complete On-Screen Menu
Adjustments in 23 Languages
I/O Connectors
Two VGA-In, VGA-Out, S-Video,
Composite Video, Stereo Audio-In,
Stereo Audio-Out, RS-232 and USB
Security
Kensington ® Lock, Security Bar and
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table
Top
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76" x 3.82" x 9.21"
(324 x 97 x 234 mm)
Noise Level (STD/Bright)
29dB/31dB
® and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
Datasheet – EX612
NO FILTER
REQUIRED
Keystone Correction
±40° Vertical
Horizontal Scan Rate
15.3 to 91.1 KHz
Vertical Refresh Rate
25 to 85 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 80% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
328 Watts (Bright), 272 Watts (STD),
<1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Carrying Case, Lens Cap, CD-ROM
User's Manual, Quick Start Card and
Warranty Card
Optional Accessories
Ceiling Mount, Wireless Dongle, VGA
to Component Cable, S-Video Cable,
Composite Video Cable, RS-232 Cable
and Panoview™ Series Screens
Warranty
One Year Limited Parts and Labor,
90 Days on Lamp
UPC
796435 41 129 9
Accessory Part Numbers
Lamp: BL-FP230D
Remote: BR-3044N
Mount: BM-5001U
Case: BK-4028
Wireless Dongle: BI-EXTGB
