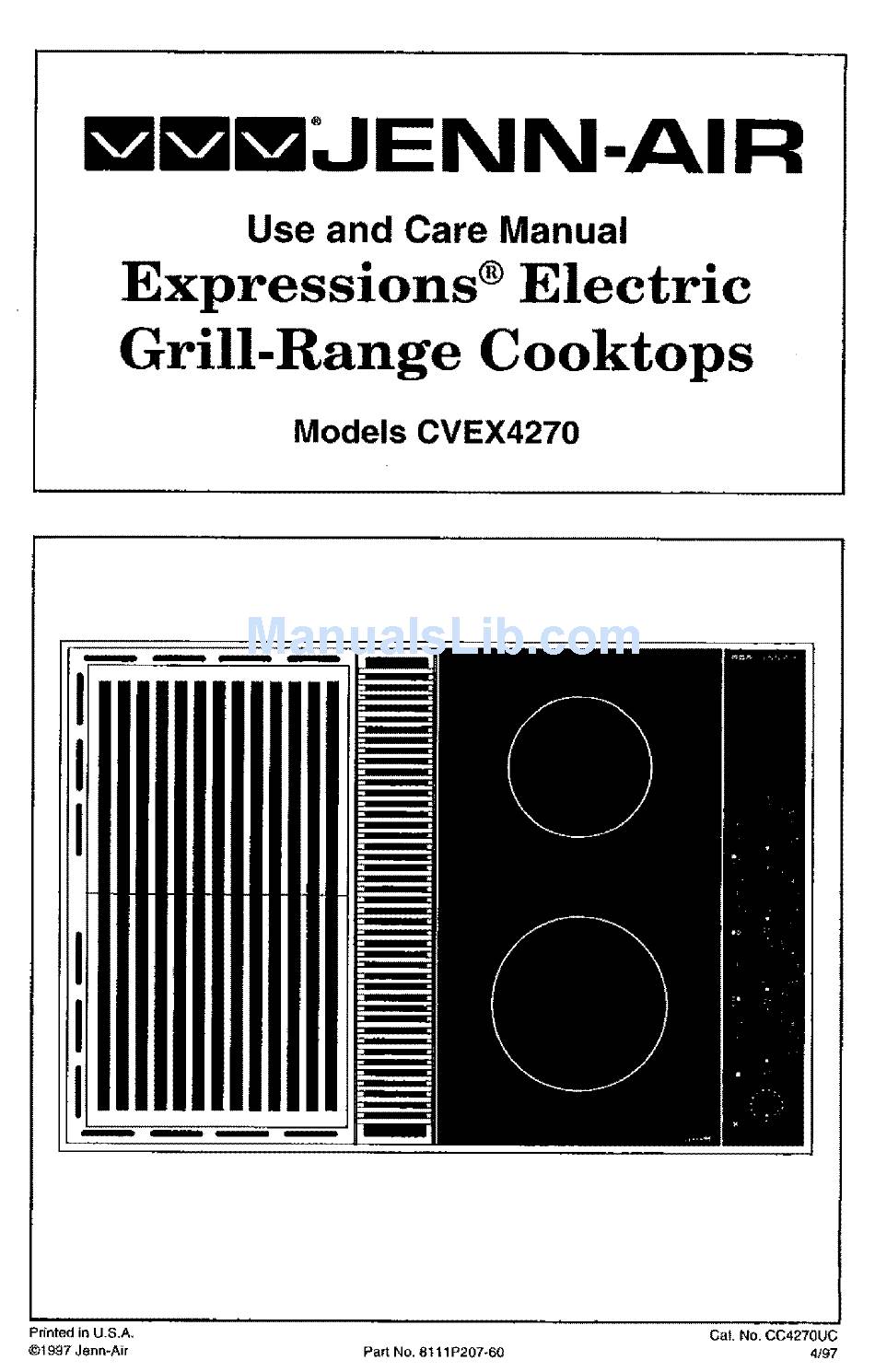

- Page 1 m mJENN-AIR Use and Care Manual ®xpressions ®_lectric Grill-Range Cooktops Models CVEX4270 Prfnted in U.S,A, (3at. No. CC4270UC ©1997 Jenn*Air Part No. 81 I,1P207-60 4/97...
- Page 2 Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to an authorized Jenn-Air Service Contractor. Flammable materials should not be stored near surface units. Do not use water on grease fires.
- Page 3 Other surfacesmay become hot enoughto cause burns - amongthesesurfacesis the cooktop. 18. Do not cook on glass-ceramiccookingsurface if the cooktopis broken.Cleaningsolutionsandspilloversmaypenetrate the broken cooktopandcreatea shockhazard.Contact a nauthorized Jenn-Air ServiceContractor. 19. Cleanglass-ceramic cooktopswithcaution. If wet spongeor cloth is usedtowipespillsona hotcookingarea,becareful t o avoidsteam burns.
- Page 4 Should you have any questions about using your Jenn-Air cooktop or need a use and care manual for your cooktop cartridge, write to us. Be sure to provide the model number for lhe manual requested.
- Page 5 The built-in ventilation system removes cooking vapors, odors and smoke from foods prepared on the cooktop, grill and grill accessories. Regular use of this system will insure a more comfortable and tess humid kitchen which is free of heavy cooking odors and fumes that normally create a frequent need for cleaning and redecorating.
- Page 6 The variable controls forthecooktop cartridges and grill e lement provide flexiblity insetting selection. • Since the controls are a push-turn type, they must be pushed down before turning. To set (from the OFF position), push down on control knob and turn in eilher direction for desired setting.
- Page 7 Cooktop cartridge options include conventional coil, halogen, or radiant. To Install Cartridges 1. Ifthe grill grates, element, and/or grill liner pans are in place, remove before installing a cooktop cartridge. Clean basin pan of any grease accumulation. (See page 12 for cleaning recommendations.) 2.
- Page 8 The grill accessory consists of two black grill grates, a grill element and a grill liner pan. To Install Grill 1, Before installing grill components, be certain surface controls are OFF. 2. Place the grill liner pan into an empty basin pan with the opening next to the terminal block.
- Page 9 Before the first use, wash your new grill grates in hot soapy water, rinse and dry. Then "season" the surface by wiping on a thin coating of cooking oil. Remove excess oil by wiping again with another paper towel, This procedure should be repeated when either: a) cleaning in the dishwasher since the detergent may remove seasoning or b) anytime a sugar-based marinade (for example, barbecue sauce) is going to be...
- Page 10 Preheat grill on Hi, 5 minutes, for best flavor. Note: This chart is a suggested guide. Cooking times and control settings are approximate due to variations in meats and voltage.
- Page 11 With your Jenn-Air grill and accessories, literally any food you've considered "at its best" when prepared outdoors can now be prepared indoors with less fuss and great flavor. The following suggestions are good rules to follow and will increase your enjoyment of the equipment.
- Page 12 Besure thegrill i scool a ndcontrols areintheOFF position. Grill Grates These are made from cast aluminum and are coated with the Excalibur_ nonstick finish, • After the grill grates have cooled, wipe off grates with a paper towel. Wash cool grates (DO NOT IMMERSE HOT GRILL GRATES IN WATER)
- Page 13 knobs on the control panel can be removed with the controls in the OFF position. Pull each knob straight from the shaft. Wash knobs in warm soapy water or dishwasher; do not use abrasive cleaners or materials. To replace each knob, match flat part of knob opening with the spring on the shaft, returning to the OFF position.
- Page 14 Grill Covers Griddle Grill Accessory Model AO330 Model A0310 A set of two grill covers may be purchased to cover Grill accessory includes Self-draining griddle second (optional) grill makes many favorite grill liner pan, Energy- accessory. foods easier to fix. Saver grill element, and Model AO340S two black nonstick grill...
- Page 15 • No more than three 90 ° elbows should be used. Distance between elbows should be at least 18". • Recommended Jenn-Air wall cap should be used. Make sure damper moves freely when ventilation system is operating. • There should be a minimum clearance of 6" for cooktop installed near a side wall.
- Page 16 If it does not heat on either side--indications are that cartridge requires service. In this event, you may speed service by delivering the lightweight cartridge to the authorized Jenn-Air Service Contractor, thus by-passing the time required for normal home-service schedules. mmmJENN-AIR 403 WEST...
