Frigidaire LFBD2409LM0B Use & Care Manual

Electrolux
Hide thumbs

Advertisement

Important Sa
Instru_i_s
..
Dishwasher Fea_s
..............
Operating Instru_ions .............
Preparing and Loading Dishes ..
iii/_,i_i_iiii!i!i!ii_iiiiiiii,!!iiiiiiiii_;iii!!!i

Advertisement

loading

  Related Manuals for Frigidaire LFBD2409LM0B

  Summary of Contents for Frigidaire LFBD2409LM0B

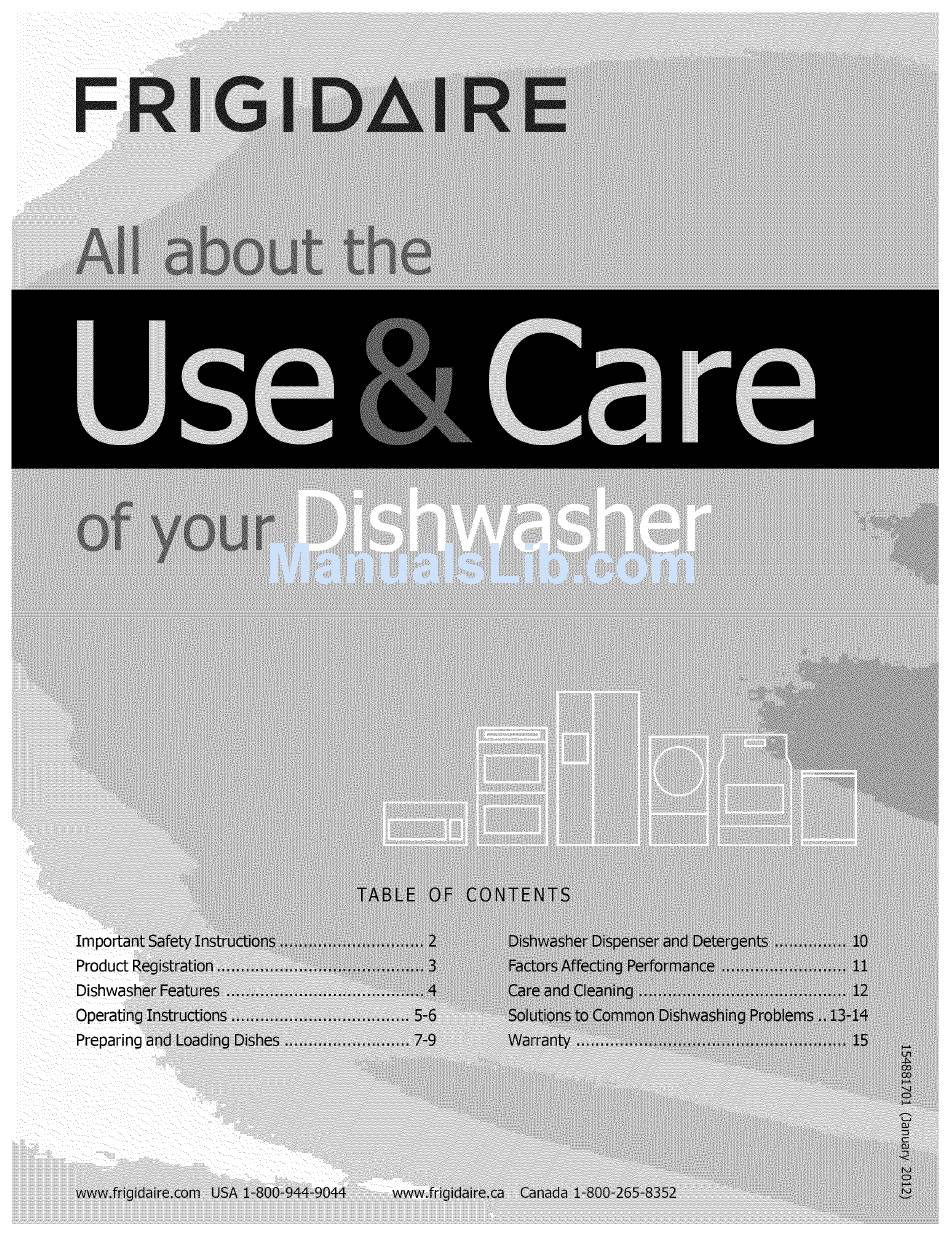

  • Page 1 iii/_,i_i_iiii!i!i!ii_iiiiiiii,!!iiiiiiiii_;iii!!!i Important Sa Instru_i_s Dishwasher Fea_s ....Operating Instru_ions ..... Preparing and Loading Dishes ..
  • Page 2 Read all instructions before using this appliance. Save these instructions for future reference, Do not wash plastic items unless marked "dishwasher safe" or the equivalent. Check with manufacturer for This symbol will help alert you to such dangers as recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire personal injury, burns, fire, and electrical shock.
  • Page 3 As each cycle begins, you may-or may not- Serial number hear the drain motor. Registering your product with Frigidaire enhances our ability to serve you. You can reaister online at The next sound you will hear is the splashing water as www.frigidaire.com...
  • Page 4: Dishwasher Overview

    Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher fills with water covering the filter area. Water is then pumped through the spray arms. Soil particles go through and across the filters, and down the drain as the water is pumped out. This series of steps are repeated as needed.
  • Page 5: Operating Instructions

    -_llu FRIGID&IRE n mllml Appearance may vary from your model. Options Selections * Delay Start (*available The DELAY START option allows you to automatically delay select models) starting your dishwasher from 1-10, 1-24 or 2-4-6 hours depending on your model. * Hi-Temp Wash On models with 1-10 or 1-24 hour delay, press the DELAY...
  • Page 6: Cycle Chart

    Cycle Chart * Includes dry time Water Time* Washes/ Cycle To Select Cycle Rinses (approx,) (Hours) Heavy Wash/Pots & Pans Select HEAVYWASH/POTS & 4 washes 9.1 gal. PANSand desired OPTIONS. 2 1/4 to For pots, pans, casseroles and 4 rinses HI-TEMP WASH will 7.6 imp.
  • Page 7: Dish Preparation

    Dish Preparation Scrape away large pieces of food, bones, pits, {{x. toothpicks, etc. The continuously filtered wash fluid will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time.
  • Page 8 Loading the Bottom Rack Upper Rack Cycle Features and appearance of racks and silverware basket The UPPER RACK option can be used to wash a wide may vary from your model. assortment of items when you don't have a full load. Also, when the upper rack fills up with glasses and the The lower rack is best for plates, saucers, bowls, and lower rack is still empty, you don't have to wait anymore...
  • Page 9: Loading The Silverware Basket

    Loading the Silverware Basket When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Water spray cannot reach nested items. Load sharp items (knives, skewers, etc.) pointing down. Failure to do so may result in injury.
  • Page 10: Filling The Detergent Dispenser

    Filling the Detergent Dispenser How much Detergent to use The detergent dispenser has one covered and one The amount of detergent to use depends on the water uncovered cup. Detergent in the uncovered cup falls into hardness. Water hardness is measured in grains per gallon. the dishwasher when the door is closed.
  • Page 11: Rinse Aid

    Rinse Aid Water Pressure Rinse aid greatly improves drying, reduces water The hot water line to dishwasher must provide water spots, filming, and lubricates wash arm bearings pressure between 20 and 120 psi. for proper rotations. With it water "sheets" off dishes Low water pressure may occur when laundry or showers rather than forming water droplets that cling and leave are in operation.
  • Page 12: Care And Cleaning

    Care of Drain Air Gap If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the Burn Hazard dishwasher will drain properly. A drain air gap is usually Allow heating element to cool before mounted on countertop and can be inspected by cleaning the interior.
  • Page 13: Troubleshooting

    Before calling for service, review this list. • Check to see that proper amount of detergent is being used for cycle selected. (See Detergent Dispenser.) may save you both time and expense. This list includes common experiences that are not the •...
  • Page 14: Removing Spots And Film

    • Besurethedishloaddoesn't b lock sprayfromentering Dishwasher Does Not Drain thedetergent cup. • Check t o seeifcyclehasbeen completed. Properly • Make sureitems donotprevent thedetergent dispenser • If unit is hooked up to a food waste disposer, make fromopening. sure the disposer is empty. Dishwasher Leaks •...
  • Page 15 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance installed,...
