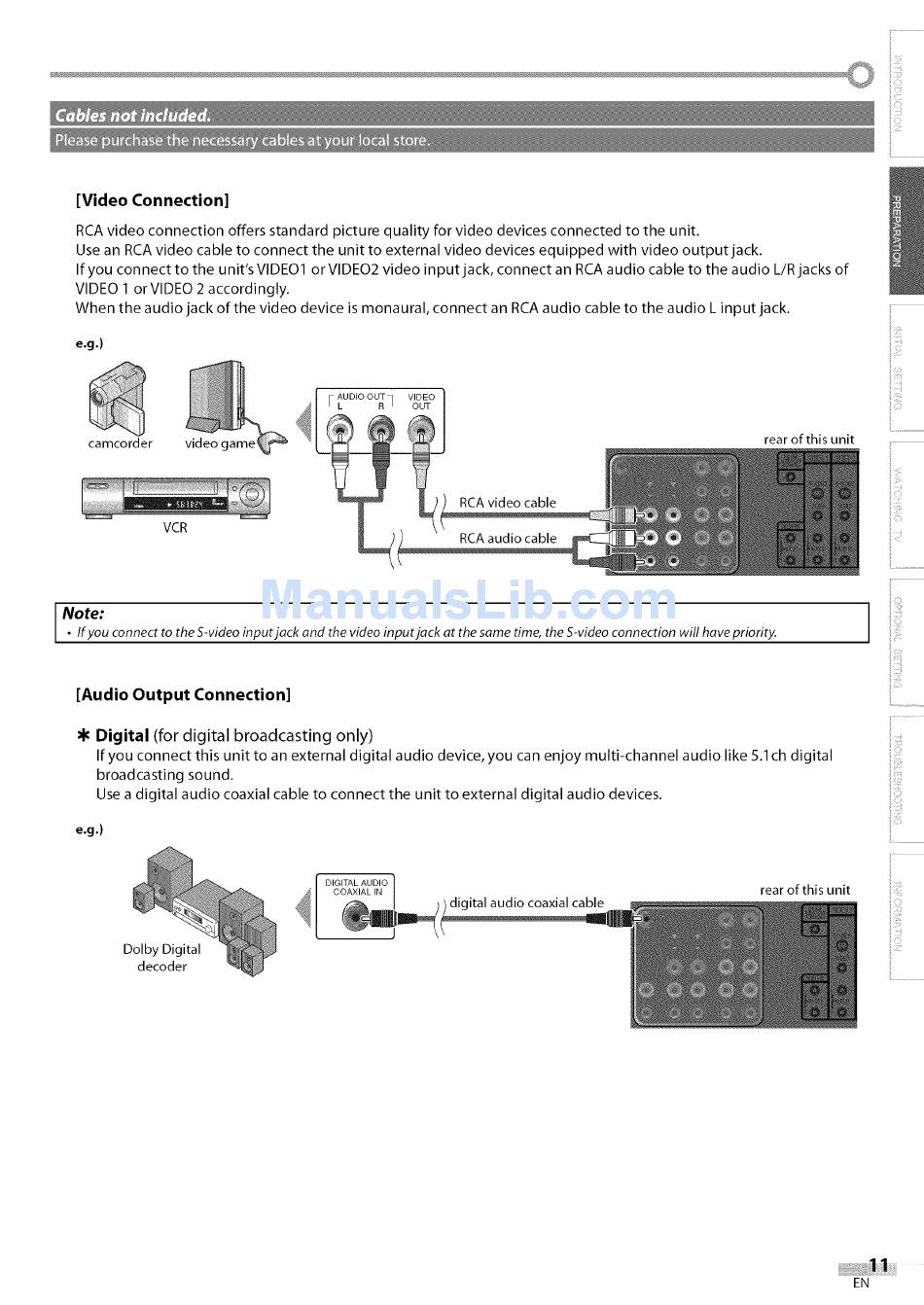

[Video Connection]
RCA video connection offers standard picture quality for video devices connected to the unit.
Use an RCA video cable to connect the unit to external video devices equipped with video output jack.
If you connect to the unit's VIDE01 or VIDE02 video input jack, connect an RCA audio cable to the audio L/R jacks of
VIDEO 1 orVlDEO 2 accordingly.
When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
e.g.)
camcorder video c
VCR
AUDIO OUT VIDEO
L R q OUT
RCA video cable
rear of this unit
Note:
• If you connect to the S-video inputjack and the video inputjack at the same time, the S-video connection will have priority.
[Audio Output Connection]
Digital (for digital broadcasting only)
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1 ch digital
broadcasting sound.
Use a digital audio coaxial cable to connect the unit to external digital audio devices.
e.g.)
Dolby Digital
decoder
_[ DIGITAL AUDIO
COAXIAL IN
digital audio coaxial cable
rear of this unit
