Summary of Contents for Crosley CA15WYR1

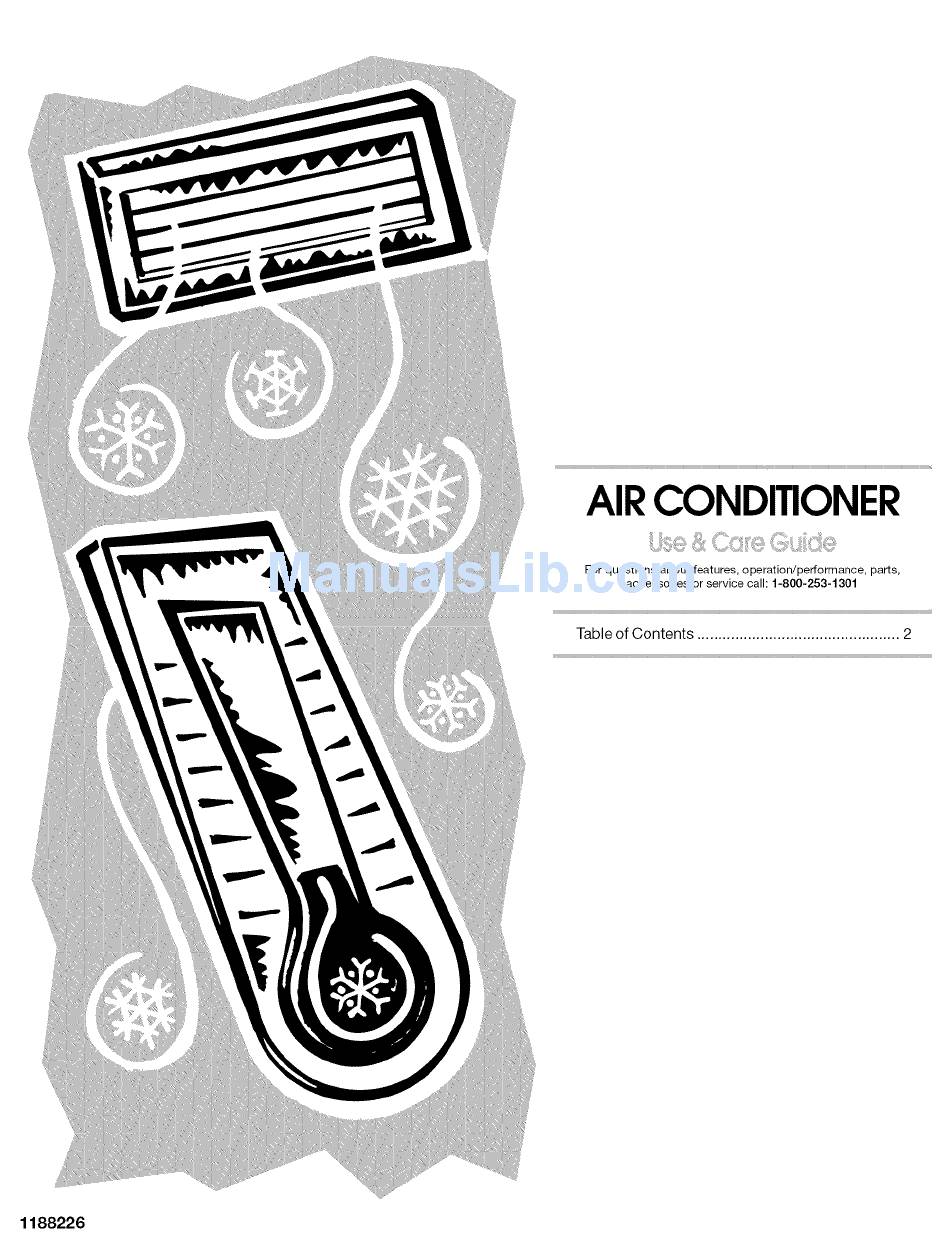

- Page 1 AIR CONDITIONER For questions about features, operation/performance, par[s, accessories or service call: 1-800-253-1301 Table of Contents ..........1188226...
- Page 2 TABLE OF CONTENTS AIR CONDITIONER SAFETY ............Complete Installation..............INSTALLATION REQUIREMENTS ..........AIR CONDITIONER USE .............. Tools and Parts ................Starting Your Air Conditioner--Digital Control ......16 Location Requirements ..............Starting Your Air Conditioner-- Rotary Control ......19 Electrical Requirements ............... Changing Air Direction ...............
- Page 3 INSTALLATION REQUIREMENTS Gather the required tools and parts before starting installation. IMPORTANT: Observe all governing codes and ordinances. Read and follow the instructions provided with any tools listed Check the location where the air conditioner will be installed. here. Proper installation is your responsibility. Make sure you have everything necessary for correct installation.
- Page 4 Specific electrical requirements are listed in the chart below. Through-the-Wall Installation Follow the requirements for the type of plug on the power supply cord. The wall opening measurements should be: Power supply cord Wiring requirements • Height: 18" (45.7 cm) plus twice the thickness of wood used to build frame.
- Page 5 2. Press RESET. 3. Press TEST (listen for click; Reset button will trip and pop out). 4. Press and release RESET (listen for click; Reset button will latch and remain in). The power supply cord is ready for operation. NOTES: •...
- Page 6 Using the tray back as a template, center in windowsill against outside edge of stool. A. Tray back B. Windowsill C. Outside edge of stool Using the 2 inside screw holes in tray back, mark 1. To assemble the tray frame, insert tab on tray back into slot screw locations on windowsill for mounting the on tray side.
- Page 7 3. Place one end of tray center over carriage bolt. Attach support legs 1. Determine the correct slots on the tray side from the type of exterior construction of the building. Thin wall construction (vinyl, wood, etc.) A. First and second slots 4.
- Page 8 Install SMART-MOUNT '_Tray Assembly in window 1. From inside, place SMART-MOUNT tray, support legs facing down, in the window. Match the holes in tray side with the Install side curtains predrilled holes in windowsill. 2. Using 2 - #10 - 12 x 11/2"slot-head wood screws, secure the NOTE: Attach curtains to unit before placing unit in window.
- Page 9 6. While the right-hand curtain is still extended, insert screws Top view into top and bottom slots of curtain. Using #8 x %" pan-head screws, screw curtain to the top and bottom holes in air conditioner cabinet. 7. Slide curtain housing into guides as far as it will go. 8.
- Page 10 Correct installation Attach side curtains to window 1. Pull left-hand curtain frame out until it fits into the window channel. Repeat with right-hand curtain frame. 2. Insert one of the #8 x %" round-head screws through left- hand curtain frame and into the window channel to fasten the curtain frame to the window.
- Page 11 Attach window-lock bracket to window sash with #8 x 3/4" Option 2--Plaster wall with no molding round-head screw to secure window in place. If the plastered wall is to be flush with the cabinet and no molding is used, the wood frame must be set 1/2"(13 mm) into the inside wall.
- Page 12 7. Place a 3/4"(2 cm) thick by 2" (5 cm) wide wood strip on the bottom of the opening against the inside edge. A. 17¼" (43.8 cm) C. ¾" (2 cm) thick B. 2" (5 cm) wide D. Indoor side of wail opening Center the tray back in the opening and align it with the inside edge of the opening.
- Page 13 3. Place one end of tray center over carriage bolt, Attach support legs 1. Determine the correct slots on the tray side from the type of exterior construction of the building. Thin wall construction (vinyl, wood, etc.) A. First and second slots 4.
- Page 14 Right Side Install SMART-MOUNT '_Tray Assembly in Wall Opening 1. From inside, place SMART-MOUNTTMtray, support legs facing down, in the wall opening. Match the holes in tray side with the predrilled holes in wall opening. A. #10 - !2 x ! _" slot-head wood screw NOTE: If the exterior of building can be damaged by support legs, place a board between the wall and support legs.
- Page 15 If the feet on the bottom of the air conditioner do not rest on the wood strip, remove the air conditioner and adjust the ii;:;_O_ii!!;;;ii_iiO, iii' _i_ii_i4!i:i? ,_!i!_,,ii_ ¸_ i iiiiiiii'Ol%il;;!ii!_iO_'i_i!?_il ¸¸_¸ _!_!l%_,OL_ii:!!iii_iii'_i_i_ i!i%!i:i_ W:C_l!i SMART-MOUNT tray until feet rest on the wood strip. •...
- Page 16 NOTE: Allow for removal of the air conditioner at a later time If the bottom of the air conditioner does not sit against the for routine annual maintenance. bottom of the SMART-MOUNT tray, remove air conditioner and adjust angle of tray until air conditioner sits against the bottom of the tray.
- Page 17 Mode Temperature Press MODE until you see the indicator light come on for the • Press the plus button to raise the temperature. Room setting you desire. indicator light will turn off, and Set indicator light will turn on. Display shows the Temperature control setting. Each time you Choose Auto, Cool, Fan Only or Power Saver.
- Page 18 To set the Timer to turn on the air conditioner, keeping To operate air conditioner with remote control previous settings: 1. Turn off air conditioner. NOTE: Remote control may vary in appearance. 2. Press TIMER. Timer indicator light will flash. Hour indicator light will turn on, and display will show remaining hours before air conditioner will turn on.
- Page 19 Toselect t hefanspeed(inCool,FanOnly or Power S aver Press TIMER again or wait 10 seconds. Timer indicator light modeonly): on air conditioner will remain on. Hour indicator light on air conditioner will turn off, and Room indicator light on air Press TURBO, HIGH or LOW. conditioner will turn on.
- Page 20 Temperature Exhaust Control (on some models) Push the Exhaust control CLOSED for maximum continuous Turn the TEMPERATURE control to a mid-setting. Adjust the air cooling, Pull the Exhaust control OPEN to allow you to draw stale conditioner's performance by turning the Temperature control or smoky air from the room, clockwise for maximum cooling.
- Page 21 AIR CONDITIONER CARE Your new air conditioner is designed to give you many years of 3. Use a vacuum cleaner to clean air filter. If air filter is very dirty, dependable service. This section tells you how to clean and care wash it in warm water with a mild detergent.
- Page 22 TROUBLESHOOTING You can solve many common air conditioner problems easily, saving you the cost of a service call. Try the suggestions below to see whether you can solve your problem without outside help. The air conditioner is in a heavily occupied room, or heat- Air conditioner will not operate producing appliances are in use in the room.
- Page 23 ASSISTANCEOR SERVICE Please record the model and serial number information below. Before calling for assistance or service, please check "Troubleshooting." It may save you the cost of a service call. If Also, record the purchase date of your appliance and the store's you still need help, follow the instructions below.
- Page 24 1188226 © 2004. 9/04 Printed in U.S.A. All rights reserved.
