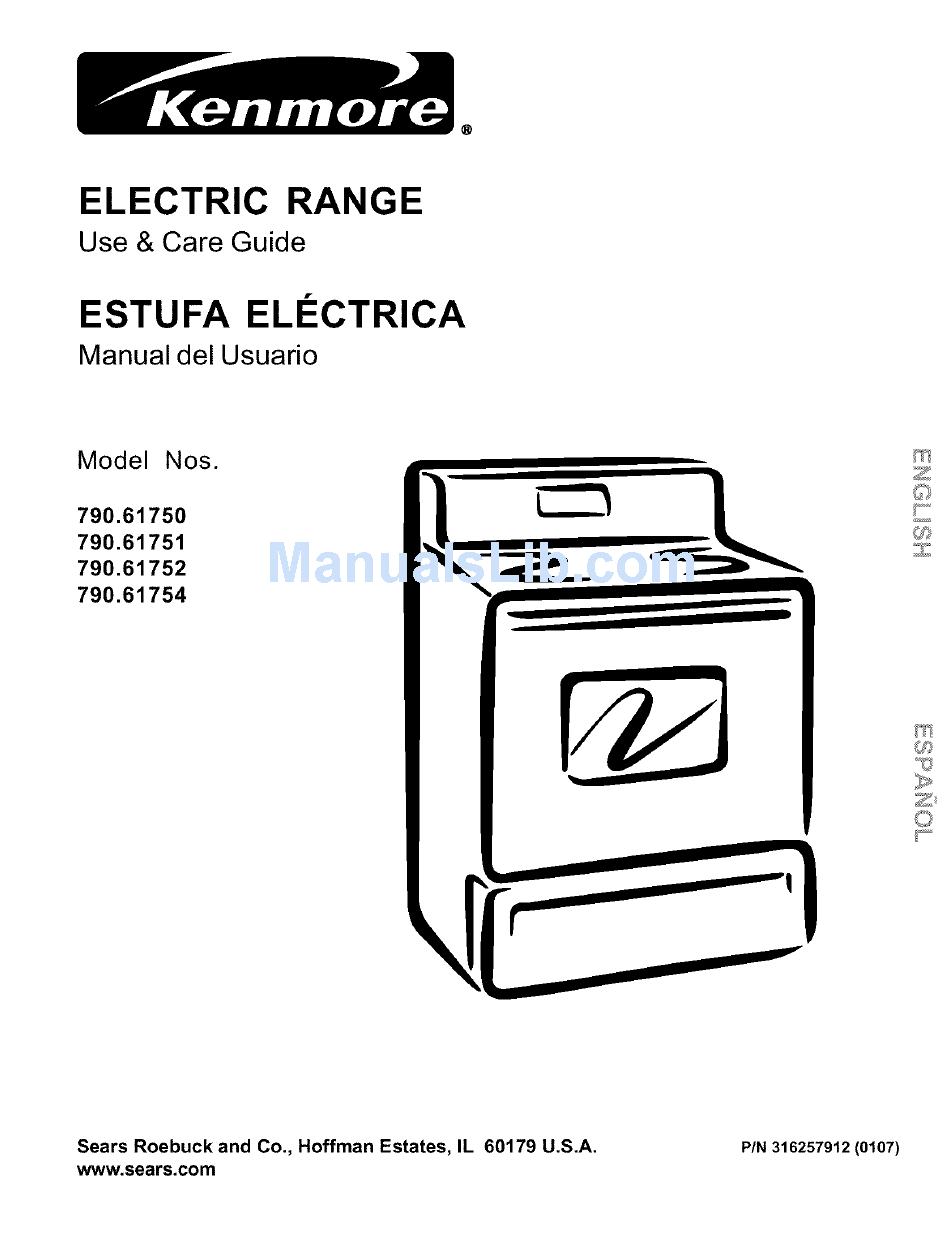

- Page 1 ® ELECTRIC RANGE Use & Care Guide ESTUFA ELI:I:CTRIC A Manual del Usuario Model Nos. 790.61750 790.61751 790.61752 790.61754 Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com PIN 316257912 (0107)
-
Page 2: Table Of Contents
We Service What We Sell. Sears Maintenance Agreements Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced. -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions, Please pay attention to these symbols and follow all instructions given. _!_,W.'IzI#II_ [€11 This symbol will help alert you to Situations that may cause serious bodily harm, death or property damage This Symbol Will help alert you to Situations that may Cause bodily injury or property damage •... - Page 4 Important Safety Instructions IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP OVEN • Know which knob controls each surface heating unit. Place a • Use Care When Opening Oven Door or Warmer Drawer (if pan of food on the unit before turning it on, and turn the unit off equipped)--Stand to the side of the range when opening the door before removing the pan.
-
Page 5: Serial Plate Location
Important Safety Instructions IMPORTANT SAFETY NOTICE The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances. -
Page 6: Range Features
Range Features Note: The features of your range will vary according to model. Manual Oven ElectTonicOven Control Your Ught Switch with Clock and "Element On" Electric KitchenTimer Indicator Range Features At a Glance Coo_op Interior Clean (1)Broil Pan and Porcelain Ught (1) BroilPan Insert Enamel... -
Page 7: Before Setting Oven Controls
Before Setting Oven Controls Oven Vent Location OVEN VENT LOCATED UNDER LEFT REAR ELEMENT For models equipped with coiled surface elements, the oven vent is located under the left rear surface element. When the oven is on, warm air flows through the left rear element. -
Page 8: Oven Control Functions
Oven Control Functions READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various functions of the oven as described below. BAKE PAD--Used UP and DOWN ARROW PADS-- select the bake function. Used along with the function pads to select oven temperature,... - Page 9 Setting Oven Controls _iiiii!ii;if_ ..iiiii: To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 500°F. To Set the Controls for Baking: Press _. "-- ----°" appears in the display. Within 5 seconds, press the or V .
-
Page 10: Setting Oven Controls
Setting Oven Controls To Broil The broiler pan and the insert allows grease to d rain and be kept awayfrom the Arrange oven rack while oven is still cool. Position the rack as suggested in high heat of the broiler. DO NOT use the the chart below. -
Page 11: Care & Cleaning
Care & Cleaning Surfaces How to Clean Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and Plastic Control Knobs, Body Forgeneral cleaning, use hot, soapy water and a cloth. Formore difficultsoils and Parts, and Decorative Trim built-up grease, apply a liquid detergent directly onto the soil. - Page 12 Care & Cleaning Surface Elements and Drip Bowls - surface elements can be un plugged and removed to make cleaning the drip pans easier. The surface elements clean themselves when they are tu reed on. Food spilled on a hot element will burn off. Food spilled on a cool element may be cleaned with a damp cloth--any remaining soil will burn off the next time the element is used.
-
Page 13: Care & Cleaning
Care & Cleaning Changing Light (some models) the Oven On some models, the oven light automatically turns on when the door is opened. Oven Some models have a switch located on the control panel to turn on the light. The oven light is located at the rear of the oven and is covered with a glass shield held by a wire holder. -
Page 14: Before You Make A Service Call
Before You Call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION... - Page 15 Before You Call Solutions to Common Problems POSSIBLE CAUSE/SOLUTION OCCURRENCE Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause Drip bowls are pitting or rusting. corrosion. Remove and wash drip bowls as soon as possible after a spillover Normal environment.
-
Page 16: Sears Service
For repairof major brand appliancesin your own home... no matterwho made it, no matterwhosoldit! 1-800-4-MY-HOME ® Anytime,day or night (1-800-469-4663) (U.S.A. and Canada) www.sears.com www.sears.ca For repairof carry-inproductslikevacuums,lawnequipment, and electronics, c all for the location of yournearest Sears Parts and Repair Center. 1-800-488-1222 Anytime, day or night(U.S.A.
