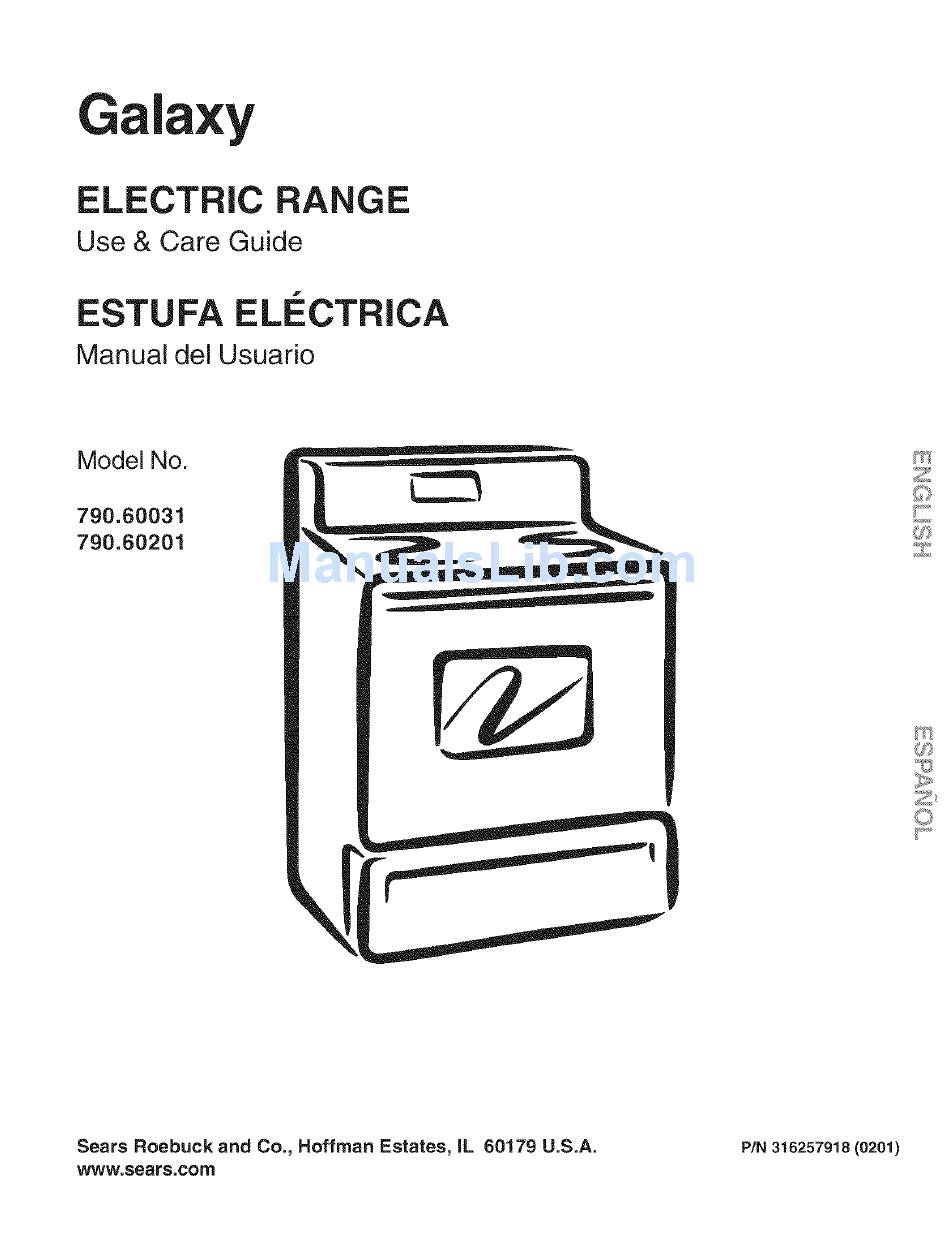

- Page 1 Galaxy ELECTRIC RANGE Use & Care Guide ESTUFA ELECTRICA Manual del Usuario Model No. 790.60031 790.60201 Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316257918 (0201) www, sears,com...
-
Page 2: Table Of Contents
Table of Contents Product Record In this space below, record the date of purchase, model and Free-Standing Range Warranty ......... serial number of your product. You will find the model and Product Record ..............serial number printed on an identification plate. This serial IMPORTANT SAFETY INSTRUCTIONS ...... -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions, Please pay attention to these symbols and follow all instructions given. _!_,W.'IzI#II_ [€11 This symbol will help alert you to Situations that may cause serious bodily harm, death or property damage This Symbol Will help alert you to Situations that may Cause bodily injury or property damage •... - Page 4 Important Safety Instructions IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP OVEN • Know which knob controls each surface heating unit. Place a • Use Care When Opening Oven Door or Warmer Drawer (if pan of food on the unit before turning it on, and turn the unit off equipped)--Stand to the side of the range when opening the door before removing the pan.
-
Page 5: Serial Plate Location
Important Safety Instructions IMPORTANT SAFETY NOTICE The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances. -
Page 6: Range Features
Range Features Note: The features of your range will vary according to model. Your Electric "Surface" On Oven Control "Oven" On Indicator Knob Indicator Range light Light Features Easy to Clean Coil At a Glance Surface Element Controls (1)Broil Pan and (1) Broil Pan Insert Clean Porcelain... -
Page 7: Before Setting Oven Control
Before Setting Oven Control Oven Vent Location OVEN VENT LOCATED UNDER LEFT REAR ELEMENT For models equipped with coiled surface elements, the oven vent is located under the left rear surface element. When the oven is on, warm air flows through the left rear element. - Page 8 Setting Surface & Oven Controls SURFACE OVEN OVEN O TEMP READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various functions of the oven as described below. Note: The Oven indicator light will glow when the oven is turned on when baking or broiling.
-
Page 9: Care & Cleaning
Care & Cleaning Surfaces How to Clean Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth. Painted and Plastic Control Knobs, Body Forgeneral cleaning, use hot, soapy water and a cloth. Formore difficultsoils and Parts, and Decorative Trim built-up grease, apply a liquid detergent directly onto the soil. - Page 10 Care & Cleaning Surface Elements and Drip Bowls - s urface elements can be un plugged and removed to make cleaning the drip pans easier. The surface elements clean themselves when they are tu reed on. Food spilled on a hot element will burn off. Food spilled on a cool element may be cleaned with a damp cloth--any remaining soil will burn off the next time the element is used.
- Page 11 Care & Cleaning To Remove and Replace Oven Door To Remove Oven Door: Open the door. Remove screws located on the inside of the oven door near the hinges A (one on each side.) Close the door to the quarter-open position. Grasp the door firmly on both sides and lift up and off the hinges.
-
Page 12: Before You Make A Service Call
Before You Call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION... - Page 13 Before You Call Solutions to Common Problems POSSIBLE CAUSE/SOLUTION OCCURRENCE Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause Drip bowls are pitting or rusting. corrosion. Remove and wash drip bowls as soon as possible after a spillover Normal environment.
-
Page 14: Sears Service
For repairof major brand appliancesin your own home... no matterwho made it, no matterwhosoldit! 1-800-4-MY-HOME ® Anytime,day or night (1-800-469-4663) (U.S.A. and Canada) www.sears.com www.sears.ca For repairof carry-inproductslikevacuums,lawnequipment, and electronics, c all for the location of yournearest Sears Parts and Repair Center. 1-800-488-1222 Anytime, day or night(U.S.A.
