Husqvarna 917.380460 Owner's Manual
  1. Manuals
  2. Brands
  3. Husqvarna Manuals
  4. Lawn Mower
  5. 917.380460
  6. Owner's manual
Husqvarna 917.380460 Owner's Manual

Husqvarna 917.380460 Owner's Manual

725 series briggs & stratton engine power-propelled 22" multi-cut rotary lawn mower
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

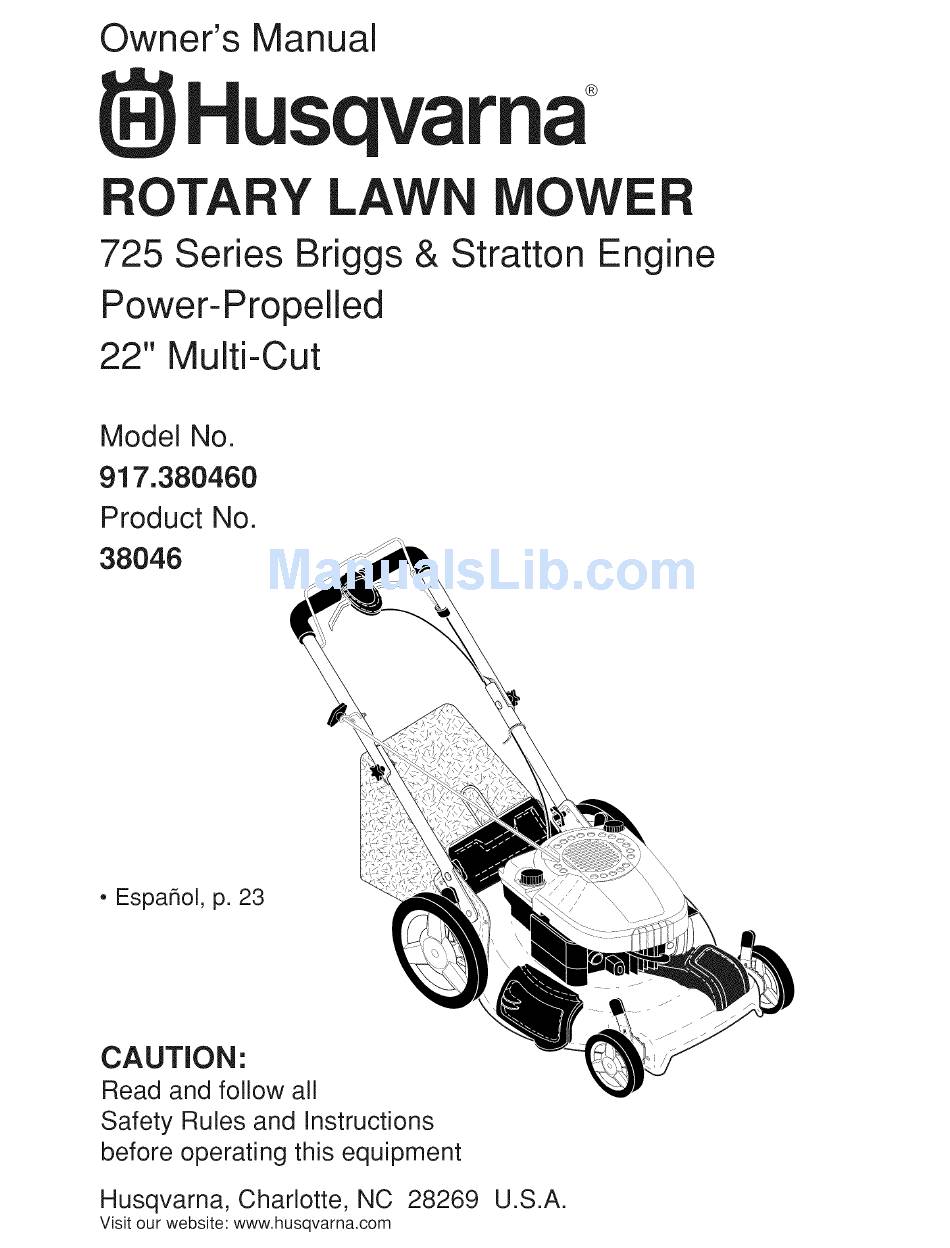

Owner's Manual
sqva
OTARY LAWN
®
MOWER
725 Series Briggs
Power-Propelled
22" Multi-Cut
& Stratton Engine
Model No.
917.380460
Product No.
38046
• EspaSol, p. 23
CAUTION'.
Read and follow all
Safety Rules and Instructions
before operating this equipment
Husqvarna, Charlotte, NC 28269
Visit our website: www.husqvarna.com
U.S.A.

Advertisement

loading

Related Manuals for Husqvarna 917.380460

Summary of Contents for Husqvarna 917.380460

  • Page 1 725 Series Briggs & Stratton Engine Power-Propelled 22" Multi-Cut Model No. 917.380460 Product No. 38046 • EspaSol, p. 23 CAUTION'. Read and follow all Safety Rules and Instructions before operating this equipment U.S.A. Husqvarna, Charlotte, NC 28269 Visit our website: www.husqvarna.com...

  • Page 2: Table Of Contents

    Maintenance ........15-18 Safety Rules .......... Warranty ..........Service and Adjustments ....19-20 Product Specifications ......Storage ..........20-21 Assembly / Pre-Operation ......Troubleshooting ......... 21-22 Operation ........... 10-14 Repair Parts ........44-53 Maintenance Schedule ......IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob- jects.
  • Page 3 In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Husqvarna other authorized service center (See the REPAIR PARTS section of this manual).
  • Page 4 Warranty Period shown on Exhibit A. This Limited Warranty may not be transferred to any subsequent prochaser of this Husqvarna,_R_ ' product. Certain components (e.g., engines and transmissions) are excluded from coverage, and other limitations apply, as described in this document.
  • Page 5 Failures due to improper set up, pre-delivery service or repair service by anyone other than an authorized Husqvarna servicing dealer during the warranty period;...

  • Page 6: Warranty

    Product/Component ........Rent@! U_e/ ........IFrame, Chassis, Front Axle IEngine* ITransmission (if made by Husqvarna/Peerless) 3 Years No Warranty No Warranty ITransmission (if third party) _ IXLS Models only - stamped deck shell. Armor IProtected...
  • Page 7 RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network. EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna. Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network. MZ - Two (2) Year Commercial warranty, parts &...
  • Page 8 Record both serial number and date of purchase in space provided above. These accessories were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Husqvarna retailers and service centers. Some of these accessories may not apply to your lawn mower.
  • Page 9 Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
  • Page 10 NOTE: Gasoline containing up to 10% ethanol (El0) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (El0) will void the product warranty. MEETS CPSC SAFETY REQUIREMENTS Husqvarna rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S.
  • Page 11 DRIVE CONTROL ADJUSTMENT The operation of any lawn Over time, the drive control system may SAFETY GLASSES mower can result in foreign become "loose", resulting in decreased objectsthrown into the eyes, speed. There is a turnbuckle on the whichcanresultinsevereeye underside of the drive control housing to damage.Alwayswearsafety increase tension on the drive cable.

  • Page 12: Operation

    TO CONVERT MOWER Your lawn mower was shipped ready to be used as a mulcher. To convert to bagging or discharging: REAR BAGGING • Lift rear door of the lawn mower and place the grass catcher frame hooks onto the pivot brackets. •...
  • Page 13 BEFORE STARTING ENGINE ADD GASOLINE • Fill fuel tank to bottom of tank filler neck. ADD OiL Do not overfill. Use fresh, clean, regular Your lawnmower is shipped without oil in unleaded gasoline with a minimum of the engine. For type and grade of oil to 87 octane.
  • Page 14 MOWING TiPS MULCHING MOWING TiPS _, CAUTION: Do not use de-thatcher IMPORTANT: For best performance, blade attachments on your mower. Such keep mower housing free of built-up attachments are hazardous, will damage grass and trash. See "CLEANING" in the Maintenance section of this manual.

  • Page 15: Maintenance Schedule

    MAINTENANCE BEFORE A FTER EVERY EVERY EVERY BEFORE EACH EACH 25 HOURS SCHEDULE USE USE HOURS OR SEASON HOURS STORAGE Check for Loose Fasteners _ Clean / Inspect Grass Catcher * Check Tires _ Check Drive Wheels Clean Lawn Mower ..M Clean under Drive Cover *** O Check Drive Belt / Pulleys *** Check / Sharpen / Replace Blade...
  • Page 16 LAWN MOWER IMPORTANT: To ensure proper assembly, center hole in blade must align with star Always observe safety rules when per- on blade adapter. forming any maintenance. 3. Be sure trailing edge of blade (opposite TIRES sharp edge) is up toward the engine. •...
  • Page 17 GRASS CATCHER 2. Remove engine oil cap; lay aside on a clean surface. The grass catcher may be hosed with 3. Tip lawn mower on its side as shown water, but must be dry when used. and drain oil into a suitable container. Check your grass catcher often for dam- age or deterioration.
  • Page 18 CLEANING Back plate IMPORTANT: For best performance, keep mower housing free of built-grass and trash. Clean the underside of your mower after each use. ,_CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug. •...
  • Page 19 3. Reinstall blade adapter and blade. believe that engine is running too fast or Return mower to upright position. too slow, take your mower to a Husqvarna 5. Install new belt on gearcase pulley. or other qualified service center for repair 6.

  • Page 20: Storage

    If you think your lawn mower to a Husqvama or other the engine-governed high speed needs qualified service center for repair and/or adjusting, contact a Husqvarna or other adjustment. qualified service center, which has proper equipment and experience to make any necessary adjustments.

  • Page 21: Troubleshooting

    Allow the engine to cool before storing in any enclosure. TROUBLESHOOTING - See appropriate section in manual unless directed to a Husqvarna or other qualified service center. PROBLEM CAUSE CORRECTION Does not start Dirty air filter. 1. Clean/replace air filter.
  • Page 22 Excessive Worn, bent or loose blade. 1. Replace blade. Tighten vibration blade bolt. Bent engine crankshaft. 2. Contact a Husqvarna other qualified service center. Starter rope Engine flywheel brake is on 1. Depress control bar to when control bar is released.
  • Page 23 Reglas de Seguridad ........ 23-24 Programa de Mantenimiento ......Garanfia ............ 25-28 Mantenimiento .......... 36-39 Especificaciones del Producto ....... Servicio y Adjustes ........40-41 AImacenamiento ........41-42 Montaje / Pre-Operaci6n ....... Operaci6n ..........31-35 Identificaci6n de problemas ...... 42-43 Partes de repuesto ........
  • Page 24 HACER: • Nunca Ilenar contenedores en un veh[culo, en un cami6n o caravana con un forro de plb.stico. • Puede recortar a trav_s de la superficie de Colocar siempre los contenedores en el suelo la cuesta, nunca hacia arriba y hacia abajo. lejos de su veh[culo antes de Ilenar.
  • Page 25 - Garantia limitada Husqvarna garantiza al comprador minorista original que este producto Husqvarna(R) carece de defectos materiales o de fabricacidn con un uso y mantenimiento normales desde el dia de la compra, dentro del periodo de garantia aplicable indicado en el Anexo A.
  • Page 26 30 dias para las piezas y mano de obra de uso no comercial. Los productos solo se reacondician en la ffibrica Husqvarna. bajo 7. Responsabilidades del propietario. Si desea conservar sus derechos...
  • Page 27 Husqvarna autorizado mils cercano, llame a Husqvarna al 1-800-487-5951 de 8:00 a.m. a 8:00 p.m., Hora Estfindar del Este, o visite www.husqvarna.com. En caso de requerir asistencia o si tiene preguntas con respecto a esta Garantia limitada, puede comunicarse...
  • Page 28 Motores LCT en quitanieves y arados especificos, garantia traves de Husqvarna. ** Consulte la referencia 1 (b) de la declaracion de garantia. RZ - Dos (2) afios de garantia al consumidor, piezas y mano de obra, con red de distribuidores Hydro-Gear.
  • Page 29 Estos accesorios estaban disponibles cuando se produjo la segadora. No son facilitados junto al cortacesped. Tambi_n estb.n disponibles en la mayor[a de las tiendas de Husqvarna yen los centros de servicio. AIgunos de estos accesorios tal vez no se apliquen a su segadora.
  • Page 30 Lea estas instrucciones y este manual completamente antes de tratar de montar u operar su sega- dora nueva. IMPORTANTE: Este cortac_sped viene SIN ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la f_.brica con la excepci6n de aquellas partes que se de- jaron sin montar por razones de envfo.
  • Page 31 CON LOS REQUISITOS DE SEGURIDAD DE LA CPSC Las segadoras a motor, que se conducen desde la parte de atrb.s, rotatorias, Husqvarna, cumplen con los est_.ndares de seguridad del American National Standards Institute y de la U.S. Consumer Product Safety Commission.
  • Page 32 AJUSTE DEL MANDO Laoperaci6n de cualquier Ocasionalmente, el sistema de mando puede segadora puedehacerque "aflojarse", provocando una disminuci6n de la saltenobjetos extrahos dentrode susojos,Ioquepuedeproducir velocidad. Hay un torniquete en la parte trasera dahosgravesen_stos.Siempre de la sede del mando para apretar la tensi6n del cable.
  • Page 33 PARA CONVERTIR LA SEGADORA Su segadora fue enviada lista para usarse como acolchadora de capa vegetal. Para convertirla a una operaci6n de ensacado o de descarga: SEGADORAS CON DESCARGA TRASERA • Levantar la puerta trasera de cortac6sped y colocar los ganchos del armaz6n de la re- colectora de hierba en los soporte del quicio.
  • Page 34 AGREGUE GASOMNA ANTES DE HACER ARRANCAR • Llene el estanque de combustible hasta MOTOR la parte inferior del cuello de relleno del AGREGUE ACEITE estanque de gasolina. No Io Ilene demasiado. Su segadora fue enviada sin aceite en el motor. Use gasolina regular, sin plomo, nueva y lim- Para el tipo y el grado del aceite a utilizar, vea pia con el m[nimo de 87 octanos.
  • Page 35 CONSEJOS PARA SEGAR CONSEJOS PARA SEGAR Y ACOL- _PRECAUCl6N: No utilizar dispositivos anti- CHAR paja de la hoja en la segadora ya que estos iMPORTANTE: Para obtener el mejor accesorios son peligrosos, pueden dahar su rendimiento mantenga la caja de la segadora segadora y anular su garanfia.
  • Page 36 PROGRAMA ANTES DESPUES CADA CADA CADA ANTES DEL DE CADA DE CADA 25 HORAS O ALMACE- MANTEN|M|ENTO HORAS TEMPORADA HORAS NAMIENTO v" Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped Controlar los Neumaticos Controlar las Ruedas Motrices Limpiar la Segadora ..
  • Page 37 SEGADORA Ponga la cuchilla en el adaptador. IMPORTANTE: Para asegurar la instalacion ap- Siempre observe las reglas de seguridad cu- ropiada, posicione el agujero central de la cuchilla ando haga el mantenimiento. con la estrella del conjunto del adaptador. LLANTAS AsegOrese de que el borde de salida de •...
  • Page 38 RECOGEDOR DE ClaSPED Remueva la tapa del dep6sito del aceite; • El recogedor de c_sped puede ser rociado d_jela a un lado en una superficie limpia. con el agua de la manguera pero tiene que Incline la cortadora de c6sped pot este estar seco cuando se vaya a usar.
  • Page 39 Labio Plancha trasera LIMPIEZA IMPORTANTE: Para obtener el mejor rendimineto, mantenga la caja de la segadora sin acumulacion de cesped y basura. Limpie la parte de abajo de su segadora despues de cada uso. AI_PRECAUCION: Desconecte el alambre de la bujia y p6ngalo en donde no pueda entrar en contacto con _sta.
  • Page 40 Ileve cuchilla. su segadora a mas con su centro de servicio Vuelva la segadora a la posici6n vertical. Husqvarna o con un otro centro de servicio Instale la correa nueva en la polea de la cualificado. caja de engranajes.
  • Page 41 Ileve su segadora a contacto con de la fb.brica. Si cree que la velocidad alta su centro de servicio Husqvarna o con un otro regulada del motor necesita ajuste,contacto centro de servicio cualificado para repararla y/o su centro de servicio Husqvarna o con un otro ajustarla.
  • Page 42 SOLUCION DE PROBLEMAS - Yea ia seccion apropiada en el manual amenos este dirigido a un centro de servico Husqvarna. CAUSA CORRECCION PROBLEMA No arranca Filtro de aire sucio. Limpie/cambie el filtro de aire. Sin combustible. Llene el estanque de combustible.
  • Page 43 SOLUCION DE PFIOBLEMAS - Yea ia secci6n apropiada en el manual amenos este dirigido a un centro de servico Husqvarna. CAUSA PROBLEMA CORRECClON Falta de Eleve la altura de corte. Cuchilla desgastada, doblada fuerza o suelta. Eleve la altura de corte.
  • Page 44 ROTARY LAWN MOWER - - MODEL NUMBER 917,;380460, PRODUCT NUMBER ;38046 \ 52\ 42 ..
  • Page 45 HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917,380460, PRODUCT NUMBER 38046 PART PART PART DESCRiPTiON DESCRiPTiON DESCRiPTiON 427658 Upper Handle Assembly 419927 Mulcher Door 155377 Nut, Hex (Includes Foam Grip) 419946X428 Bracket, Grassbag 437517X498 Bar, Handle, Lower 420939 Engine Zone Control Cable...
  • Page 46 HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917,380460, PRODUCT NUMBER 38046...
  • Page 47 HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917,380460, PRODUCT NUMBER 38046 PART PART DESCRIPTION DESCRIPTION 430967 Drive Control Assembly 175262 Screw, Pan Head, (Includes Cable) Self-Tapping #10-24 x 1-1/4 Drive Cover 431649 Cable, Drive Control 421097 Locknut, Hex 429544X479...
  • Page 48 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 128M02-0120=F1 337_ ,,_,f= 62 _ L_ _ c_,_ (_ _}_)
  • Page 49 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 128M02-0120-F1 833A/t_i_; 108 _'j _¼_ f_J_ 202 ._jF ,,,,,._ 1386 _d_A ¢_ 1387_...
  • Page 50 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 128M02-0120-F1 1036 EMISSIONS LABEL 1211 1210 689 {_ 597 _ 745 I _ ', 8 f_-zs1 } I'- J >><./1,[;t LI,/f-B]]...
  • Page 51 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 128M02-0120-F1 121 CARBURETOR OVERHAUL 104'_ 163_ 127 ;.% 358 ENGINE GASKET 842 ._- :_? ]j_._ 1095 VALVE GASKET Engine Power Rating Information The gross power rating for individual gas engine models is labeled in accordance with SAE (So- ciety of Automo-tive Engineers) code J11940 (Small Engine Power &...
  • Page 52 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 128M02-0120=F1 PART PART DESCRiPTiON DESCRIPTION 590401 Cylinder Assembly Short Block 299819s Seal-Oil (Magneto Side) 796703 Manifold-intake 493279 Sump-Engine 796704 Gasket-intake 590411 Head-Cylinder 691650 Screw (intake Manifold) 799875 Gasket-Cylinder Head 691421 Housing-Rewind Starter 590395 Breather Assembly 697316 Rope-Starter...
  • Page 53 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 128M02-0120=F1 PART PART DESCRIPTION DESCRiPTiON 797521 690662 Nut (Flywheel) Gear-Timing 590454 691648 Armature-Magneto Screw (Brake) 691061 691031 Screw (Magneto Armature) SeaI-O Ring (Dipstick Tube) 799876 692047 Plug-Spark Dipstick/Tube Assembly 692390 493880s Wire-Stop Terminal-Spark Plug 590508 697338...
  • Page 54 S_RV|C_ NOTES...
  • Page 55 NOTAS S_RV|C|O...
