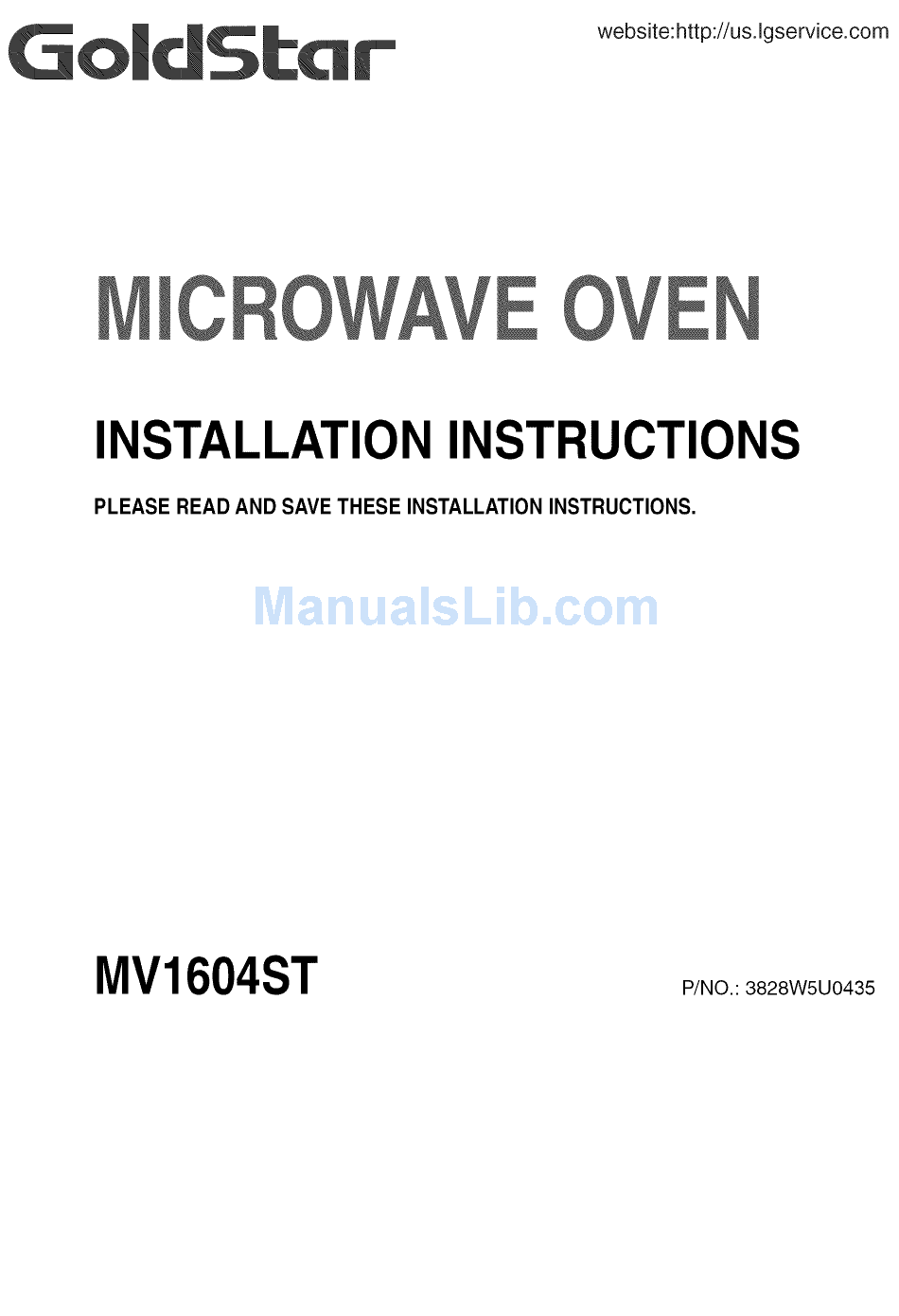

- Page 1 website:http://us.lgservice.com INSTALLATIONINSTRUCTIONS PLEASE READ AND SAVE THESE INSTALLATION INSTRUCTIONS. MV1604ST P/NO." 3828W5U0435...
-
Page 2: Your Safety First
Your Safety First BEFORE YOU START • Proper installation is the installer's responsibility! - Read the entire manual before you begin. The model number label is located on the oven front. See Figure 1. The mounting plate is located on back side of microwave oven. See Figure 2. NOTE: Vent grille appearance varies by model. - Page 3 Your Safety First • THIS APPLIANCE MUST BE GROUNDED! - If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
- Page 4 Your Safety First • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. - Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of minimum 2"x 4" wood studding and 3/8" thick drywall or plaster/lath. - ATTACH (See note on page 5) of the two lag screws supporting the oven to a vertical, 2"...
-
Page 5: Parts, Tools, Materials
Parts, Tools, Materials THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and (for roof venting or wall venting installation) One dark-colored mounting screw Not Actual Size (2 pieces must be assembled as (to hold the power cord) - Page 6 Parts, Tools, Materials You will need the following tools and materials for the installation: Carton or other heavy material such as a blanket for covering the counter top. Stud Finder or Thin Nail Clear Tape (for taping the templates to the wall) Keyhole Saw (for the power cord hole) Saber Saw (for cutting vent holes for roof...
-
Page 7: Step 1: Prepare The Electrical Connection
STEP 1: Prepare The Electrical Connection WARNING, AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 5. Upper Cabinet NOTE: The outlet should be on a circuit dedicated to the microwave oven (120V, 60 Hz., AC only) with a 15 or 20A fused electrical supply. -
Page 8: The Venting System
STEP 2: Prepare The Venting System NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 10, page 9. WARNING THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways. - Page 9 STEP 2: Prepare The Venting System Standard Fittings NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper's sticking. Duct Length The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed 140 feet.
-
Page 10: Step 3: Prepare The Venting Blower
STEP 3: Prepare The Venting Blower Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if you want wall-venting or room-vented (recirculating) installation. WARNING ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT. - Page 11 STEP 3: Prepare The Venting Blower WALL-VENTED INSTALLATION: 1. Remove one blower unit mounting screw and one or several blower plate mounting screw(s). Remove the blower plate from cabinet. See Figure 14. Plate 2. Carefully lift the blower unit out of the microwave oven. Blower Unit 3.
- Page 12 STEP 3: Prepare The Venting Blower ROOM-VENTED (Recirculating) INSTALLATION: BlowerPlate 1. Remove one blower unit mounting screw and ... ! Mounting Screw one or several blower plate mounting screw(s). B,ower P,ate Remove the blower plate from cabinet. See Back Plate Figure 20.
- Page 13 STEP 4: Prepare The Wall & Upper Cabinet WARNING, To avoid personal injury or property damage, do not attempt to install this microwave oven if you cannot find a wall stud. Consult a carpenter or contractor. Measure And Track/Tape Up The Templates 1.
- Page 14 STEP 4: Prepare The Wall & Upper Cabinet To avoid risk of personal injury, electrical shock or death: • Note where electrical outlets and electrical wires are before you drill into the wall. • Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
-
Page 15: Step 5: Install The Mounting Plate
STEP 5: Install The Mounting Plate The Oven Must Be Connected To At Least One 3/16 Hole on Studs Wall Stud. 5/8 Hole on Drywall Only Minimum 66" From the Floor 1. Draw a vertical line on the wall at the center of the 30" wide space. - Page 16 STEP 5: Install The Mounting Plate For Wall-Vented • Make the box cutout for the rear wall duct. - 1-piece mounting plate: Using a pencil, put dots through slots F and G, and through holes H and I. Remove the mounting plate and draw lines extending through the points.
- Page 17 STEP 6: Attach The Oven To The Wall _WARNING,_ To avoid risk of personal injury or property damage, you will need two people to install this microwave oven. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 27) at the bottom of the mounting plate.Reaching through upper cabinet, thread power supply cord through the power supply cord hole in the bottom of the upper cabinet.
- Page 18 STEP 6: Attach The Oven To The Wall 5. Roof venting installation: See Figure 33. Install ductwork through the vent opening in the upper cabinet. Complete the venting system through the roof according to the method needed. See Prepare The Oamp Venting System STEP 2.
