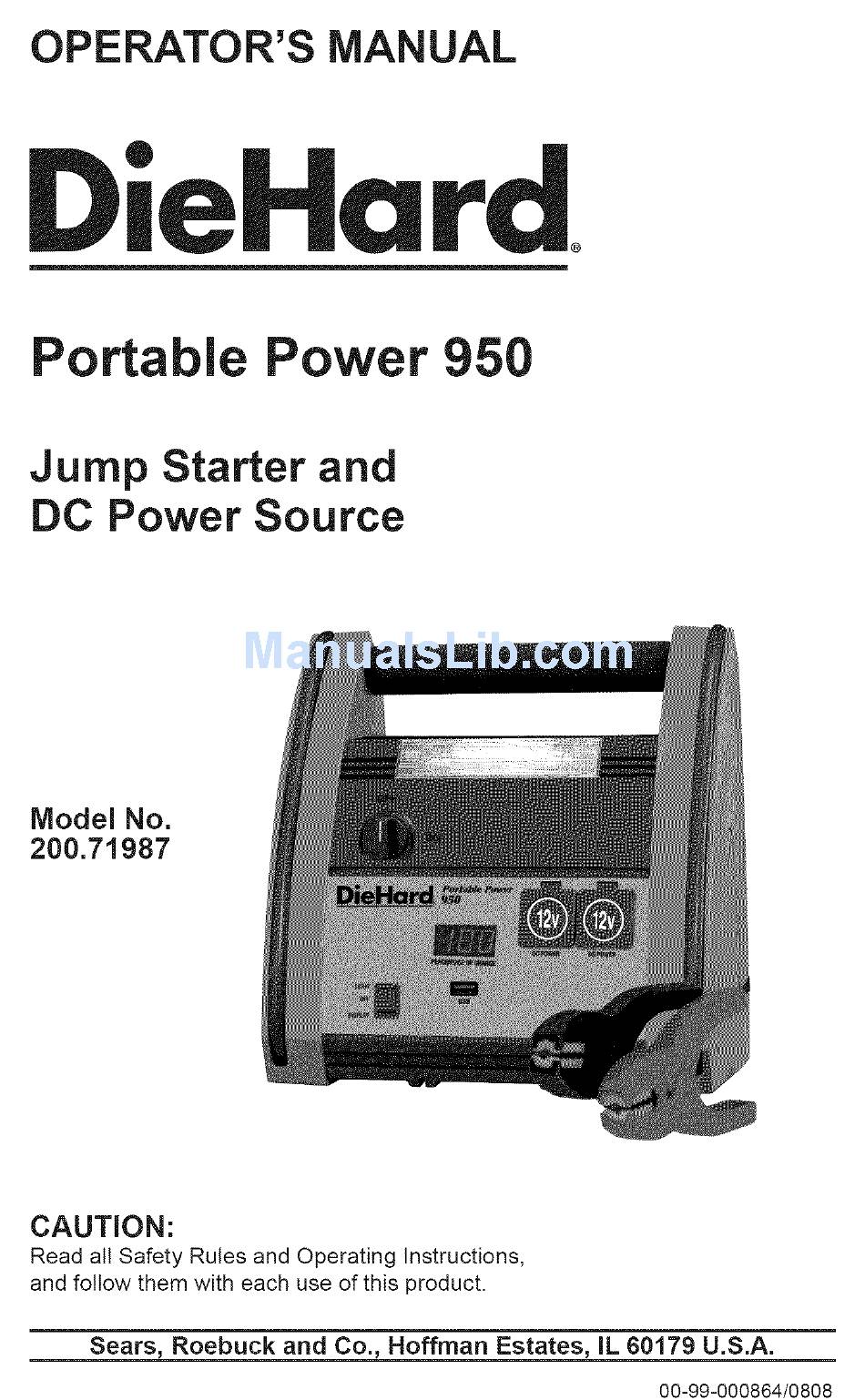

OPERATOR'S MANUAL

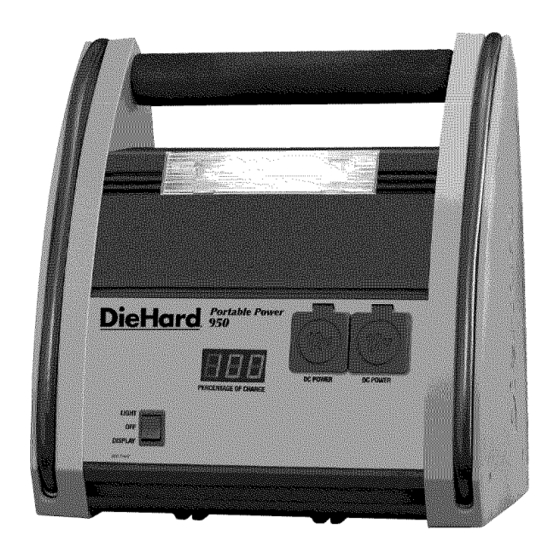

Portable Power 950

Jump Starter and

DC Power Source

Model No.

200.71987

CAUTION:

Read all Safety Rules and Operating Instructions,

and follow them with each use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

00-99-000864/0808

Need help?

Do you have a question about the Portable Power 950 and is the answer not in the manual?

Questions and answers

Summary of Contents for DieHard Portable Power 950

Page 1 OPERATOR'S MANUAL ® Portable Power 950 Jump Starter and DC Power Source Model No. 200.71987 CAUTION: Read all Safety Rules and Operating Instructions, and follow them with each use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 00-99-000864/0808...
Page 2 DIEHARD ONE-YEAR FULL WARRANTY When operated and maintained according to all supplied instructions, if this DieHard product fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Sears store or other DieHard outlet in the United States for free replacement.
Page 3 iMPORTANT: CHARGE iMMEDiATELY AFTER PURCHASE IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL. Charge the 950 internal battery immediately upon purchase, every 30 days and after every use. Use in a welt ventilated space. Contains a sealed, non-spitlable lead-acid battery. Must be disposed of properly.
Page 4 10. Wal! charger IM PORTANT: '_CHARGE iMMEDiATELY AFTER PURCHASE '_KEEP FULLY CHARGED. This Portable Power 950 comes with a sealed, non-spillable DieHard maintenance-free lead-acid battery. This internal battery is specifically designed to deliver high power jump-starting as well as repetitive deep cycling performance.
Page 5 Check t heinternal battery's charge l evel b ypressing theswitch marked DISPLAY. TheDigital Display wiltshow thebattery's percentage. Charge i f under 1 00% NOTE: Internal battery's percentage is most accurate when thePortable Power 950hasbeen disconnected from alldevices andcharging sources for1-24hours. Tocharge, plug the(external) wall c harger cord intothesocket onthe back ofthe950.
Page 6 CAUTION: Ifyouhave connected theclamps backwards, anaudio alarm will s ound. DONOT turn theON/OFF switch totheONposition. This could cause serious damage. Reverse theconnections andtheaudio alarm wilt stop. Turn ONtheJUMP START O N/OFF switch and then turn keyand crank theengine. Iftheengine d oes not s tart w ithin 5-8seconds, stop cranking and wait a tleast 1 minute b efore a ttempting tostart v ehicle a gain.
Page 7 12V DC Electrical Device Run=Time Chart Appliance Type Estimated Power Estimated Time* Fluorescent Lights, Cellular Phones 4 Watts 40 Hours Radios, Depth Finders, Fans 9 Watts 21 Hours Camcorders, DVD Players, Spotlights 15 Watts 12 Hours Electrical Tools, Bilge Pumps 24 Watts 7 Hours Electric Coolers...
Page 8 Remove the negative (first) and positive nuts and bolts securing the cable to the battery. Push cables to the side and carefully slide battery out of the 950. Reverse steps for assembly. Make sure that the nuts and bolts securing the cables are tight.
Page 9 Internal Battery Type DieHard Maintenance-free AGM Lead-acid Nominal Voltage 12v DC Capacity 18 Ah DC Power Outlet (Max. Continuous Load) 15A With Automatic Circuit Breaker Reset Built-in Light Bulb (Replaceable) 5w/12v DC (Base type BA9S) Jumper Cables 4-gauge AWG, 24 Inches Dimensions (H xW x D) 12 H x 11 x 10.5 Inches...
