DieHard 28.71688 Operator's Manual

DieHard 28.71688 Operator's Manual

Jump starter and ac/dc/usb power source

Advertisement

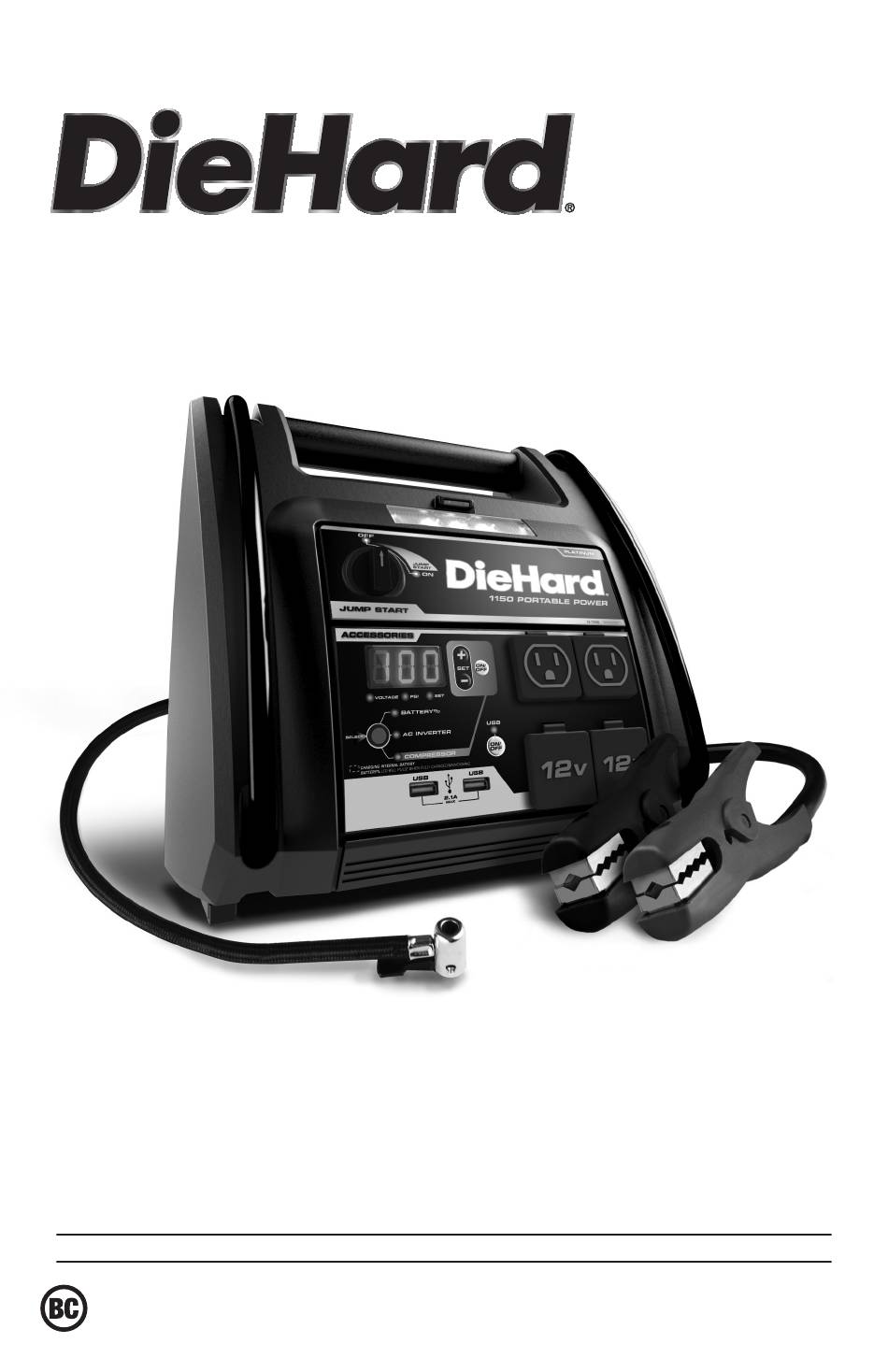

OPERATOR'S MANUAL / MANUAL DEL USUARIO
Jump Starter and AC/DC/USB Power Source
Arrancador y CA / CC / USB fuente de alimentación
CAUTION:
Read and follow all safety
rules and operating instructions
before every use of this product.
SAVE THESE INSTRUCTIONS.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Model / Modelo:
28.71688
Lea y siga todas las reglas
de seguridad e instrucciones de uso
antes de cada uso de este producto.
GUARDE ESTAS INSTRUCCIONES.
ATENCIÓN:
0099001442-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28.71688 and is the answer not in the manual?

Questions and answers

Nikita
June 2, 2025

Trying to use the AC outlet but it's not working. It instantly switches over to compressor. How to fix this issue so I can use my AC outlets?

User image 683da69f99fb5
2 comments:
Mr. Anderson
June 2, 2025

To fix the AC outlet issue on your DieHard 28.71688 that switches to compressor, follow these steps:

1. Ensure the battery clips are securely stored in their holders.
2. Open the protective cover of the AC power outlet.
3. Make sure the 110V AC device is turned OFF before plugging it in.
4. Plug the device into the AC outlet.
5. Press the Select button to switch to AC power mode.

Note: This inverter uses a modified sine waveform. Check your device manual to confirm it is compatible. Also, use a 16 AWG or larger extension cord no longer than 50 feet for best results.

This answer is automatically generated

Nikita
June 2, 2025

@Mr. Anderson I have done all of these steps. As soon as the AC light comes on it blinks and switches to compressor mode. I'm not getting any power to my device. I've tried multiple devices and nothing is working with the AC and it still keeps instantly switching to compressor mode. I'm not sure what is wrong with it. Everything else seems to work fine.

Summary of Contents for DieHard 28.71688

  • Page 1 OPERATOR’S MANUAL / MANUAL DEL USUARIO Jump Starter and AC/DC/USB Power Source Arrancador y CA / CC / USB fuente de alimentación Model / Modelo: 28.71688 CAUTION: ATENCIÓN: Read and follow all safety Lea y siga todas las reglas rules and operating instructions de seguridad e instrucciones de uso before every use of this product.
  • Page 2 DIEHARD ONE-YEAR FULL WARRANTY ® When operated and maintained according to all supplied instructions, if this DieHard ® product fails due to a defect in material or workmanship within 1 year from the date of purchase, return it to any DieHard outlet in the United States for free replacement.
  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................4 PERSONAL SAFETY PRECAUTIONS .................. 4 FEATURES ..........................5 CHARGING THE INTERNAL BATTERY OF THE PORTABLE POWER ........ 5 USING THE PORTABLE POWER ..................6 MAINTENANCE AND CARE ....................8 TROUBLESHOOTING......................8 BEFORE RETURNING FOR REPAIRS ................. 9 REPLACEMENT PARTS/ACCESSORIES ................
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. WARNING – RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE PORTABLE POWER. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of a battery.
  • Page 5: Features

    FEATURES 1. Jump start On/Off switch 2. Built-in light and switch 3. 110V AC household power outlets (2) 4. 12V DC power outlets (2) 5. Cables with clamps 6. USB port ON/OFF button 7. USB ports (2) 8. Air compressor hose 9.
  • Page 6: Using The Portable Power

    USING THE PORTABLE POWER DIGITAL DISPLAY 4. Press the light switch again. The light will flash. To check the jump starter’s internal battery status, push the Select button. The display 5. When finished, press the light switch again, will show the percent of charge of the to turn off the light.
  • Page 7 USING THE USB PORT ESTIMATED TIME FOR INFLATING The USB port provides up to 2.1A at 5V DC. Vehicle Tires 13"-16" 5-8 minutes 1. Ensure that the battery clamps are Bike Tires 1-3 minutes securely clipped on the storage holders. Sports Balls 30 seconds 2.
  • Page 8: Maintenance And Care

    IMPORTANT: This inverter uses a modified POWERING A 110V AC DEVICE sine waveform, which is not quite the same 1. Ensure the battery clips are securely on as power company electricity. For the the storage holders. following devices, we strongly recommend 2.
  • Page 9: Before Returning For Repairs

    PROBLEM POSSIBLE CAUSE REASON/SOLUTION The Portable Power won’t The 12V device is not Turn on the 12V device. power my 12V device. turned on. The Portable Power’s battery Check the battery charge is not charged. status by pressing the button on the front of the unit.
