P,_PLACING THE RIBBON, ETC.

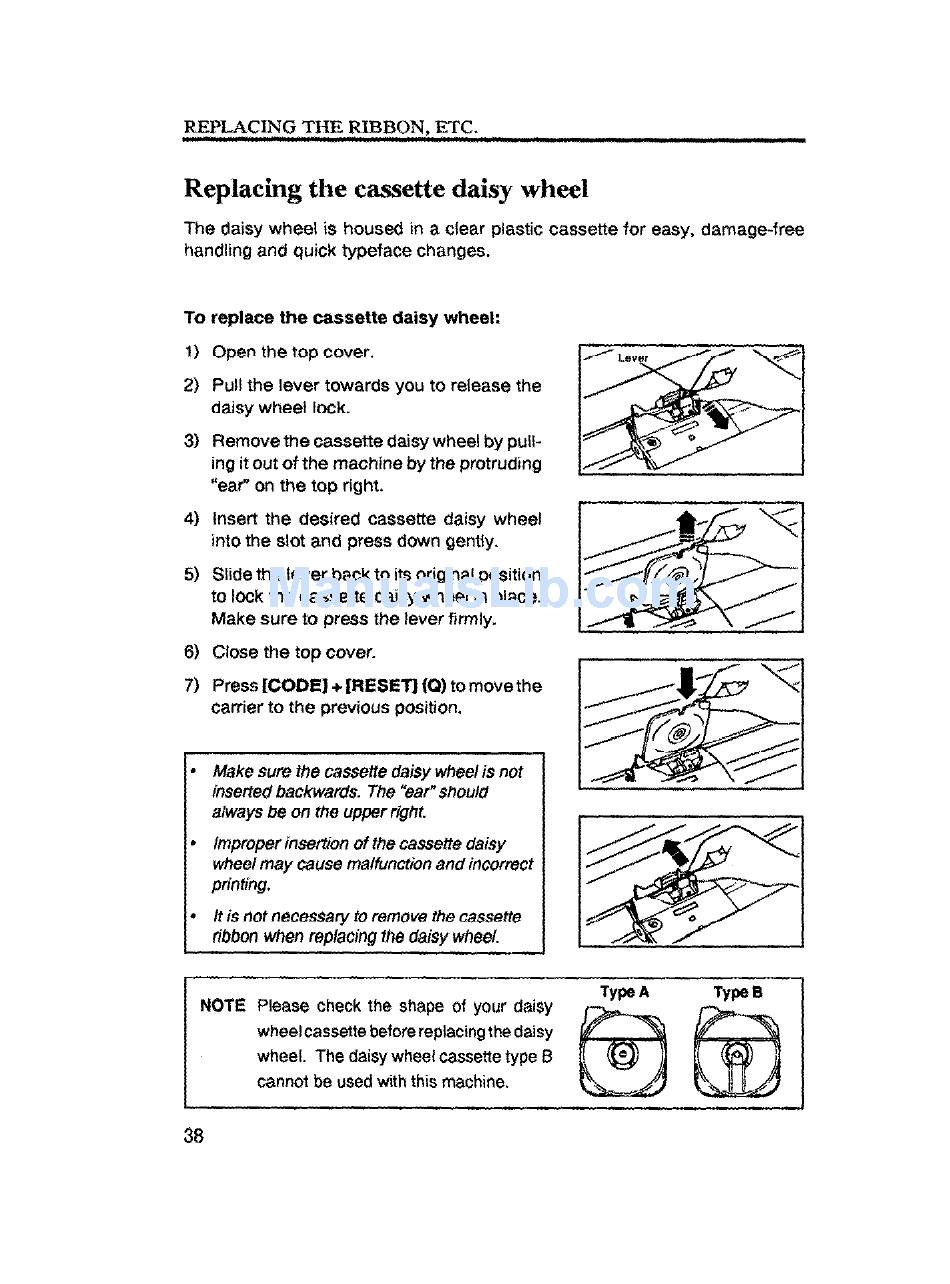

Replacing the cassette daisy wheel
The daisy wheel is housed in a clear plastic cassette for easy, damage-free
handling and quick typeface changes.
To replace the cassette daisy wheel:
1) Open the top cover,
2) Pull the lever towards you to release the
d_isy wh_.ellock.
3) Remove the cassette daisy wheel by pull-
ing it out of the machine by the protruding
"ear" on the top right,
4) Insert the desired cassette daisy wheel
into the slot and press down gently,
5) Slide the lever back to its original position
to lock the cassette daisy wheel in place.
Make sure to press the lever firmly.
6) Close the top cover.
7) Press [CODE] + [RESET] (Q) to move the
carrier to the previous position.
Make sure the cassette daisy wheel is not
inserted backwards. The "ear" should
always be on the upper right,
Improperinsertion of the cassette daisy
wheel may cause malfunction and incorrect
printing,
It is not nece_sat3/ to remove the cassette
ribbon when replacingthe daisy wheel.
NOTE Please check the shape of your daisy
wheelcassettebeforereplacing the daisy
wheel. The daisy wheel cassettetype B
cannot be used with this machine,
TypeA TypeB
,,,,, ,,,,,, ,,,,,,,
38
