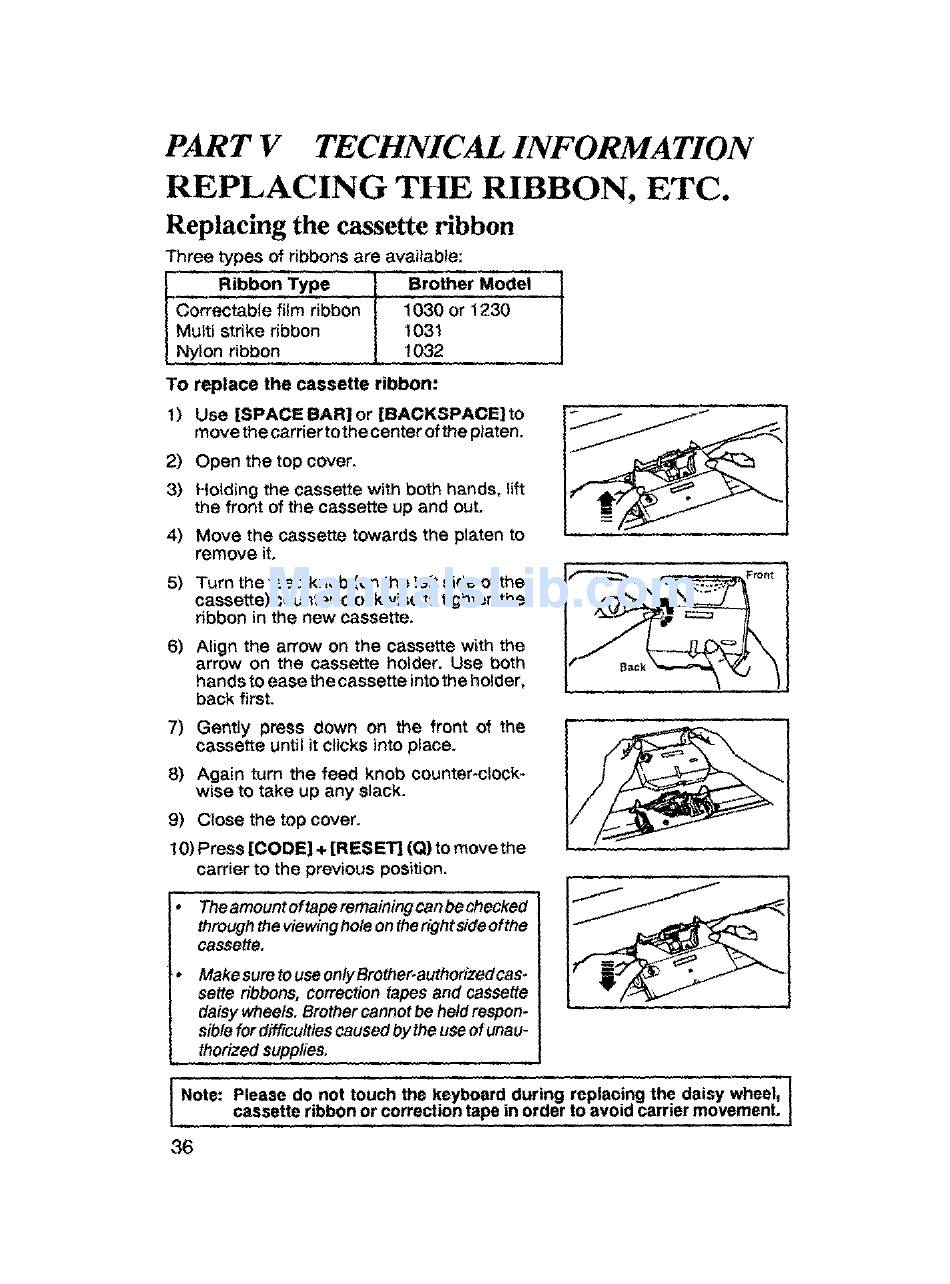

PART V TECHNICAL INFORMATION
REPLACING THE RIBBON, ETC.
Replacing the cassette ribbon
Three types of ribbons are available:
Ribbon Type Brother Model
i , , ,,
Correctable film ribbon 1030 or 1230
Multi strike ribbon 1031
Nylon ribbon 1032
To replace the cassette ribbon:
1) Use ]SPACE BAR] or ]BACKSPACE] to
move the carrier tothecenter of the platen.
2) Open the top cover.
3) Holding the cassette with both hands, lift
the front of the cassette up and out.
4) Move the cassette towards the platen to
remove it.
5) Turn the feed knob (on the loft side of the
cassette) counter-clockwise to tighten the
ribbon in the new cassette.
6) Align the arrow on the cassette wRh the
arrow on the cassette holder. Use both
hands to ease the cassette intothe holder,
back first.
7) Gently press down on the front of the
cassette until it clicks into place.
8) Again turn the feed knob counter-clock-
wise to take up any slack.
9) Close the top cover.
10) Press [CODE] + [RESET] (Q} to move the
carrier to the previous position,
, , ,,,, , ,,,, ,, ,,,, . ,,,,,,,
Theamount of taperemaining can be checked
through the viewing holeon theright sideofthe
cassette.
I lll
_Front I
Make sure to useonlyBrother.authorized cas.
sstte ribbons, correction tapes and cassette
daisy wheels. Brother cannotbe held respon-
siblefor difficulties caused by the use of unau-
thorized supplies.
, , , ,,, ,,,,,,
Nots: Please do not touch the keyboard during replacing the daisy wheel, I
cassette ribbon or correction tape in order to avoid carrier movement.
I
