MD-HN & MD-HE Water Filters
Part No. 255349 & 255351
MD-HN Cartridge
P/N 255349 (6 pack)
Replaces P/N EV961004
BENEFITS
• Reduces chlorine taste and odor, bromine* and other off
tastes and odors that can spoil food and beverages
• Reduces dirt larger than one-half micron in size
• Exclusive 1/2 micron precoat filtration removes >99% of
asbestos fibers, and >99.95% of cysts such as Cryptospo-
ridium, Giardia, Toxoplasma and Entamoeba
• Inhibits limescale formation* in pipes and tanks of coffee
makers and icemakers, increasing the life of equipment
INSTALLATION TIPS
• Choose a mounting location which is suitable to support
the full weight of the system when operating
• Use a 3/8" water line for the MD single head
• Use a 3/4" water line for the MD dual and triple heads
• Do not braze/solder fittings into head
• Never use a saddle valve for connection
• Do not exceed service flow rate (refer to other side)
• Flush filter cartridges by running water to drain at full
flow through the flushing valve for 5 minutes
P/N 169110 (1 Pack)
Replaces P/N EV927401
Designed for use with
MD-HN & MD-HE filter

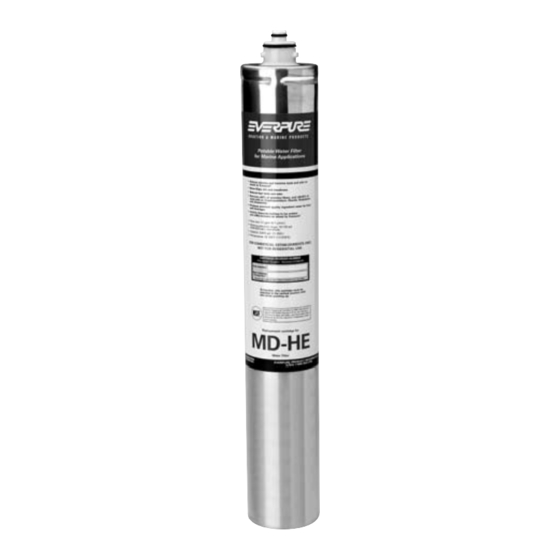

MD-HE Cartridge
P/N 255351 (6 pack)
Replaces P/N EV962304
Premium quality water filtration created
for use in Marine Applications.
MD Single Head
cartridges.
MD Triple Head Assembly*
MD-HN & MD-HE filter cartridges.
OPERATION TIPS
• Change cartridges:
- on a regular 6 month preventative maintenance basis
- when the pressure gauge indicates a pressure less
than 10 psi when the system is operating
Always flush the filter cartridges after changing.
QUICK-CHANGE MD HEADS
• Cartridge heads are extremely durable and have corro-
sion-resistant exterior finishes to withstand severe marine
environments.
• Each quick-change head or head assembly has its own
built-in water shut-off valve and steel mounting bracket.
• Multiple heads are now molded as one piece to minimize
leak points and improve strength.
* As tested by Everpure
MD Dual Head Assembly*
P/N 169111 (1 Pack)
Replaces P/N EV927402
Designed for use with
MD-HN & MD-HE filter cartridges.
P/N 169112 (1 Pack)
Replaces P/N EV927403
Designed for use with

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD-HE Water Filters 255349 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Everpure MD-HE Water Filters 255349

  • Page 1 Replaces P/N EV927403 Designed for use with MD-HN & MD-HE filter cartridges. OPERATION TIPS • Change cartridges: - on a regular 6 month preventative maintenance basis - when the pressure gauge indicates a pressure less than 10 psi when the system is operating Always flush the filter cartridges after changing. QUICK-CHANGE MD HEADS • Cartridge heads are extremely durable and have corro- sion-resistant exterior finishes to withstand severe marine environments. • Each quick-change head or head assembly has its own built-in water shut-off valve and steel mounting bracket. • Multiple heads are now molded as one piece to minimize leak points and improve strength. * As tested by Everpure P/N 169111 (1 Pack) Designed for use with...
  • Page 2: Operating Weight

    ©2006 Pentair Filtration, Inc. ⁄ "D 11 lbs 16 lbs International Phone 920.457.9435 International Fax 920.457.2417 DIMENSIONS ⁄ " 16" (HN) 22" (HE) 19" 19" (HN)** 25" (HE)** 23" 19" (HN)** 25" (HE)** ** T he Dual and Triple Head Assemblies are Not Performance Tested or Certified by NSF. Allow 2 ⁄ " additional height for cartridge change on all systems. The MD-HN and MD-HE are Tested and Certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine, Taste and Odor, and Particulate Class I. Standard 53 for the reduction of Asbestos, Cysts, and Turbidity. Pentair Filtration, Inc. 502 Indiana Avenue - P.O. Box 1047 Sheboygan, Wisconsin 53082-1047 Phone 866.873.7506 Fax 888.203.7361 www.everpure.com 340026 NO06...
