Yard Machines Y2500 Operator's Manual

Quick Instructions to
Assemble Trimmers
For complete instructions, refer to the
Assembly Instructions section of this
manual.
Quick Instructions
to Start Engine
For complete instructions, refer to
Starting/ Stopping Instructions section
of this manual.
Quick Instructions to
®
Replace SplitLine
Trimmer Line
®
Replacement SplitLine
Part #49U0134K953
For single line installation,
refer to Line Installation
section of this manual.
For replacement spool
installation, refer to Installing a
Prewound Reel section of this manual.
Wind line tightly in direction of arrow.
Split other end of SplitLine
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING THE UNIT.
NEED HELP?
PART NO. 769-05372 P00
Operator's Manual
Read and understand all instruction, warning and danger labels on the unit.
Slot
Bracket
Slide the shield's slot onto the
mounting bracket. Rotate the
shield onto the shaft. Push
square bolt through shield
and bracket. Tighten washer
and wing nut onto bolt.
Press primer bulb 10 times.
Move blue choke
lever to Position 2.
Push 6"-7" ends into
® 0.080" holding slots.
back 6"-7".
CALL 1–800-800-7310 IN U.S. OR 1–800–668–1238 IN CANADA
DO NOT RETURN THIS PRODUCT
For Assistance, please call 1-800-800-7310 (U.S.) or 1-800-668-1238 (Canada)
or visit www.mtdproducts.com or www.mtdproducts.ca
Put D-handle on shaft.
While firmly holding the upper
Move handle a minimum
boom, push it straight into the
6 inches away from shaft
lower boom and coupler. Tighten
grip. Insert clamp bolt and
the allen bolt using the 3/16 allen
tighten the wing nut.
wrench provided until the lower
swedge boom is firmly in place.
Put blue choke lever Crouch in starting
in Position 1. position.
Pull the rope 3 to 5 While continuing to
times to start. Run squeeze the throttle
engine for 30-60 control, move the blue
seconds to warm up. choke lever to Position 3.
Spool
Spring
Inner
Reel
Bump
Knob
Insert 10' of 0.080"SplitLine
Unscrew bump knob
counterclockwise. Remove hole in top of reel. Pull most of line
inner reel and spring. through hole until 3"-4" remains.
Insert or slide lines into the
eyelets in spool. Insert spring
and reel into spool.

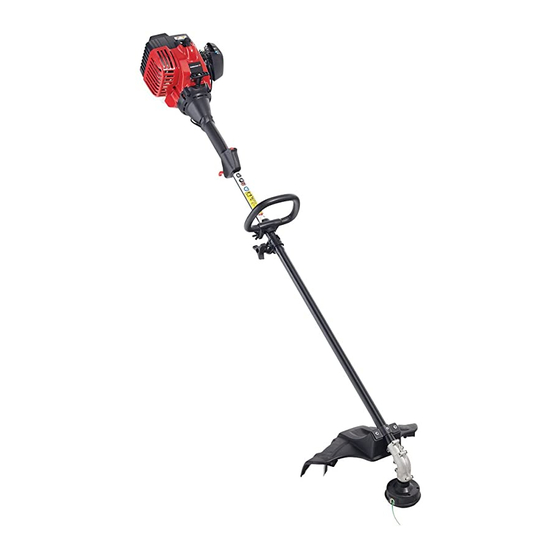

Y2500
2-Cycle Trimmer
40:1
Min. 6"
1 Gallon
Mix thoroughly in a separate fuel can:
– 3.2 fl. oz. of 2-cycle engine oil
– 1 gallon of unleaded gasoline
Place the unit on a level surface. Fill fuel tank.
NOTE: Do not mix directly in the engine fuel tank.
SQUEEZE and HOLD throttle Pull the rope
control for ALL further steps. 5 times.
DIDN'T START?
Repeat these instructions.
If engine still fails to start, refer
to the Starting/ Stopping
Continue warming for an instructions section of this
manual for additional starting
additional 60 seconds.
and troubleshooting information.
During this time the unit
may be used.
3"-4"
®
through Bend short end and push it
into the other hole. Pull tight.
Pull lines firmly to release Hold the inner reel in place.
from holding slots. Tighten Bump Knob
clockwise.
3.2 oz
5 X
(10/09)
