Everpure HFC-10 System EV9100-91 Installation And Operation Manual

Provides simple, efficient deliming of commercial ware washing
equipment, utilizing ScaleKleen™, Everpure's proprietary scale remover.
BENEFITS
• Permanently plumbed in the hot water feed line before booster heater and
dishwasher.
• Drastically reduces maintenance teardowns due to limescale accumulation.
• Assures high efficiency of heating elements by removing limescale deposits.
• Utilizes Everpure's proprietary foodgrade delimer ScaleKleen
odors, no burned skin or clothing, environmentally safe.
• High grade re-enforced nylon components forlong life.
• Extends life of equipment.
APPLICATIONS
• Flash steamers
• Conventional steamers
• Combi-ovens
• Coffee/espresso machines
DEMLIMING SCHEDULE
Dishwasher Operation (Hours)
Water Hardness
Soft, 0-3 gpg
Moderately Hard, 3-7 gpg
Very Hard, > 15 gpg
To determine water hardness and frequency of deliming, follow instructions
on hardness test strip package and compare to hours of operation.
SPECIFICATIONS
Dimensions: 12 ⁄ "L x 5 ⁄ "W x 5
1 1 1
2 2
(allow extra 4" underneath for shell removal)
Inlet connection: 1/2" MPT
Pressure (Minimum - Maximum): 10 - 125 psi (non-shock)
Maximum temperature: 160°F
Shipping weight: 5 lbs.
Operating weight: 7 lbs.
INSTALLATION
Note: System must be installed on inlet water line to equipment.
Everpurerecommends the installation of a by-pass for de-liming.
1. Turn off power to equipment and drain water from system, if necessary.

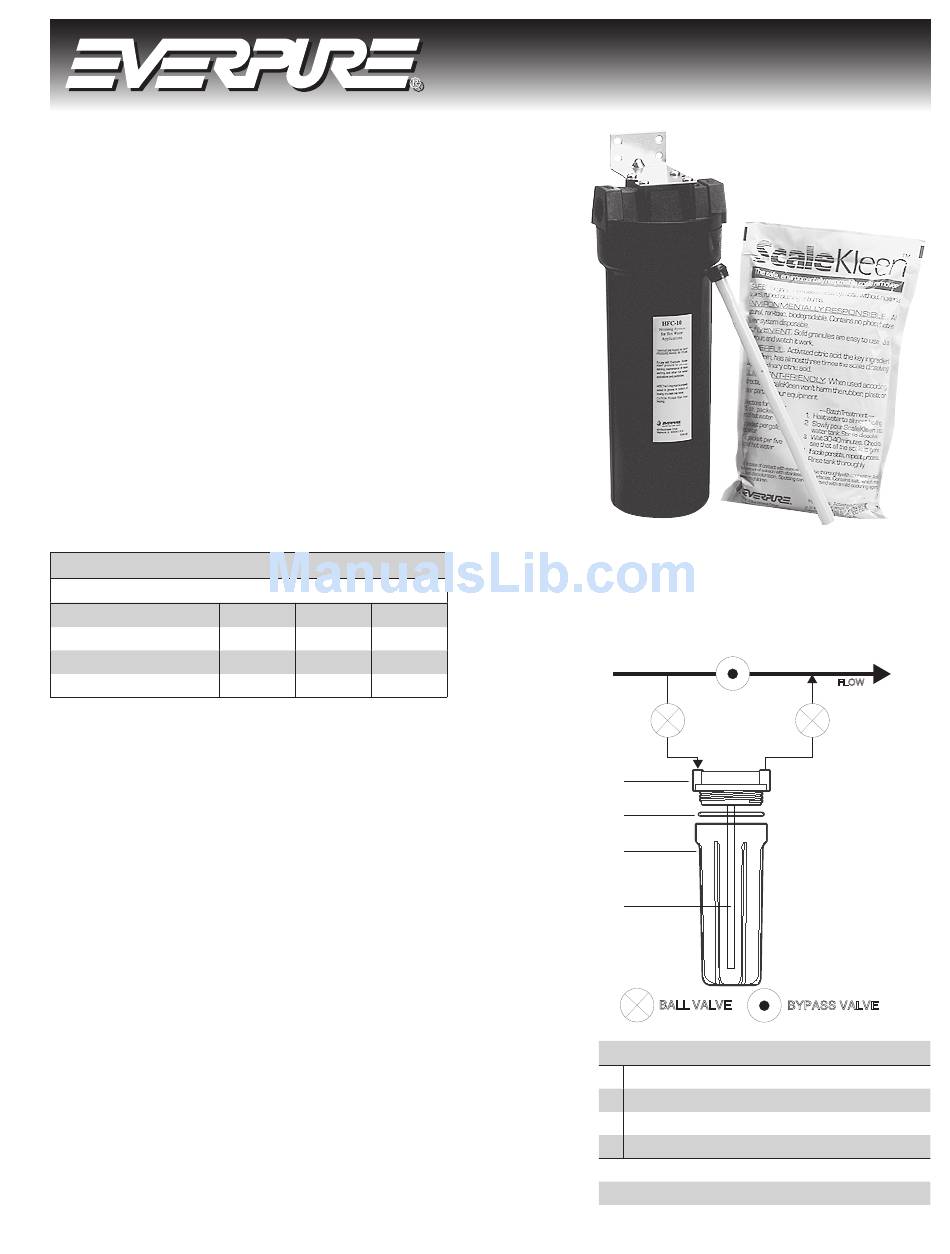

2. Provide appropriate tee connections for inlet and outlet connections. Refer to the
diagram at right.
3. Install a bypass valve (buyer provided) between the inlet and outlet connections.
Refer to the diagram at right.
4. Install ball valves to inlet and outlet connections on the HFC-10 head assembly.
NOTE: Always use a good grade of pipe dope or teflon tape on connections.
5. Make appropriate connections to ball valves.
Printed in U.S.A.
2-8 8-14 14-20
30 days 24 days 18 days
24 days 18 days 12 days
9 days 6 days 3 days
⁄ "D
2
Installation and Operation Guide
HFC-10 Deliming System for Ware Washing Equipment
— no offensive
™
SPARE PARTS:
1.
2.
3.
4.

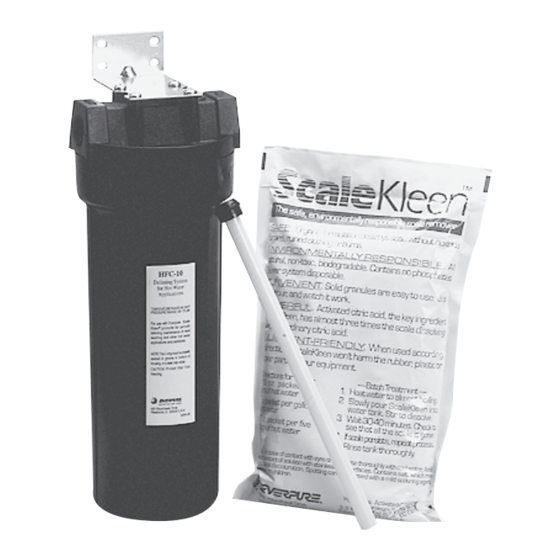

System Part No. EV9100-91
Includes:
(1) 2.2 lb. Scalekleen package
(1) Diptube assembly
(1) Hardness Test Strip
1
2
3
4
BALL VALVE
BYPASS VALVE
EV3095-02: Head Assembly
EV3095-04: Gasket
EV3095-03: Sump Assembly
EV3093-35: Dip Tube
EV3095-44: Bracket Kit (bracket, nut, mtg. screws)
EV9796-01: ScaleKleen 2.2 lb. pkg. (4 pack)
EV3024-94: Hardness Test Strip
FLOW
EV3095-06E AU05
