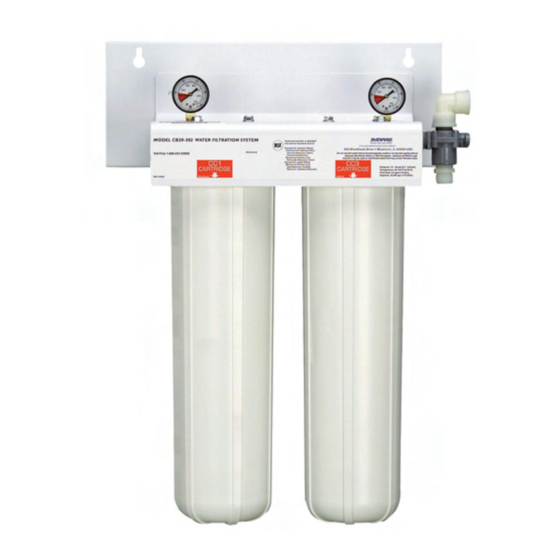

Everpure Water Filter CB20-302E Specification Sheet

High flow, high capacity carbon filter for chlorine and chloramine
reduction
I N S T A L L A T I O N T I P S
Choose a mounting location which is suitable to
support the full weight of the system when
operating (60 lbs.)
3/4" FNPT inlet and outlet connection
Install on cold water lines only
Do not install where unit is exposed to direct
sunlight
Allow a minimum of 4" clearance under the filter
to facilitate cartridge change
Do not braze/solder fittings into head
Never use a saddle valve for connection
EV9100-32
C B 20- 302E W ate r Fi l t er
CB20-302E System: EV9100-32 CB20-302E System: EV9100-32
302 Replacement Cartridge Kit:
302 Replacement Cartridge Kit:
EV9105-21
EV9105-21
Kit contains: (1) CC1E replacement cartridge Kit contains: (1) CC1E replacement cartridge
and (1) CC3E replacement cartridge
and (1) CC3E replacement cartridge
O P E R A T I O N T I P S
Change cartridges on a regular 6 month
preventative maintenance program
Change cartridges when capacity is reached
(20,000 gallons) or when flow becomes too slow
Change cartridges when the difference between
the two pressure gauges is greater than or equal to
20 psi
Service flow rate must not exceed 5.0 gpm
After installing CC1E cartridge, flush at full flow
for 5 minutes. Install CC3E cartridge and flush
system for 10 minutes
B E N E F I T S
Improves the taste and consistency of beverages
and ice by reducing chloramine, chlorine and
other off-tastes and odors
CC1E extended service cartridge contains radial
flow granular activated carbon (GAC)
CC3E cartridge fine filters water by reducing
sediment and dirt larger than 1/2 micron in size
Reduces asbestos fibers and cysts such as
Cryptosporidium and Giardia
High pressure housing includes head with
pressure relief valve, mounting bracket and bowl
Integral inlet and outlet pressure gauge monitors
operation
NSF Certified under NSF/ANSI Standards 42
and 53
A P P L I C A T I O N / S I Z I N G
For high flow, high volume foodservice
applications requiring chloramine reduction
Capacity: 20,000 gallons (75,700L)
Up to 5 gpm (19 Lpm) flow rate
For coffee and ice applications, add scale
reduction feeder at outlet of system. Part no.
EV9798-45
