Summary of Contents for KitchenAid KECC567HSS2
Page 1

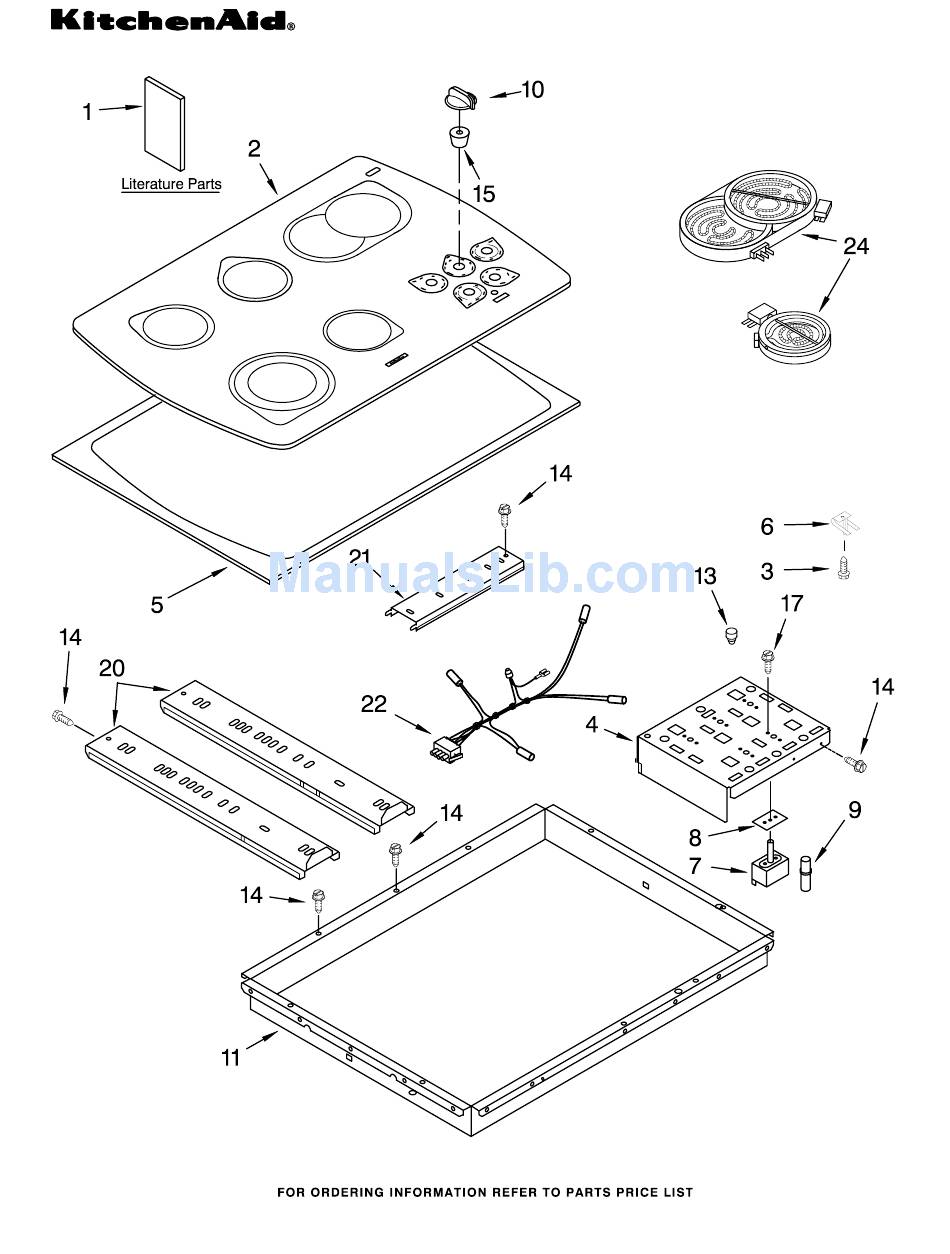

COOKTOP PARTS 36" ELECTRIC BUILT−IN For Model: KECC567HSS2 COOKTOP (Stainless Steel) 9−00 Litho in U.S.A. (RS) Part No. 8185582...
Page 2
COOKTOP PARTS For Model: KECC567HSS2 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts LIT3192799 Installation Instructions LIT3191797 Wiring Diagram LIT8284718 Use & Care Guide LIT3191638 Safe Cooking Tips 4455591 Cooktop, Assembly 246119 Screw 4455420 Bracket, Switch Mounting 8284628 Frame, Cooktop 3191791 Spring Locator(10) 246119 Screw (8) Switch, Infinite 3191049 Use W/1500W...
Page 3
MISCELLANEOUS PARTS For Model: KECC567HSS2 (Stainless Steel) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 3172515 Mtg. Hardware Kit 3192408 Bracket, Support SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga.
