CABINET PARTS
REFRIGERATOR
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White)
(Biscuit)
(Black)
(Stainless Steel) (Monochromatic (Monochromatic
Stainless)
Stainless)
03−07 Printed In U.S.A. (mat)
Part No. W10132055 Rev A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRS25CSBL02 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSRS25CSBL02

Summary of Contents for KitchenAid KSRS25CSBL02

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) 03−07 Printed In U.S.A. (mat) Part No. W10132055 Rev A...

  • Page 2: Cabinet Parts

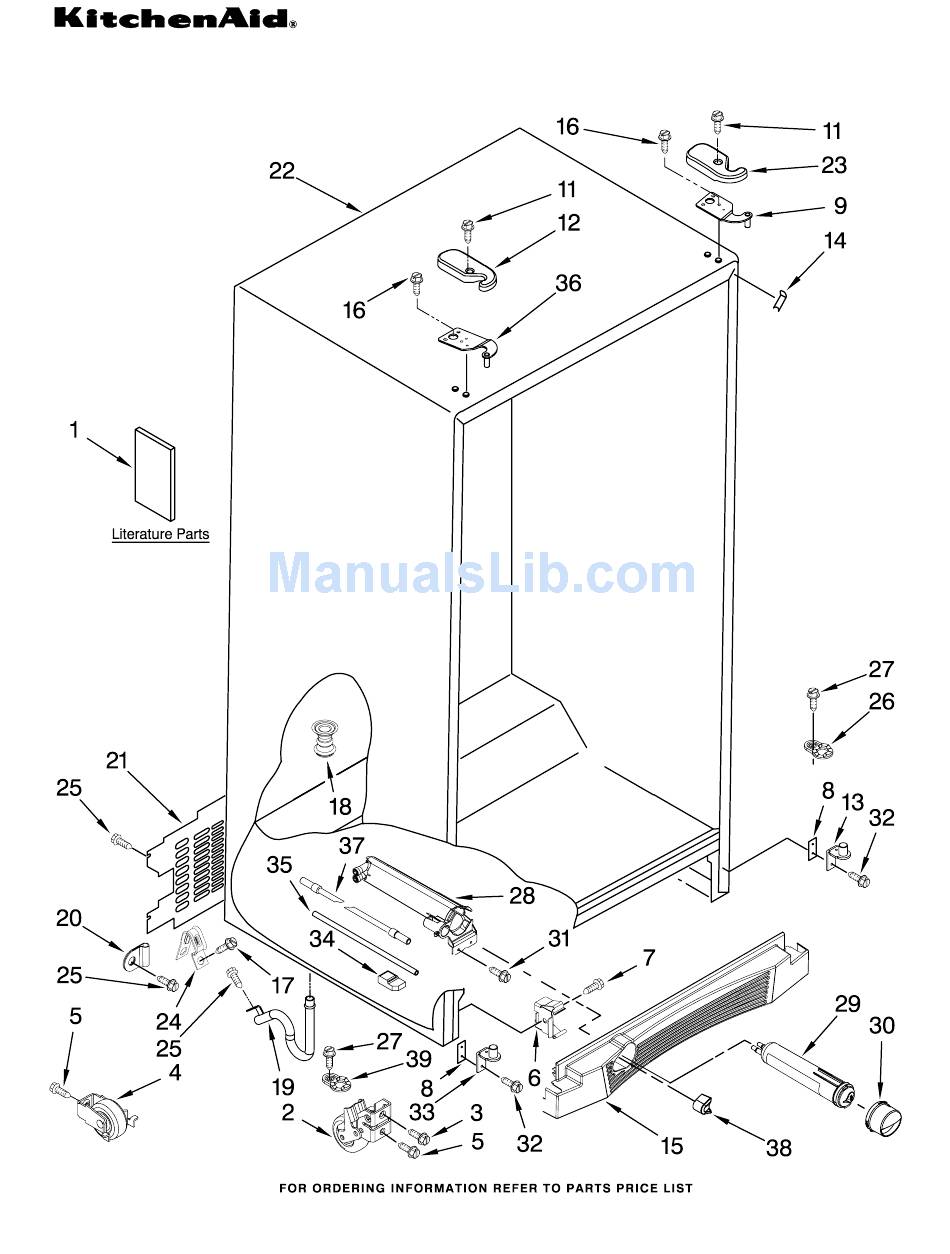

    CABINET PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Filler, Wrapper 2260507 Housing, Water 2318940 Energy Guide 2304846 White Filter 2304849 Biscuit 4396841 Water Filter...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2255612 Escutcheon, Meat Pan Control 2301339 Slide Meat Pan Control 2257741 Louver 2179404 Wine Rack Asm 2319866 Shelf Ladder 489478 Screw...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2301072 Frame Assembly (2) 2301023 Snack Pan Asm 2301567 Cover, Crisper 2196485 Stud Assembly 3400894 Screw 2301028 Glass, Meat Cover 2301027 Glass, Cover 2301568 Cover, Meat Pan 2196483 Stud Assembly...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 6 FREEZER LINER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2301138 Top Basket 2198697 Gasket Glide Assembly, Top Basket 2301540 Right Side 2301541 Left Side 2301139 Basket, Tall Glide Assembly,...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2305336 Ice Bin 2305294 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (4) 2305244 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2)

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2301168W White 2301168T Biscuit 2301168B Black 2301168SB Stainless Steel 2301168SAP Monochromatic Stainless 2301486 Door Compartment (Includes #14) 2223434K Door Bin (4)

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 12 FREEZER DOOR PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #7 And Dispenser Front Parts) 2318905W White 2318905T Biscuit 2318905B Black 2318905SB Stainless Steel 2318905SAP Monochromatic Stainless Handle...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Pad, Water Front Cover, (Not Serviced) 2305307CE For White Model Housing 2308165 Ferrite Bead 2305307MN For Biscuit Model...

  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2319914 Bi−metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2188819 Thermister...

  • Page 16: Control Parts

    CONTROL PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2212005 Control Box 2216879 Cover, Control 2255743 Light Bulb 3196537 Screw (4) 2216115 Control Box 2321728 Electronic Insert, Control...

  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 18 UNIT PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2225834 Fan, Blade 489427 Screw 2310229 Harness, Unit 2 W10121484 Condenser Assembly Drier 489478 Screw 489464 Screw...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) W10132055...
  • Page 20 ICEMAKER PARTS For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting and Water Tube 628379 Clip, Fuse 489478 Screw (3) 2305225 Smart Valve 2208136 Clip, Tube 2174358 Cover 488649 Screw 2255835 Mold &...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) ACCESSORIES (12 oz.) 2217192 Cleaner, Stainless 799340 Black Steel...
