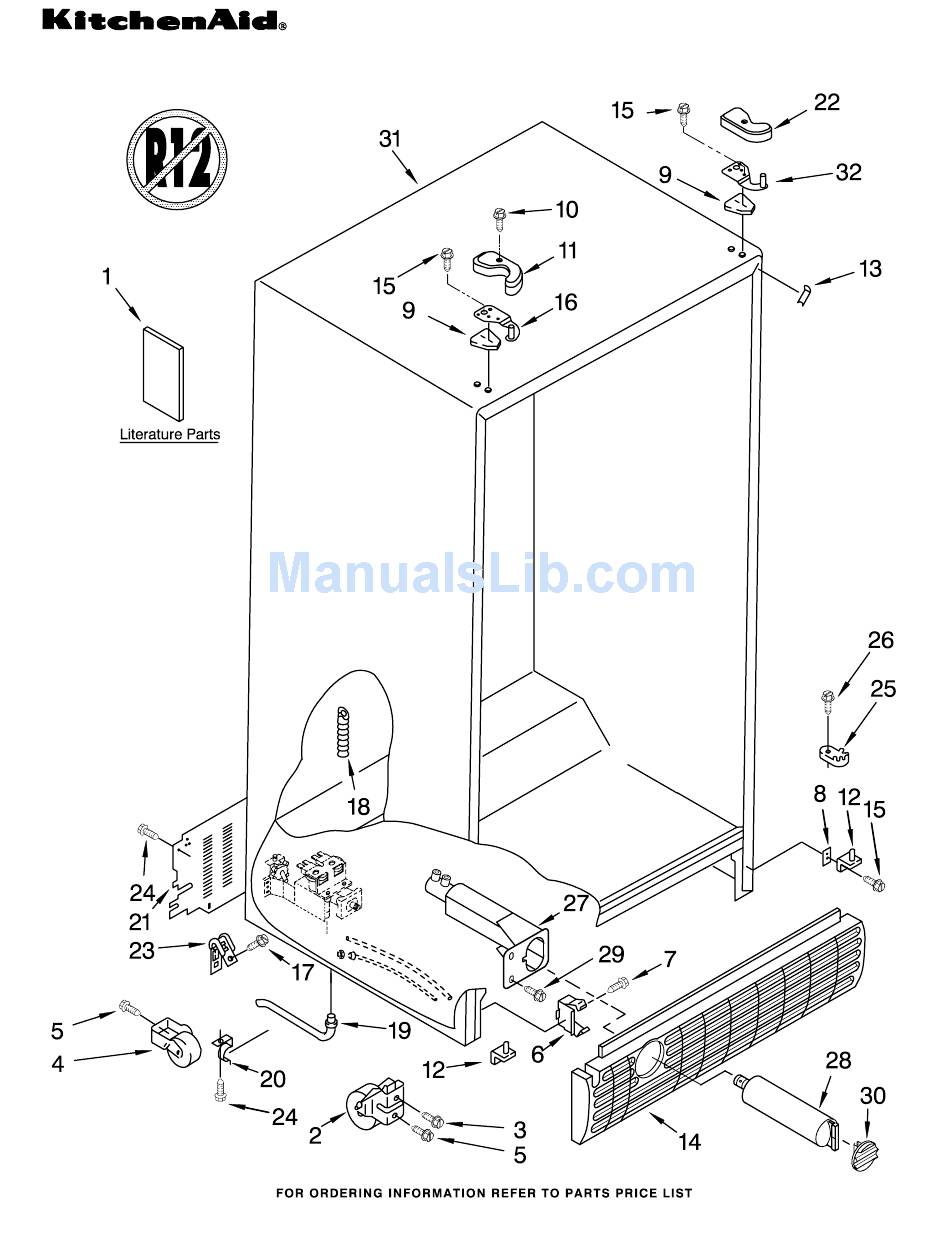

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 6−00 Printed In U.S.A. (dmz) Part No. 4398738...
-
Page 2: Cabinet Parts
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 Illus. Part DESCRIPTION LITERATURE PARTS 1 LIT2206106 Use & Care Guide LIT2200279 Service & Wiring Sheet LIT2211901 Energy Label LIT628370 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 4398738 (White) (Black) (Biscuit) (Stainelss Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2196485 Stud Assembly... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) Illus. Part 2195978 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan 2209677 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 6 FREEZER LINER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 2174493 Shelf, Top 2171713 Door, Ice 940014 Hole Plug 8281158 Screw 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2196483 Stud Assembly 2176134 Grommet (2) 1119237 Left Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2186815 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor 489478 Screw 2162085 Socket, Light...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 2207183W White 2207183B Black 2207183T Biscuit 2207183S Stainless Steel 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2159075 Mist Beige 2159083 Black 2207112W White 2207112B Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 12 FREEZER DOOR PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 2207189W White 2207189B Black 2207189T Biscuit 2207189S Stainless Steel 2207112W White 2207112B Black 2207112T Biscuit 2207112S Stainless Steel 3400898 Screw 3400012 Screw 2171070 Shelf Bin (4) 2159074 Mist Beige...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 489000 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism 2205686 Mechanism Delay 2207109W White 2207109B Black 2207109T Biscuit 2180225 Water Fitting...
-
Page 15: Air Flow Parts
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2209606 Gasket 2203593 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2209607 Gasket 2176759 Fan Grommet (2) 2182146 Duct, Icemaker... -
Page 16: Control Parts
For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 Illus. Part DESCRIPTION 2200135 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Light Switch 2161461 Thermostat (FC) 2162046 Adaptive Defrost Control 489398 Screw (2) 2196003 Tube Barrier, Thermostat (FC) 2161460 Thermostat (R.C.) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 18 For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 Illus. Part DESCRIPTION 486692 Speed Nut 2190685 Fan, Blade 2204242B Condenser Assembly 489464 Screw 2208280 Clip, Wire 489099 Screw 2204239 Tube Suction 2161302 Sleeve 2158826 Dampener 4387731 Cover (Service Compressor Only) 4387835 Overload, (Service...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) (Biscuit) (Stainelss Steel) 4398738... - Page 20 ICEMAKER PARTS For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 (White) (Black) Illus. Part 489084 Screw 2196157 Fitting, Water 2186493 Tube, Filter 2186492 Tube, Filter 628379 Clip, Fuse 2200083 Nut, Compression 2181940 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25CHWH00, KSRS25CHBL00, KSRS25CHBT00, KSRS25CHSS00 Illus. Part Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White 350939 Enamel, Black 350930 Enamel, White 350956 Enamel, Almond 4392901 Enamel, Biscuit 72017 Brush Touch−Up Kit 72107 Brush Touch−Up Kit...
