- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) 4−11 Printed In U.S.A. (jdc) (bay) Part No. W10251931 Rev. A...
-

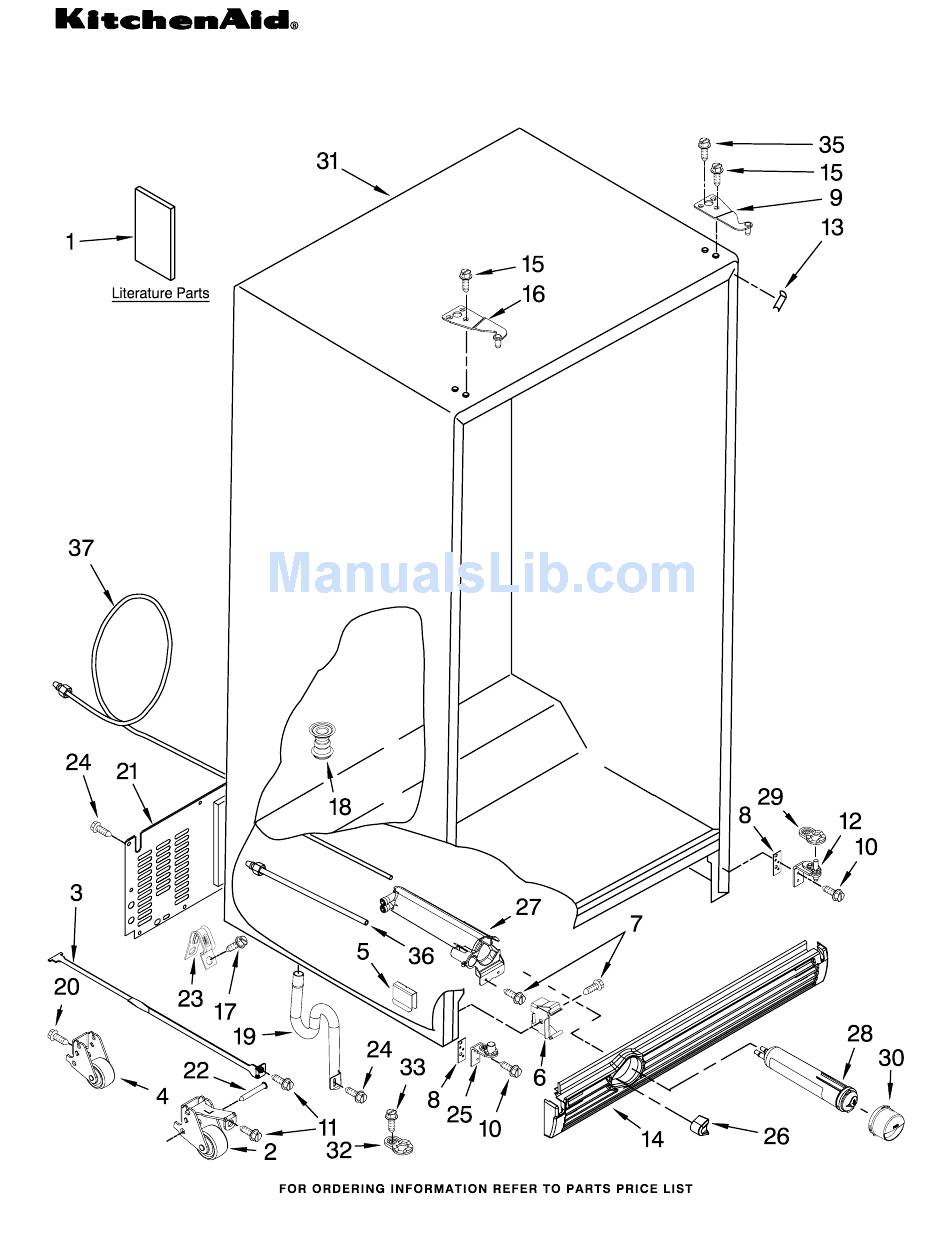

Page 2: Cabinet Parts
CABINET PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2307179 Hinge Assembly, 24 W10141645 Screw Literature Parts Bottom−RC 2307152 Hinge Assembly, W10168296 Use & Care Guide (Includes #29) Bottom−FC W10203129 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 8 W10141645 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10235943 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 6 FREEZER LINER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223691 Basket, Deep (2) 6 W10191952 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10128340 White W10128342 Black 2307198S Stainless Steel 2307198SAP Monochromatic Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle Door Gasket, Magnetic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 12 FREEZER DOOR PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10214276W White W10214276B Black W10214276SB Stainless Steel W10214276S Monochromatic Stainless Handle (Includes #6) 2319727W White 2319727B Black 2319727S Stainless Steel 2219698 Stud, Handle...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 14 DISPENSER FRONT PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Ice Housing, Dispenser 2162361 Switch, Ctrl (Not Serviced) Dispenser Bezel, Disp 3196537 Screw W10152853 White W10136850 White 2194719 Retainer, Levers W10152854 Black...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 2223882 Heat Shield Asm (Includes #3) 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10251931... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 18 UNIT PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2224022 Heat Shield 1 W10142231 Screw Following Parts Not Illustrated 24 W10177049 Drier 2 W10139483 Fan, Blade 25 W10168473 Compressor 3 W10131059 Condenser and Optional Parts Not Included...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) W10251931... - Page 20 ICEMAKER PARTS For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10141645 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 4 W10001260 Screw 5 W10210603 Water Valve Asm 2208136 Tube Clip 2174358 Cover 8 W10141625 Screw 9 W10122527 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCK25FVWH01, KSCK25FVBL01, KSCK25FVSS01, KSCK25FVMS01 (White) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) ACCESSORIES (12 oz.) Previous Architect 799340 Black Series Handle Kit 350942 Primer, White 799344 White 8201806 Stainless...
