- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Part No. W10233041 Rev. A 10−08 Printed In U.S.A. (jdc)(mek)
-
Page 2: Cabinet Parts

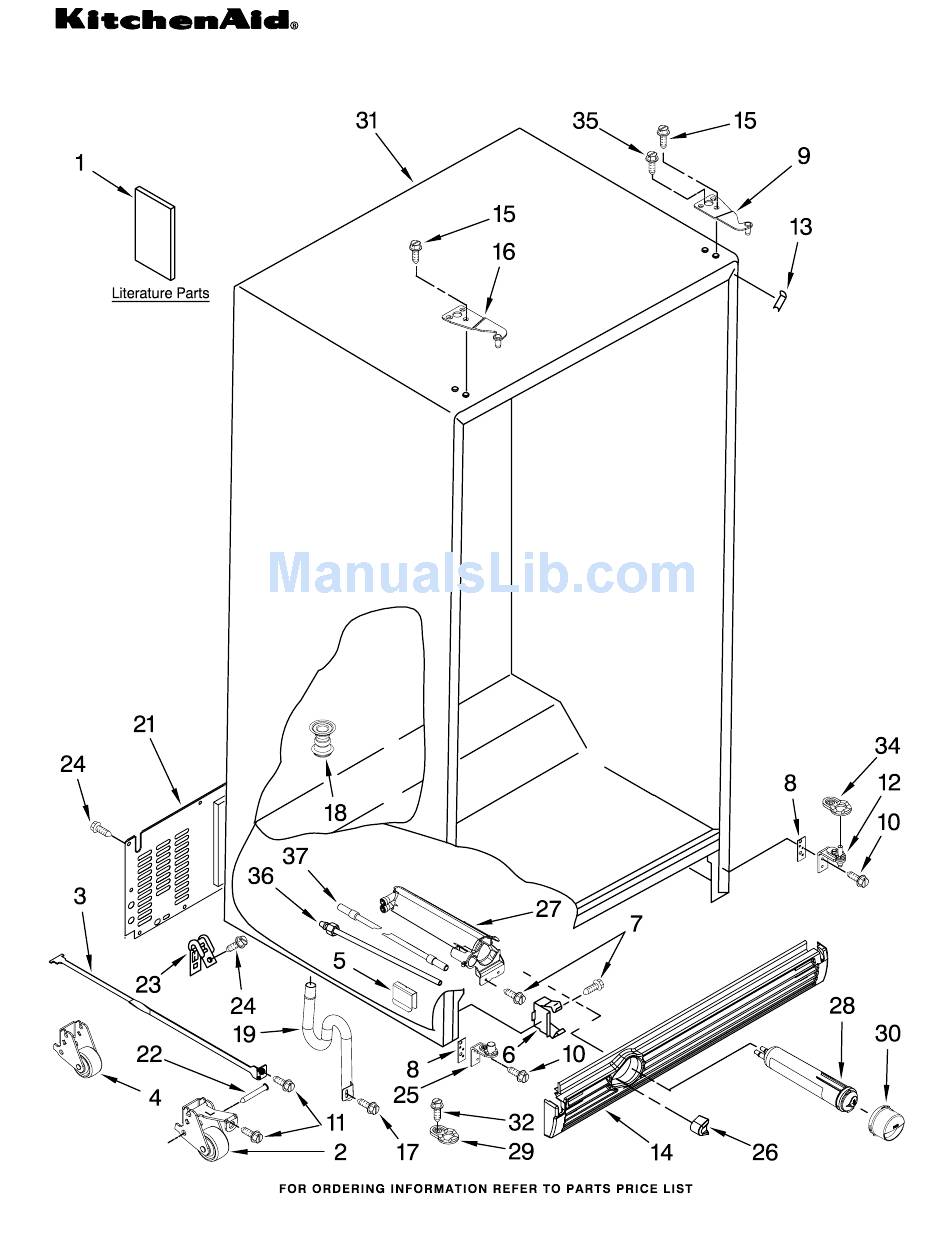

CABINET PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2307152 Hinge Assembly, 2307179 Hinge Assembly, Literature Parts Bottom−FC Bottom−RC W10168296 Use & Care Guide Filler, Wrapper Button, Water W10203129 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2319866 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 6 W10165556 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 6 FREEZER LINER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2224053 Front−Basket 2196483 Stud Assembly 2223691 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) Shelf Track 2223787 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10128346 White W10128348 Black 2307199S Stainless Steel 2307199SAP Monochromatic Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle Door Gasket, Magnetic...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 12 FREEZER DOOR PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10196037W White W10196037B Black W10196037SB Stainless Steel W10196037S Monochromatic Stainless Handle 2319727W White 2319727B Black 2319727S Stainless Steel 2219698 Stud, Handle 488208 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 14 DISPENSER FRONT PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670B Black...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 2223882 Heat Shield Asm (Includes # 3) 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10233041... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 18 UNIT PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 777070 Screw 22 W10177049 Drier Following Parts Not Illustrated 2 W10139483 Fan, Blade 23 W10186723 Compressor and Optional Parts Not Included 2223800 Spacer (5) 3 W10131059 Condenser Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) W10233041... - Page 20 ICEMAKER PARTS For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 4 W10001260 Screw 5 W10210603 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCK23FVWH00, KSCK23FVBL00, KSCK23FVMS00, KSCK23FVSS00 (White) (Black) (Monochromatic Stainless)(Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 799340 Black 350942 Primer, White 799344 White 350939 Black...
