- Page 1 CABINET PARTS 36" BOTTOM MOUNT BUILT IN REFRIGERATOR For Model: KBLC36MHS01 9-99 Litho In U.S.A. (mek) Part No. 4398465...
-

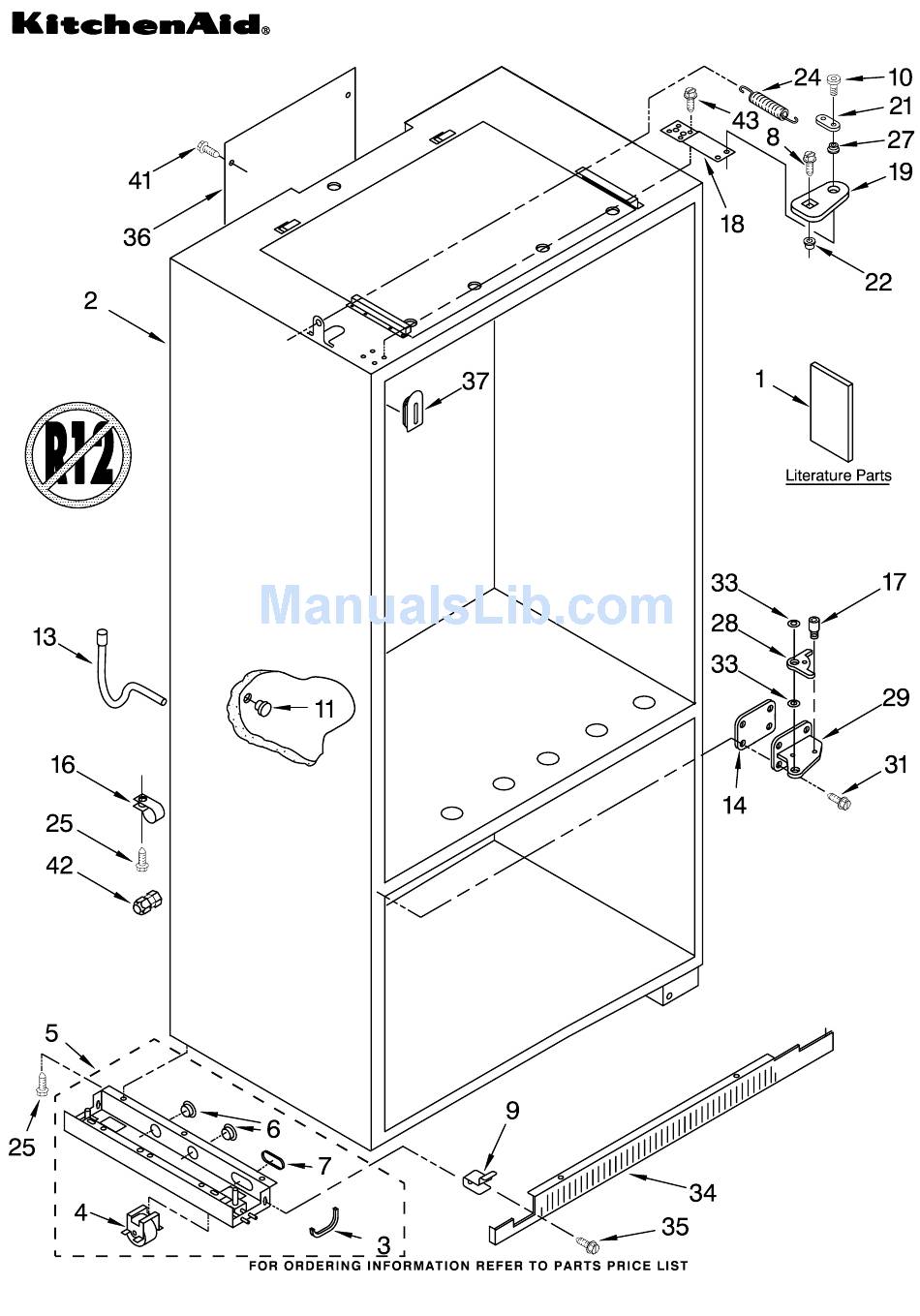

Page 2: Cabinet Parts
CABINET PARTS For Model: KBLC36MHS01 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2207430 Grommet, 2004517 Spring, Door LITERATURE PARTS Closure Flexible LIT2005193 Use & Care Guide 486194 Screw 2001297 Screw LIT2005194 Energy Label 2006442 Mounting Bracket, 2005920 Bushing-Arm, LIT2207484 Service &... - Page 3 CABINET AND BREAKER TRIM PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION Cabinet, Trim 2005256 Right Side 2005493 Left Side 2003857 Screw 1163283 Screw 487246 Repair, Screw 2004536 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005786 Breaker Trim 2005782 Cover, Hinge 2005925 Seal-Trim, Side 489464 Screw...
- Page 4 TOP GRILLE AND UNIT COVER PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 2005312 Top Grille Assembly 2005549 Cover, Unit 488908 Screw 2002484 Grille, Bracket 2001415 Screw 2005292 Nameplate 2005534 Guard, Compressor Wiring 2006445 Baffle-Air, Condenser 2004333 Nut 2005485 Bracket, Trim Panel 2006197 Louver, Vent 2005483 Bracket, Louver 488649 Screw...
- Page 5 LINER PARTS For Model: KBLC36MHS01 4398465...
- Page 6 LINER PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION Liner, Refrigerator (Not Servicable) Liner,Freezer (Not Servicable) 2005775 Wiring Channel Side 2005932 Diffuser Cap, Left Side 2005931 Diffuser Cap, Right Side 2171846 Release Valve 487539 Screw, 8-15 x .500 3400809 Screw 548268 Grommet 2006148 Wiring Channel, Freezer Rear 2204505 Foam, Fan Shroud...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KBLC36MHS01 4398465... - Page 8 CONTROL PANEL PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 2005489 Control Panel 2005940 Overlay, Control Panel 2005585 Circuit Board 2005414 Slide, Control 2172906 Grommet, Light Fiber 1118894 Switch, Rocker Arm 2005935 Heat Shield, Lamp 489260 Screw (3) 2179920 Fiber Optic 2207475 Thermostat 2005043 Socket, Light 548049 Light Bulb...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KBLC36MHS01 4398465... - Page 10 REFRIGERATOR SHELF PARTS For Model: KBLC36MHS01 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005429 Air Damper, Deli 2005477 Glass, Crisper Slide, Freezer 2005151 Rail-Rear, Deli Shelf Basket 2005152 Glass Shelf, Deli 2005478 Rail-Rear, 2207520 Right Side 2005153 Rail-Front, Deli Crisper Shelf 2207521 Left Side 2005415 Control Knob, Deli...
- Page 11 FREEZER DOOR AND BASKET PARTS For Model: KBLC36MHS01 4398465...
- Page 12 FREEZER DOOR AND BASKET PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 2207525 Freezer Door Panel (F.I.P.) 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 488649 Screw 2005400 Foam, Filler 2006139 Spacer, Door Edge Side 2006138 Spacer, Door Edge Top & Bottom 2005187 Door Gasket, Magnetic 488531 Screw...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KBLC36MHS01 4398465... - Page 14 REFRIGERATOR DOOR PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 2005168 Refrigerator Door (Includes Item 9) 2005396 Skin, Door 2005171 Hinge Assembly, 2004520 Spacer-Hinge, 3400060 Screw, 10-32 x .750 2003985 Hinge Assembly, Bottom 2005397 Filler, Foam 2006140 Spacer, Door Edge Side 2005174 Door Gasket, Magnetic 488531 Screw,...
- Page 15 UPPER UNIT PARTS For Model: KBLC36MHS01 4398465...
- Page 16 UPPER UNIT PARTS For Model: KBLC36MHS01 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2202581 Drier 2003398 Assembly, Unit 2208903 Motor, Fan Following Parts Not Illustrated Base 2190685 Blade, Fan and Optional Parts Not Included 2163787 Clip, Compressor 2003169 Orifice, Fan Mounting (4) 489099 Screw (3) 2183418 Compressor...
- Page 17 LOWER UNIT AND TUBE PARTS For Model: KBLC36MHS01 4398465...
- Page 18 LOWER UNIT AND TUBE PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 2207482 Defrost Bi-Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2005577 Condenser Inlet Tube 2005576 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2002995 Tube, Discharge 2003272 Sleeve...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KBLC36MHS01 4398465... - Page 20 ICEMAKER PARTS For Model: KBLC36MHS01 Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2005009 Water Inlet Tube Assembly 1106508 Seal Gasket 2154472 Connector 2003791 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2005038 Plug, Water Valve 489348 Clamp, Nylon Valve 488946 Clamp Tube 2174155 Cover...
