For FastAttach
For Compatible 600- and 800-Series Box-Frame Tractors
Model OEM-190-679 / 190-679-101
SECTION 1: CALLING CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative.
Please have your unit's model number and serial number ready when you call. See previous section
to locate this information. You will be asked to enter the serial number in order to process your call.
SECTION 2: CONTENTS OF CARTON
Before beginning installation, remove all parts from the
carton to make sure everything is present. Carton
contents are listed below. Part numbers are shown in
parentheses.
SECTION 3: ASSEMBLY
WARNING: Before beginning installation,
place the tractor on a firm and level
surface. Place the PTO in the disengaged
(OFF) position, stop the tractor engine and
set the parking brake.
NOTE: References to LEFT and RIGHT indicate the left
and right sides of the tractor when facing forward in the
operator's position. Reference to the FRONT indicates
the grille end; to the REAR the drawbar end.
Mounting Bumper to all FastAttach
WARNING: Muffler may be hot! Make sure
engine has cooled down before installing
bumper.
•

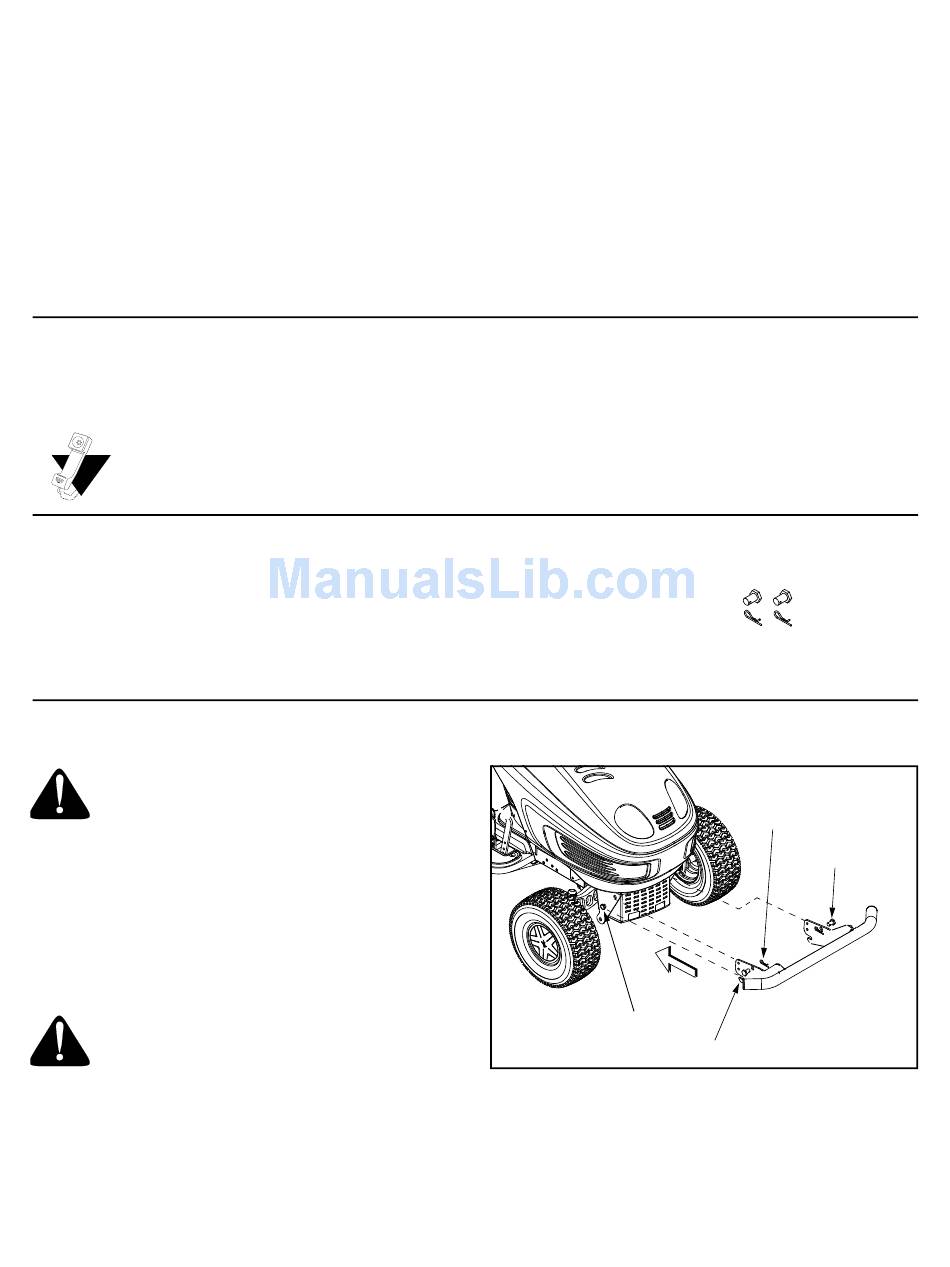

To mount the bumper to the tractor, hook the
notched ends (slots) of the bumper onto the
shoulder bolts on the sides of the tractor frame.
See Figure 1.
PRINTED IN U.S.A.
Front Bumper Kit
Compatible 600- and 800-Series Tractors
™
™
Compatible Tractors
•
Front Bumper - (768-0010B)
•
Two Clevis Pins - (711-0332)
•
Two Cotter Pins - (714-0145)
•
Four Hex Bolts - (710-1260A)
•
Four Hex Flange Nuts - (712-3004A)
Shoulder Bolt
Figure 1
•
Align the holes in the bumper with the holes in the
tractor frame and insert the clevis pins through the
holes from the outside. Secure the pins in place
with the cotter pins.
Cotter Pin
Clevis Pin
Slot
FORM NO. 769-00041C.fm
(1/25/06)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MTD OEM-190-679
Summary of Contents for MTD OEM-190-679
- Page 1 Front Bumper Kit For FastAttach Compatible 600- and 800-Series Tractors ™ For Compatible 600- and 800-Series Box-Frame Tractors Model OEM-190-679 / 190-679-101 SECTION 1: CALLING CUSTOMER SUPPORT If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.
- Page 2 The nuts will not be should be bolted into the guard. The nuts will not be neccessary. neccessary. Hex Flange Nut Hex Flange Nut Hex Bolt Hex Bolt Tractor Bracket Tractor Bracket Figure 2 Figure 3 MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-9722...
