MTD OEM-190-672 Replacement Instructions

For FastAttach
For Box Frame Compatible 600 and 800 Series Tractors
SECTION 1: CALLING CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative.
Please have your unit's model number and serial number ready when you call. See previous section
to locate this information. You will be asked to enter the serial number in order to process your call.
SECTION 2: CONTENTS OF CARTON
Before beginning installation, remove all parts from the
carton to make sure everything is present. Carton
contents are listed below. Part number are shown in
parentheses.

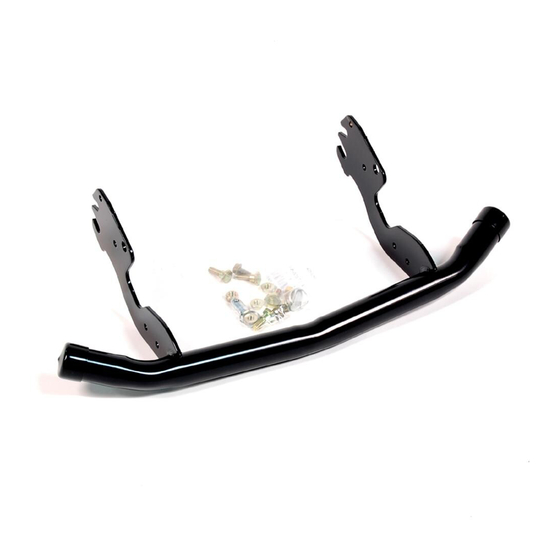

• Front Bumper - (768-0010A)
SECTION 3: ASSEMBLY
WARNING: Before beginning installation,
place the tractor on a firm and level
surface. Place the PTO in the disengaged
(OFF) position, stop the tractor engine and
set the parking brake.
NOTE: References to LEFT and RIGHT indicate the left
and right sides of the tractor when facing forward in the
operator's position. Reference to the FRONT indicates
the grille end; to the REAR the drawbar end.
Mounting Front Bumper to Fast Attached
WARNING: Muffler may be hot! Make sure
engine has cooled down before installing
bumper.
• To mount the bumper to the tractor, hook the
notched ends (slots) of the bumper onto the
shoulder bolts on the sides of the tractor frame.
See Figure 1.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
Front Bumper
Compatible 600 and 800 Series Tractors
™
Model OEM-190-672
Tractor
™
• Two Clevis Pins - (44056)
• Two Cotter Pins - (43055)
• Four Hex Bolts - (44283)
• Four Hex Nuts - (43083)
• Four Lock Washers - (43086)
Shoulder Bolt

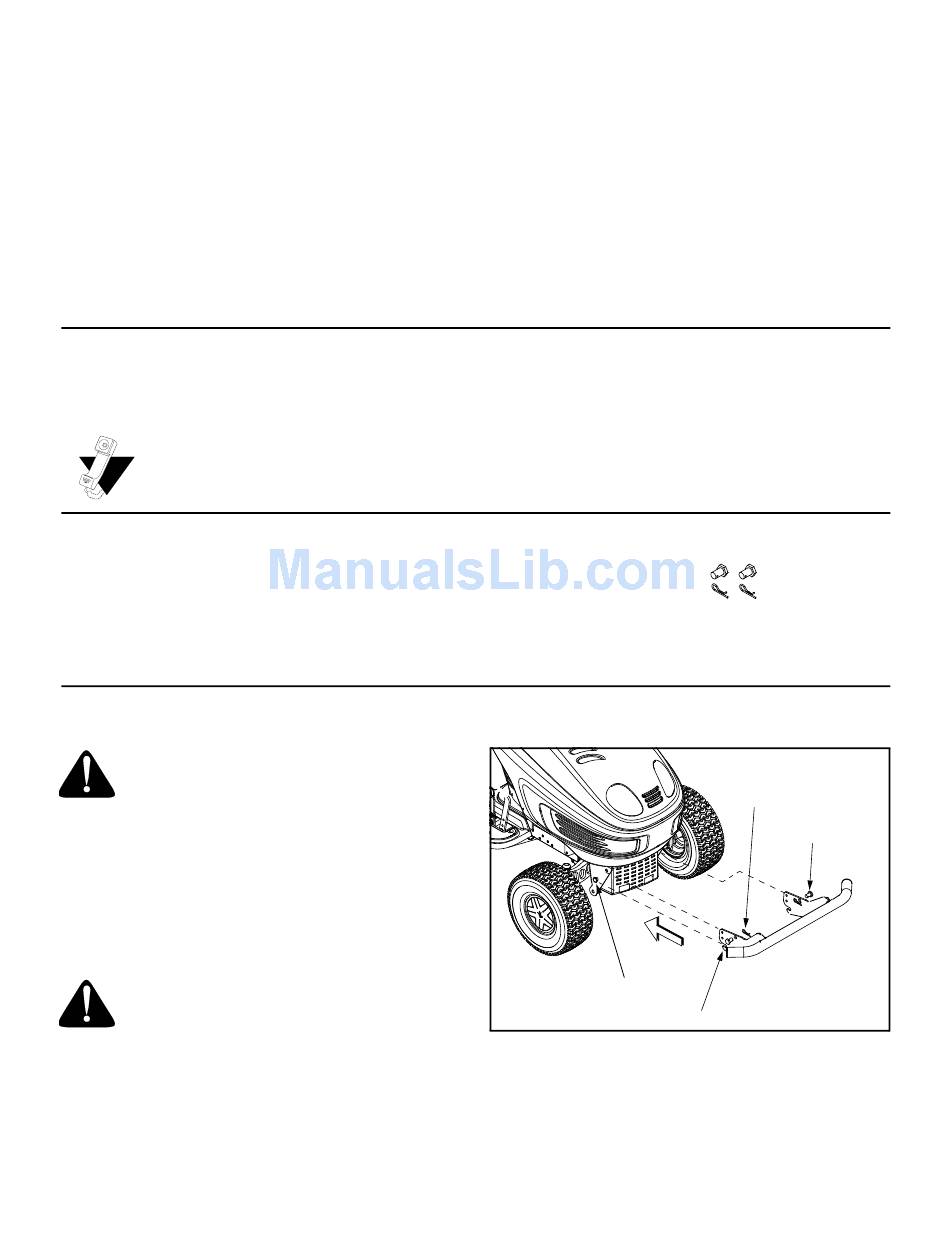

Figure 1
• Align the holes in the bumper with the holes in the
tractor frame and insert the clevis pins through the
holes from the outside. Secure the pins in place
with the cotter pins.
FORM NO.
Cotter Pin
Clevis Pin
Slot
769-00041A
(1/04)
