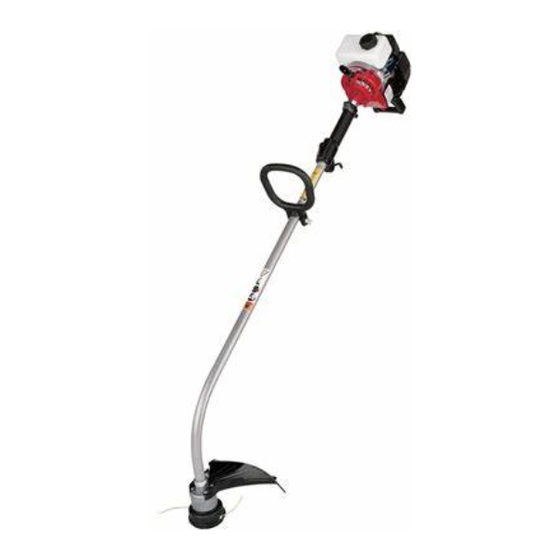

MTD Y28VP Replacement Parts

25
1
Item Part No. Description
1 753-04511 Air Cleaner Cover Assembly (includes 2 & 25)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screws
4 791-180226 Wavey Washer
5 753-04418 Choke Lever Assembly
6 753-04419 Choke Lever & Plate (includes 5)
7 753-04408 Carburetor Assembly (includes 8 & 17)
8 791-610675 Carburetor Gasket
9 791-181860 Carb Mount Screw
10 791-683974B Primer and Hose Assembly
11 753-1196 Carburetor Mount Assembly (includes 9, 12 & 13)
12 791-684451 Reed Assembly
13 753-05487 O-Ring
14 791-612134 Rear Mounting Pad
15 791-182612 Fuel Cap Assembly
16 791-181086 Fuel Return Line
17 791-682039 Fuel Line Assembly
18 753-04306 Fuel Tank Assembly (includes 15-17)
19 791-145308 Front Mounting Pad
20 753-05240 Flywheel Assembly
21 791-610303 Square Nut Drive
PARTS LIST PART NO. 769-04253
4
2
5
6
3
7
8
9
11
33
34

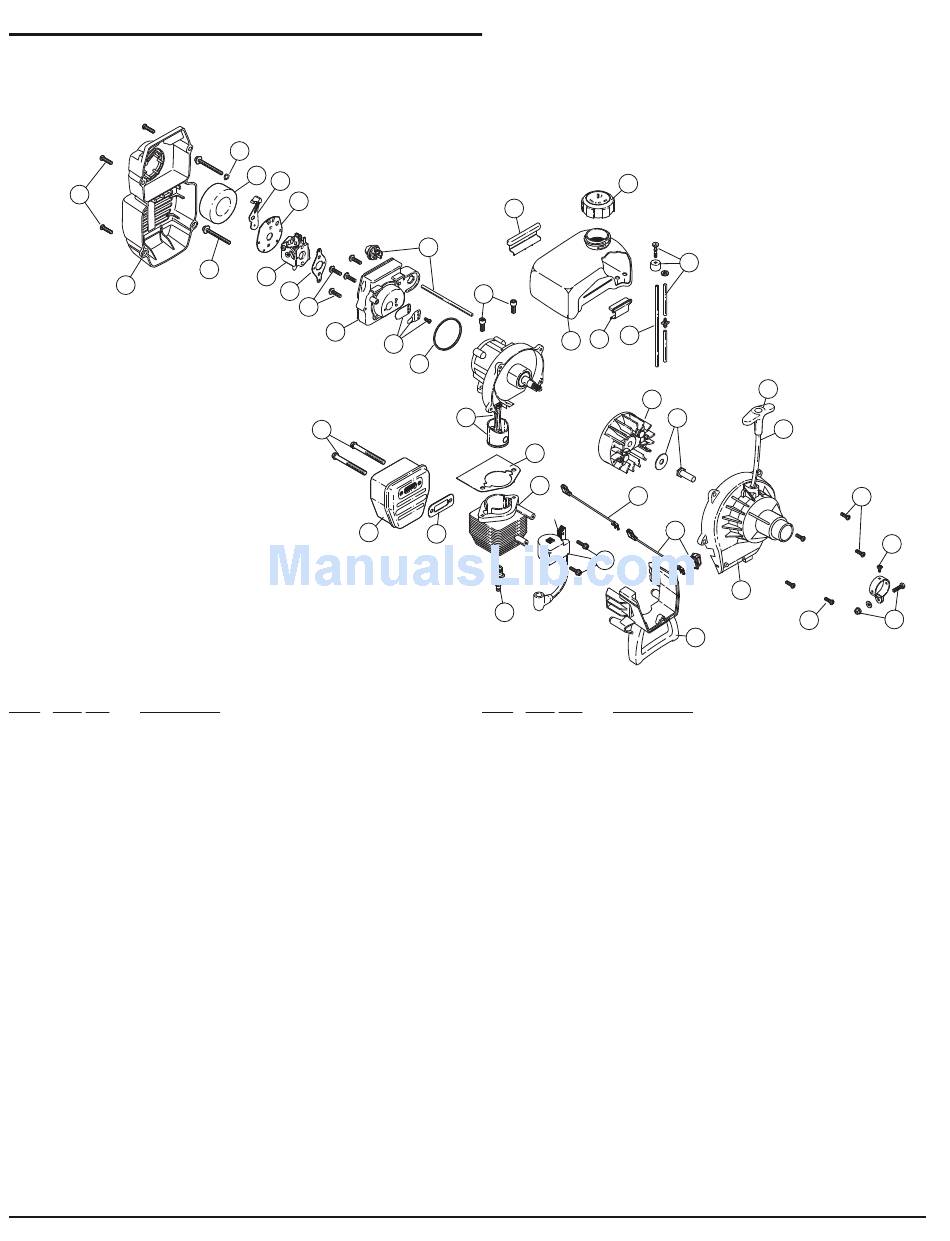

REPLACEMENT PARTS - MODEL Y28VP
14
10
36
18
12
13
35
37
38
32
31
Item Part No.
22 791-181079
23 791-182661
24 791-181862
25 791-181345
26 791-181936
27 753-05992
28 791-182441
29 753-05091
30 753-04109
31 791-610311B Spark Plug
32 753-04619
33 753-04620
34 753-05169
35 753-04367
36 791-182723
37 753-04182
38 753-04814
39 791-153597
40 791-145569
* 753-1209
* 753-04826
* not shown
2-CYCLE GAS ENGINE
15
17
16
19
22
20
21
26
28
30
27
29
Description
Pull Handle
Rope
Housing Screw
Cover Screw
Wire Lead
Starter Housing Assembly (includes 22-25)
Switch
Shroud Extension and Stand (includes 25)
Module Assembly
Exhaust Gasket
Muffler Mounting Bolt
Muffler Assembly (includes 32 & 33)
Piston & Rod Assembly
Cylinder Bolt
Cylinder Gasket
Cylinder Assembly (includes 36 & 37)
Clamp Assembly
Screw
Piston Ring Set
Short Block Assembly
(includes Crankcase, 9, 32 & 35-38)
PPN 41ADYVPG900
23
24
40
39
25
Isssued 8/08
