Dear music lover,
thank you for purchasing a PRO-JECT AUDIO amplifier.
In order to achieve maximum performance and reliability you should study these instructions for use carefully.
Warning of a hazard for the user, the unit or possible misuse.
Important notice.

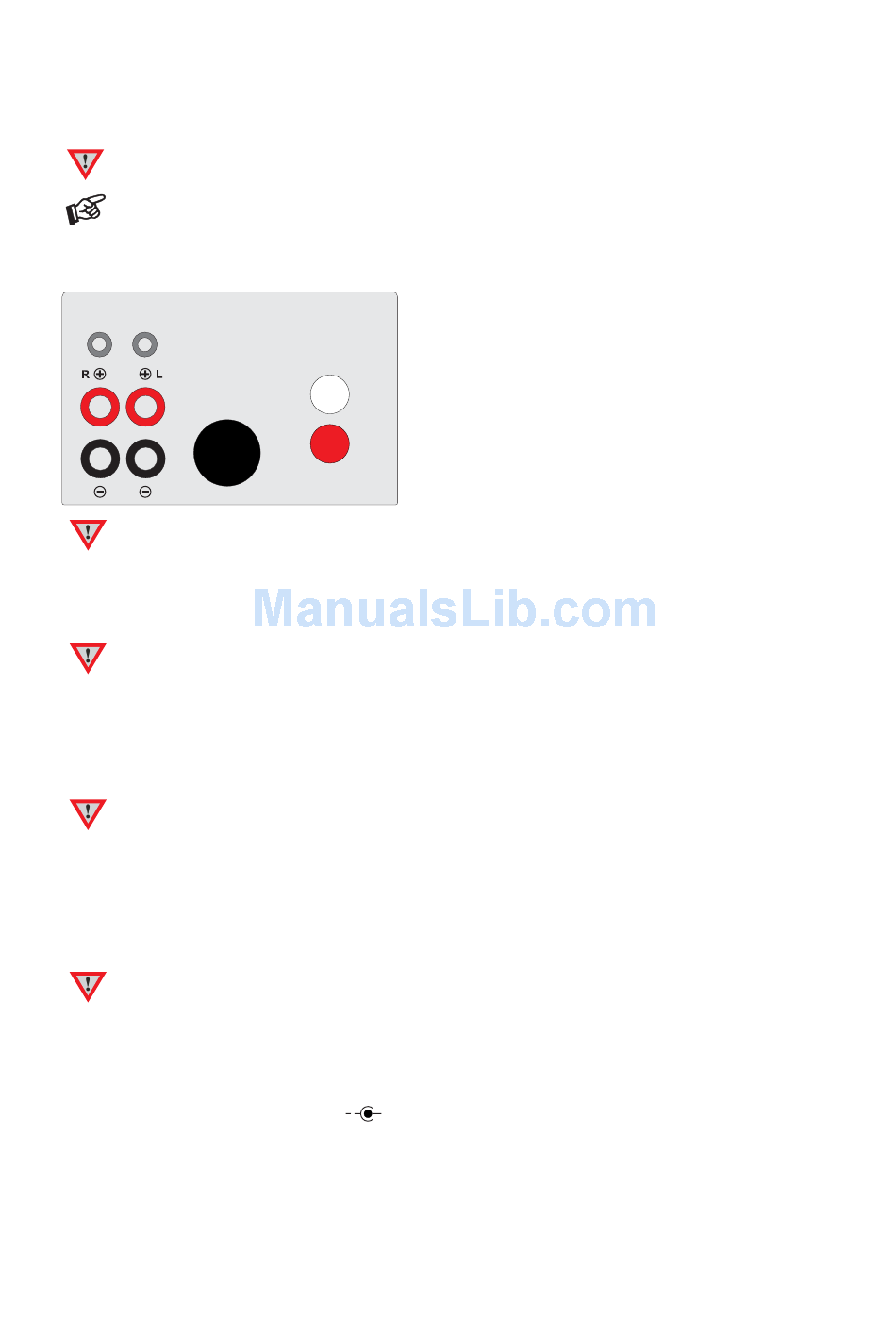

Connectors

Trigger
IN OUT
2x49V
Make all connections whilst the amplifier is disconnected from the power supply.

Connection to the preamplifier

The Input sockets marked Left / Right are for connecting the cables from your pre-amp or AV processor.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the
left channel black or white.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm ∅ Banana plugs, spades connectors
or naked wire.
Only connect one loudspeaker with an impedance not less than 4 Ohm per channel.
The red speaker terminals carry the positive signal (+), the black speaker terminals the negative
signal (–). Make sure the polarity of the connection is correct at each end of the cables.

Mains power connection

The unit is supplied with a power supply suitable for your country's mains supply. Check the label before
connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug from the
power supply to the 2x49V socket of the amplifier before connecting the power supply to the mains.
Never use any other DC power supply other than the one supplied with the unit.

Remote power on

The amplifier can be switched on & off via a special connection from the Pro-Ject Pre Box SE via the 2,5mm
socket marked Trigger IN.
A 45cm long power-on cable (polarity
accessories. The remote power-on signal can be relayed to further units via the Trigger OUT socket.

Stand-By

The pushbutton on the front panel of the unit alternately turns the power on or returns it to standby mode. The
blue LED on the front panel shows that the unit is powered on.
2
© Audio Trade GmbH · Pro-Ject Amp Box SE · Revision 15.10.10/15.12.10
Left
Right
) is supplied for this purpose. Longer cables are available as
+
