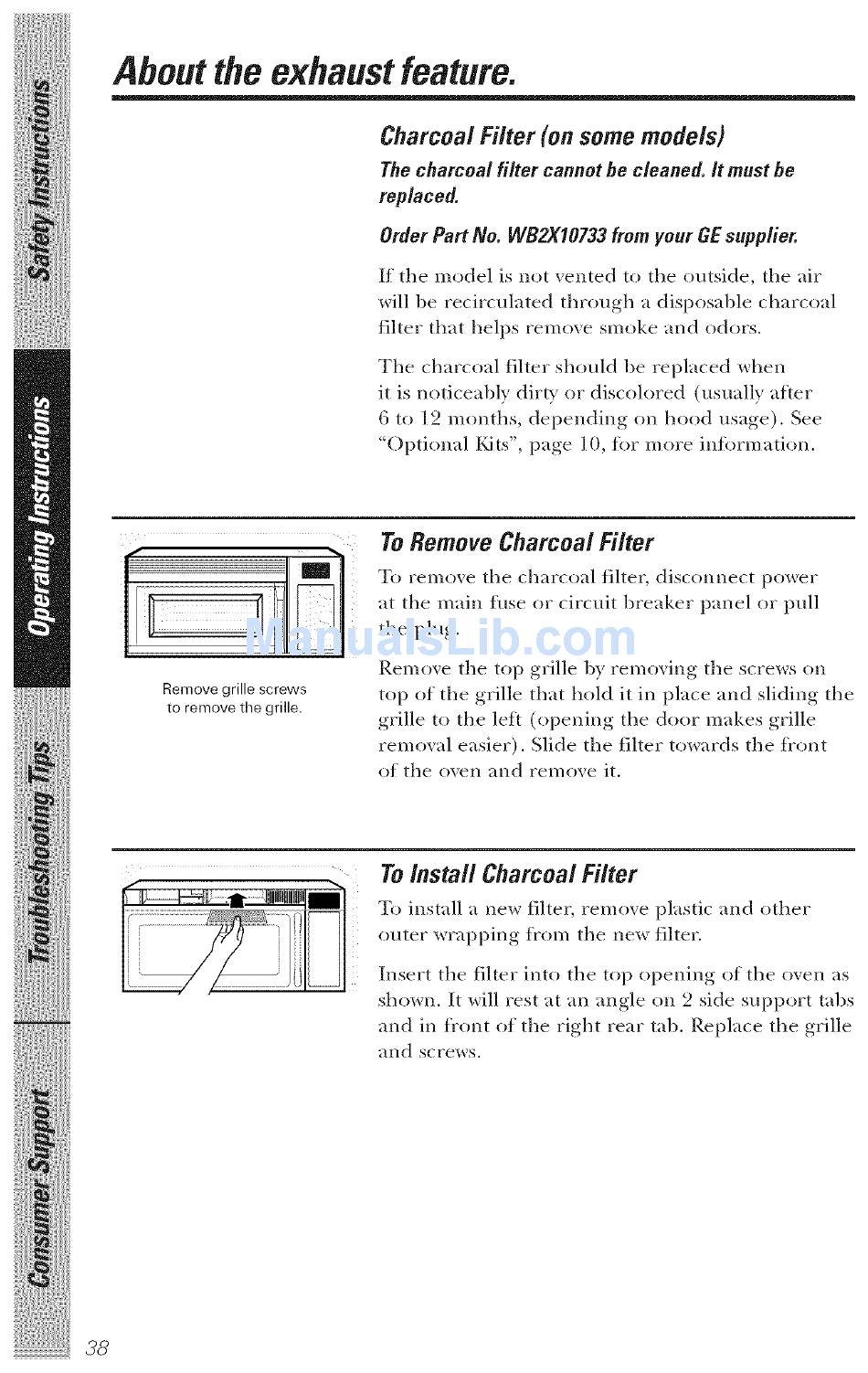

About the exhaust feature.
Charcoal Filter (on some models)
The charcoal filter cannot he cleaned. It must he
replaced.
Order Part No. WB2X10733fromyour GEsupplier.
If tile model is not xented to tile outside, the air
will be recirculated thr(mgh a disposable charcoal
filter that heli)s remoxe smoke and odors.
The charcoal filter should be rei)laced when
it is noticeably dirt), or discolored (usually after
6 to 12 months, depending on hood usage). See
"Optional Kits", page ] O, %r more in%tin ation.
Remove grille screws
to remove the grille.
To Remove Charcoal Filter
To remo_e the charcoal filter, disconnect power
at the main flBe or circuit breaker panel or pull
the plug.
Remove the top grille by removing the screws on
top of the grille that hold it in i)lace and sliding the
grille to the left (opening the door makes grille
remowd easier). Slide the filter towards the flont
of the oven and remove it.
iiiiiiiii;iii/iiiiiiiiii!/iiiiiiiiii
i iii iii iiiiil ii
/
38
To Install Charcoal Filter
To install a new filter, remoxe plastic and other
outer wrapping flom the new filter.
Insert the filter into the top opening of the o_en as
shown. It will rest at an angle on 2 side support tal)s
and in fl'ont of the right rear tal). Replace the grille
_lnd screws.
