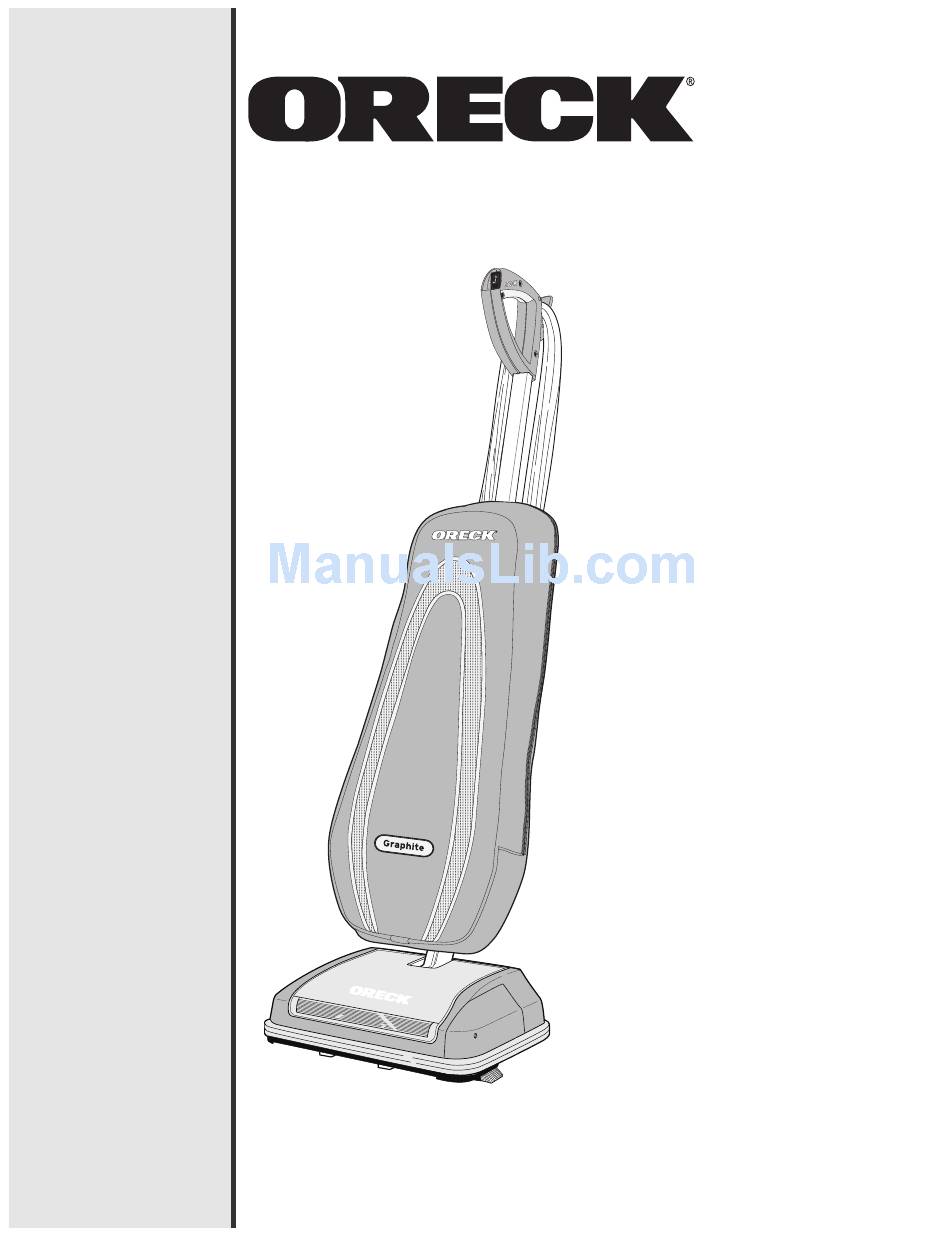

- Page 1 Graphite ™ User’s Guide Important! Read all instructions carefully, and keep for future reference.
-
Page 2: Safety

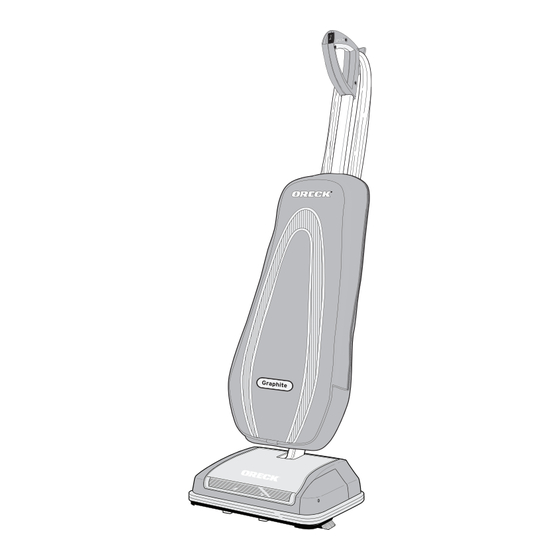

Do not alter the plug in any way. Enjoy Thank you for purchasing the Oreck U4300 Graphite series upright vacuum cleaner. The U4300 Graphite fea- tures a 6-year limited warranty, high speed for cleaning carpet and low speed for cleaning bare floors and the HEPA Filtration Odor Fighting Bag captures dust &... -
Page 3: Table Of Contents
Contents Safety ................2 General Warnings . -
Page 4: Assembling The Handle Tube
Operation Assembling the Handle Tube Before assembling appliance, remove two screws from the connector assembly. Remove insert by pulling upward. Slide upper handle section over the matching section of the connector assembly. Insert short screw into top hole and long screw into the bottom hole then tighten firmly until handle is no longer loose. Snap cord assembly into the cord clip located on the left side of the collar. -
Page 5: Simple Operation Tips And Vacuum Care
Operation Simple Operation Tips and Vacuum Care This new ORECK Upright is one of the finest, fastest, and strongest units in its class. You’ll love the way it cleans, gets under things, and it’s SO lightweight and easy to use. -
Page 6: Lubrication
General Lubrication Information The vacuum cleaner motor bearings are factory lubricated and sealed. Further lubrication is not required. CAUTION Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor Surfaces and Polished Floor Finishes Use floor and floor finish manufacturer’s recommended methods of cleaning. The roller brush may also scuff very soft finishes. -
Page 7: Adjusting Or Replacing Brushroll
WARNING: Unplug cord from electrical outlet before servicing. Your Oreck Vacuum has a brushroll that can be replaced after heavy use for improved performance. Remove the baseplate by removing 5 screws. Then, remove the belt and brushroll from the housing. -
Page 8: Stuffing Or Blockage
Note: If the above actions do not correct the problem, contact an Oreck authorized service center or call the customer service center. US: 1-800-989-3535 Canada: 1-888-676-7325... -
Page 9: Parts
Oreck’s liability for damages to you for any costs whatsoever arising out of this statement of limited warranty shall be limited to the amount paid for this product at the time of original purchase, and Oreck shall not be liable for any direct, indirect, consequential or incidental damages arising out of the use or inability to use this product.
