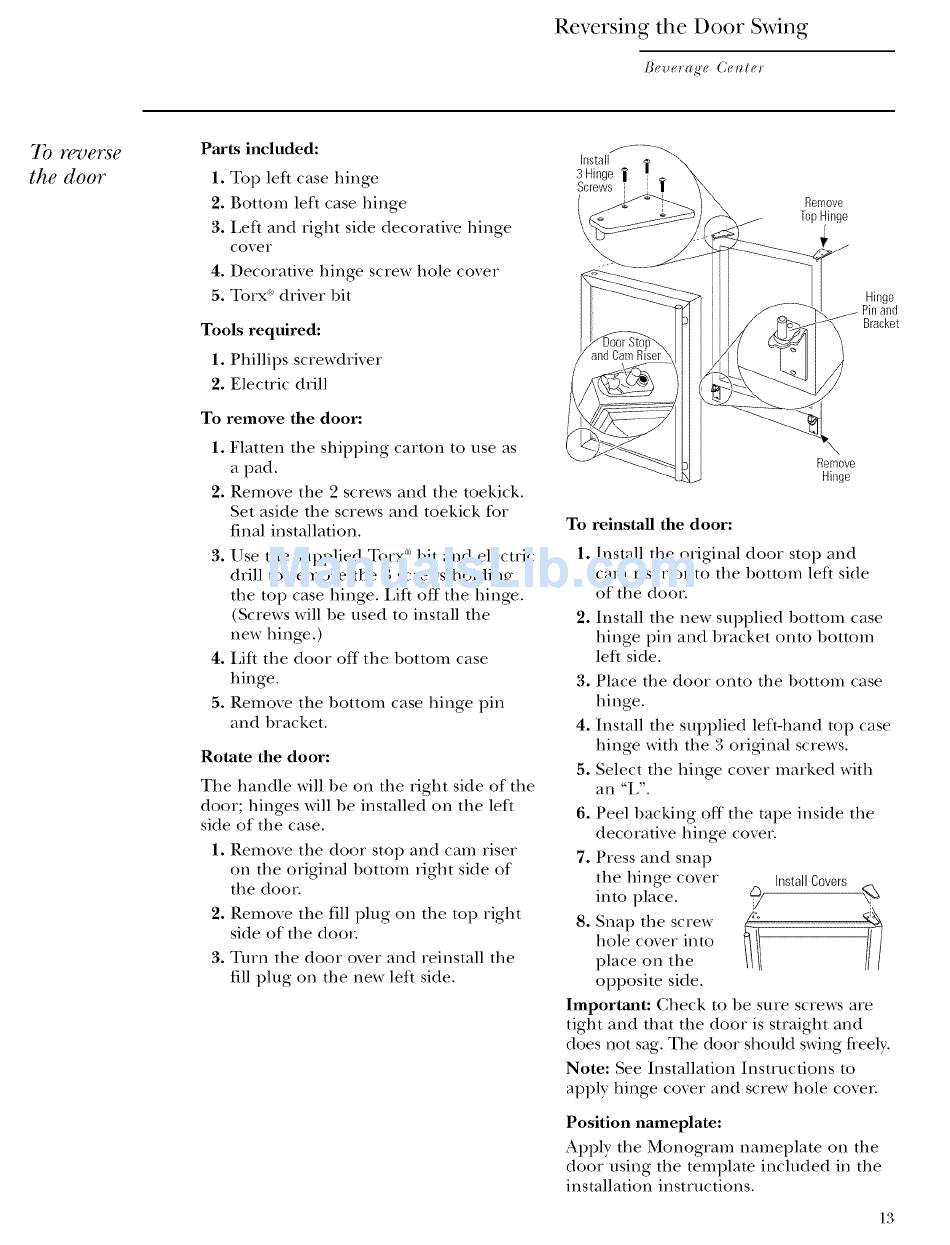

Reversing
the Door Swing
B_,verag'e ( e_l_,r
7b reverse
the door
Parts included:
1. Top left case hinge
2. Bottom
left case hinge
3. Left and right
side decorative
hinge
covet
4. Decorative
hing> screw hole covet
5. Torx °' driver
bit
Tools required:
1. PhilliI)s screwdrixer
2. Electric
drill
To remove
the door:
1. Flatten
the shiI)I)ing
carton
to use as
a pad.
2. Remove
tile 9 screws and the toekick.
Set aside
tile screws and toekick
for
final installation.
3. Use the suI)plied
Torx °' bit and electric
drill to remove
tile ,9,screws holding
tile top case hinge.
IAft off tile hinge.
(Screws will be used to install
the
new Iting_.)
4. iJft the door
off the bottom
case
hinge.
5. Remove
the 1)ottom
case hinge
pin
and bracket.
Rotate
the door:
Tile handle
will be on tile right
side of the
door;
hinges
will be installed
on the left
side of the case.
1. Remoxe
tile door
stop and cam riser
on tile original
bottom
right side of
the door.
2. Remoxe
tile fill i)lug on the top right
side of the door.
3. Turn
tile door
oxer and reinstall
the
fill I)lug on the new left side.
install
3 Hinge j
Screws '
Remove
TopHinge
Remove
Hinge
Hinge
Bracket
To reinstall
the door:
,
.
4.
5.
6.
7.
.
Install
the original
door
stop
and
cam
riser
onto
the
bottom
left side
of the door,
Install
tile
new
suI)I)lied
bottom
case
hinge
pin
and
bracket
onto
bottom
left side.
Place
the door
onto
the 1)ottom
case
hinge.
Install
the sui)plied
left-hand
top case
hinge
with tile ,9,original
screws.
Select
the hing_
cover marked
with
all "t'.
Peel backing
off the tape inside
the
decoratixe
hinge
coxer.
Press and snap
tile hinge
cover
into place.
Snap the screw
hole cover into
place on tile
opposite
side.
Install Covers
Important:
Check
to be sure screws are
tight
and that tile door
is straight
and
does not sag. The door should
swing freely.
Note:
See Installauon
Instructions
to
api)ly hinge
covet
and screw hole coven
Position
nameplate:
Ai)ply tile Monogram
rlamei)late
on the
door
using
the temi)late
included
ira the
installation
instructions.
13
