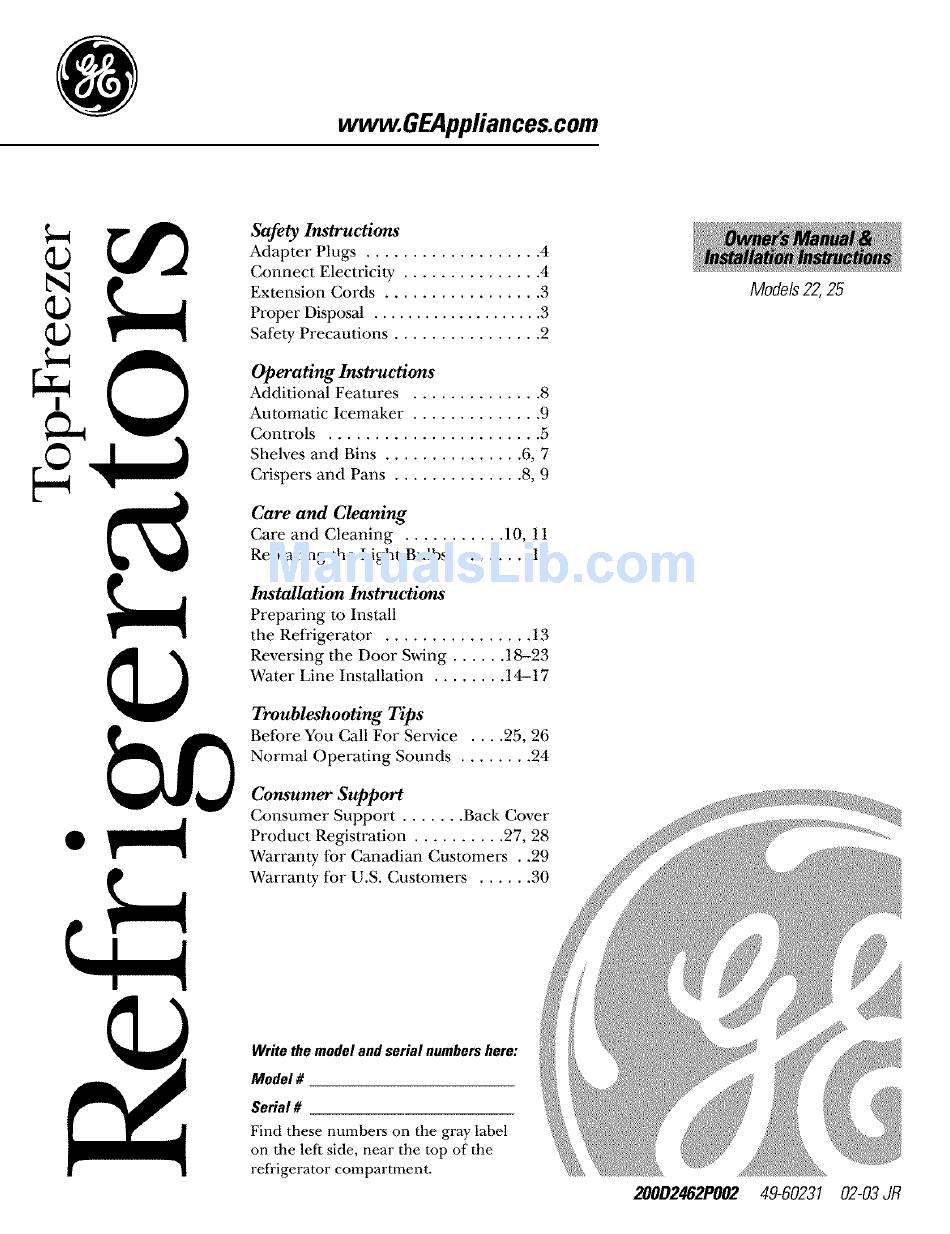

Page 1: Table Of Contents
wwvv.GEAppliances.com Safety Instructions Adapter Plugs ....Connect Electricity ....Models22, 25 Extension Cords ....Proper Disposal ....Safety Precautions ....Operating Instructions Additional Features ....Automatic Icemaker ....Controls ....... Shelves and Bins ....6, 7 Crispe_ and Pans ....8, 9 Care Cleaning...
Page 2: Safety Precautions
IMPORTANT SAFETY INFORMATION. READALLINSTRUCTIONS BEFORE USING. WARNING! Use this appliance only for its intended purpose as described in this Owner's ManuaL SAFETY P RECAUTIONS When using electrical appliances, basic safety precautions should be followed, including the following: { This refrigerator must be properly installed @ Keep fingm.-sout of the "pinch point"...
Page 3: Proper Disposal
ww_.GEAppliances.com A DANGER!RISK OFCHILDENTRAPMENT PROPER DISPOSAL OFTHE REFRIGERATOR Refrigerants Child entrapment and suffocation are not problems of the past. Junked or abandoned All refrigeration products contain refrigerants, refrigerators are still dangerous...even if they which under federal law must be removed prior will sit for '.'just a few days."...
Page 4: Safety Instructions Adapter Plugs
IMPORTANT SAFETY INFORMATION. READALLINSTRUCTIONS BEFORE USING. A WARNING! HOWTOCONNECT ELECTRICITY Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of tbis appliance is equipped This provides tile best performance and also witb a g-prong (grounding)
Page 5 About the controlson the refrigerator, www.GEAppliances.c The controls will look like one of the following: Initially, set the refrigerator control at 5 and the freezer control at 5 and allow 12-24 hours for the temperature to stabilize. Several adjustments may be required. Adjust the controls one increment at a time, and allow 12hours after each adjustment for the refrigerator to reach the temperature you have set.
Page 6: Shelves And Bins
About the shelves and bins. Not all features are on all models. Rearranging the Shelves Shelves in the refiigerator and freezer compartments are adjustable. Refrigerator Compartment Toremove: Tilt the shelf up at the fi'ont. Liftthe shelfthe shelf UPout. at the back and bring Some models have wire shelves that can be adjusted in the same manne_ To replace:...
Page 7 ww_.GEAppliances.com Slide-Out Spillproof Sheff (on some models) The slide-out spillproof shelf allows you To replace: to reach items stored behind othm.-s.The Place tile rear shelf tat)s just in front special edges are designed to help prevent the central notches on the shelf frame. spills from dripping to lower shelves.
Page 8: Additional Features
About the additional features. Not all features are on all models. Slide-out beverage rack holds 12 cans of TOremove, slide tile lack out to tile stop soda or 2 wine/water botdes (lengthwise). position, lift the rack up and past tile stop Sheff Saver Rack (onsomemodels) It can be removed for cleaning.
Page 9: Automatic Icemaker
About crisper removal ww_.GEAppliances.com Not all features are on all models. Crisper Removal ToRemove: Whenthedoorcannotbe fullyopened, remove the drawer t:arthest from tile door These drawers can be removed easily by first. Make sure tile drawer closest to tile lifting up slightly while pulling tile drawer door is fially closed.
Page 10: Care And Cleaning
Careand cleaning of the refrigerator. Cleaning the Outside Thedoorhandlesandtrim.Clean with a cloth Donot wipetherefrigerator w ith a soileddish cloth or wet towel These mayleavea residue that dampened with soapy water. Dry with a soft cloth. canerodethepaint.Donotusescouring pads, powdered cleaners, bleachor cleaners containing Keep the outside clean.
Page 11 ww_.GEAppliances.com Behind the Refrigerator When pushingtherefrigerator back,makesureyou Be carefill when moving tim refiigerator don'troll overthepowercordor icemaker s upply line avcay from tbe w_ll. All types of floor &n somemodels). coverings can be damaged, particularly cushioned coverings and tbose with embossed surfaces.
Page 12: Replacing The Light Bulbs
Replacing the light bulbs. Turning the control to the 0 (off) position does not remove power to the light circuit. Refrigerator Compartment A CAUTlON:Light .l sma ehot. Replace tile bulb with an appliance bulb of the same or lower wattage. On models with a light shield, replace Unplug the refrigerator.
Page 13: Installation Instructions
Installation Refrigerator Instructions Models 22 and 25 Questions?Call 800.GE.CARES (800.432.2737) or Visit www.GEAppliances.com In Canada,call 1.800.361.3400 or VisitourWehsite a t: www.geappliances.ca our Wehsite BEFORE YOU BEGIN CLEARANCES Allow the following clearances tor ease of installation, Read these instructions completely and carefully.
Page 14: Water Line Installation
Osmosis Water System, the only approved installation kit, 1/4" outer diameter to connect the refrigerator is with a GE RVKit. For other reverse osmosis water to the water supply. If using coppm; be sure both systems, follow the manufacturer's recommendations.
Page 15 • If you are using a GE SmartConnect '_ Refi'igerator Tubing kit, the necessary fittings are preassembled [] DRILL THE HOLE FOR THE VALVE to tile tubing. Drill a 1/4" hole in the water pipe (even if using a self-piercing valve) using a sharp bit.
Page 16 Make sure the tubing is fully inserted into tbe valve. Tighten the compression nut securely. For plastic tubing from a GE SmartConnect Refrigeratur Tubing kit, insert the molded end Saddle-Type J JerticalCold of the tubing into the shutuff valve and tighten...
Page 17 SHUTOFF VALVE Tighten any connections that leak. Place the compression nut and ferrule (sleeve) onto tile end of the tubing as shown. On GE SmartConnect Refrigerator Tubing kit, the nuts are already assembled to the tubing. Reattach the access coven...
Page 18: Rever_Ing The Door Swing
Installation Instructions INSTALLING THE WATER LINE (CONT.) [] PLUG IN THE REFRIGERATOR START THE ICEMAKER Set the icemaker power s,Mtch to the I (On)position. Arrange the coil of tubing so that it does not vibrate against the back of tile refi'igerator or against the The icemaker will not begin to operate until it reaches...
Page 19 Installation Instructions [] REMOVE THE FREEZER DOOR [] REMOVE THE REFRIGERATOR DOOR Tape the door shut with masking tape. Tape the door shut with masking tape. Remove the center hinge pin with a 3/4" socket. Hinge Pin Remove the hinge cover on top of the fi'eezer door (on some models).
Page 20 Installation Instructions REVERSING THE DOOR SWING (CONT.) [] TRANSFER BOTTOM HINGE [] TRANSFER CENTER HINGE BRACKET TO THE LEFT BRACKET TO THE LEFT Remove the base grille by pulling it straight out. Remove the center hinge bracket by removing the three screws. Using a socket drivel;...
Page 21 Installation Instructions [] TRANSFER REFRIGERATOR DOOR [] TRANSFER REFRIGERATOR DOOR HANDLE TO THE RIGHT HANDLE TO THE RIGHT (CONT.) Transfer the door plug button to tile opposite side. To remove the handle: Remove the plug button carefully prying under the edge with a putty knifE.
Page 22 Installation Instructions REVERSING THE DOOR SWING (CONT.) [] REHANG THE REFRIGERATOR [] TRANSFER FREEZER DOOR DOOR HANDLE TO THE RIGHT Remove the screws holding the handle to the top Lower the refrigerator door onto tile bottom and bottom of tile doo_: Remove handle. hinge pin.
Page 23 Installation Instructions REHANG THE FREEZER DOOR Lower the freezer door onto the center hinge pin. CenterHingePin LiR the top hinge so the pin fitsinto the door socket. Support the door on the handle side and make sure tile door is straight and the gap between tile doors is even across the fi'ont.
Page 24: Normal Operatingsounds
Normal operatingsounds. Newer refrigerators sound different from older refrigerators. Modem refrigerators have more features and use newer technology. Do you hear what I hear? These sounds are normal HUMMM... WHIR! WHOOSH... • The new higb efficiency compressor may run faster and longer tban your old refrigerator and you may You may hear the fhns spinning.
Page 25: Troubleshooting Tips Before You Call For Service
Before you call for service.., ww .GEAppliances.co Troubleshooting tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Possible Causes What To Do Refrigerator in defrost cycle. • Wait about 40 minutes for defrost cycle to end.
Page 26 Before youcall for service... Troubleshooting tips Possible Causes What To Do Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes. Food transmitting odor/taste * Wrap foods well. to ice cubes, Interior of refrigerator • See Care and cleaning. needs cleaning, Door left open.
Page 27: Product Registration
800.626.2224 Place your confidence in GE and call us in the U.S. toll-free at for more information. All bi al_ds covel-ed, lip to _0 yea*_ old, irl tile continemal U.S.
Page 28 * Please proxdde your e-mail address to receive, ,,ia e-mail, discounts, special ofters other important communications from GE Appliances (GEA). 177 Check here if you do not want to receixe communications from GEA's carefully selected partners. GEAppliances GEConsumer Products General E lectric Company Louisville, Kentucky www.GEAppliance_com...
Page 29 What is covered How Long Warranted Parts Labour (From Date of Sale) Repair or Replace at Camco's Option Compressor: GE Profile Models Ten (10) Years Ten (10) Years Five (5) Years GE Models Five (5) Years Five (5) Years Five (5) Years...
Page 30: Warranty Lbr U.s. Customers
(excluding water filter cartridge) which Pails due m a defect in materials or workmanship. During this full one-year warranty, GE will also proxdde, free of charge, all labor and ha-home smMce to replace the defective part. Any part of the sealed refrigerating system ( tbe compressoi;...
Page 31 Notes. ww_.GEAppliances.com...
Page 32: Consumer Support
In Canada: www.geapplianees.ca ScheduleService 1,1 t he u.s.: w ww.GEAppliances.co Expert GE repair service is only one step away from your dool: Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
