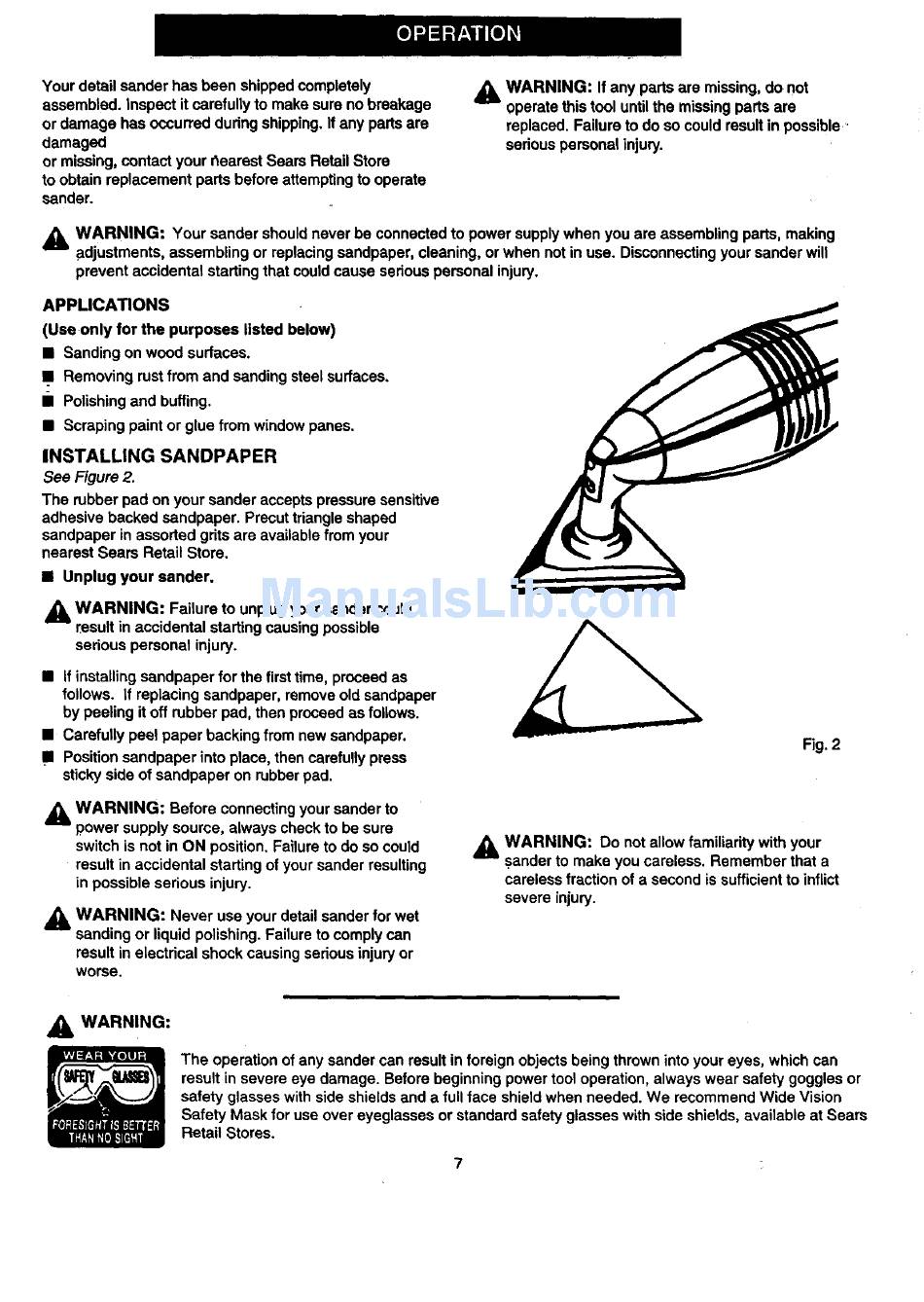

Craftsman 315.116301 Owner's Manual page 7

Detail sander double insulated
Hide thumbs

Advertisement

Yourdetail s ander hasbeenshipped completely
assembled, inspect it carefully to make sure no breakage
or damage has occurred dudng shipping. If any parts are
damaged
or missing, contact your r_earest Sears Retail Store
to obtain replacement parts before attempting to operate
sander.
WARNING:
If any parts are missing, do not
operate this tool until the missing parts are
replaced, Failure to do so could result in possible,
sedous personal injury.
&
WARNING:
Your sander should never be connected to power supply when you are assembling parts, making
adjustments, assembling or replacing sandpaper, cleaning, or when not in use. Disconnecting your sander will
prevent accidental starting that could cause sedous personal injury.
APPLICATIONS
(Use only for the purposes listed below)
Sanding on wood surfaces.
Removing rust from and sanding steel surfaces,
II Polishing and buffing.
Scraping paint or glue from window panes.
INSTALLING
SANDPAPER
See Figure 2.
The rubber pad on your sander accepts pressure sensitive
adhesive backed sandpaper. Precut triangle shaped
sandpaper in assorted grits are available from your
nearest Sears Retail Store.
Unplug your sander.
_k
WARNING:
Failure to unplug your sander could
result in accidental starting causing possible
serious personal injury.
if installing sandpaper for the first time, proceed as
follows.
If replacing sandpaper, remove old sandpaper
by peeling it off rubber pad, then proceed as follows.
Carefully peel paper backing from new sandpaper.
II Position sandpaper into place, then carefully press
sticky side of sandpaper on rubber pad.
_k
WARNING:
Before connecting your sander to
power supply source, always check to be sure
switch is not in ON position. Failure to do so could
result in accidental starting of your sander resulting
in possible serious injury.
,_
WARNING:
Never use your detail sander for wet
sanding or liquid polishing. Failure to comply can
result in electrical shock causing sedous injury or
worse.
Fig. 2
_,
WARNING:
Do not allow familiarity with your
sander to make you careless. Remember that a
careless fraction of a second is sufficient to inflict
severe injury.
,_
WARNING:
The operation of any sander can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields, available at Sears
Retail Stores.
7
