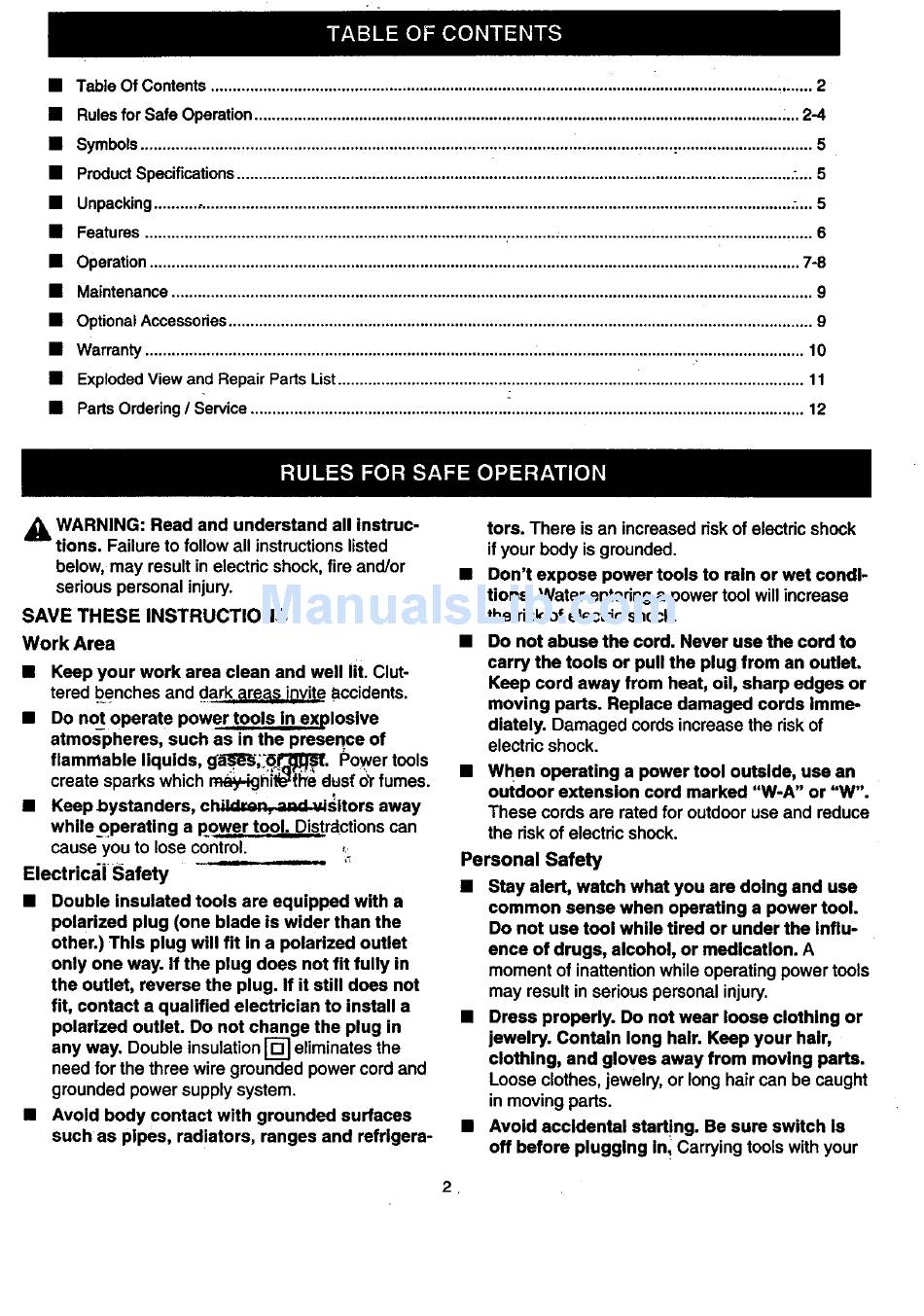

Table Of Contents ...........................................................................................
.i........ i ............................ ,,..... 2
•
Rules for Safe Operation .........................................................................................................................
.... 2-4
•
Symbols ...................................................................................................
....................... :...............................
5
•
Product Specifications ...............................................................................................................................
.;... 5
•
Unpacking ..................................................................................................................................................
:.... 5
•
Features .........................................................................................................................................................
6
•
Operation .....................................................................................................................................................
7-8
•
Maintenance ...................................................................................................................................................
9
•
Optional Accessories ......................................................................................................................................
9
•
Warranty .........................................................................................
.................................... ;, ........................ 10
•
Exploded View and Repair Parts List ....................................................................
.......................................
11
•
Parts Ordering / Service ...........................................................
_ ...................................................................
12
_
WARNING:
Read and understand
all instruc-
tions. Failure to follow all instructions listed
below, may result in electdc shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
•
Keep your work area clean and well lit. Clut-
tered benches and dark areas invite accidents.
•
Do not operate
power tools _ explosive
atmospheres,
such as in the presence
of
flammable
liquids,
g_,_lS_.
Power tools
,_
*,l _
,_
,,
create sparks which may..ighl;_(l_e dusf o'rfumes.
•
Keep bystanders,
c_sitors
away
while_operating
a Power
tool. DistrActions can
cause you to lose control.
,_
Electrical Safety
•
Double
insulated
tools are equipped
with a
polarized
plug (one blade is wider than the
other.) This plug will fit in a polarized
outlet
only one way. If the plug does not fit fully in
the outlet,
reverse
the plug. If it still does not
fit, contact
a qualified
electrician
to install a
polarized
outlet.
Do not change
the plug in
any way. Double insulation []
eliminates the
need for the three wire grounded power cord and
grounded power supply system.
•
Avoid body contact
with grounded
surfaces
such as pipes, radiators,
ranges and refrigera-
tors. There is an increased risk of electdc shock
if your body is grounded.
•
Don't expose power tools to rain or wet condi-
tions. Water entedng a power tool will increase
the risk of electric shock.
•
Do not abuse the cord. Never use the cord to
carry the tools or pull the plug from an outlet.
Keep cord away from heat, oil, sharp edges or
moving parts. Replace damaged cords imme-
diately. Damaged cords increase the risk of
electric shock.
•
When operating a power tool outalde, use an
outdoor extension cord marked "W-A" or "W".
These cords are rated for outdoor use and reduce
the risk of electdc shock.
Personal
Safety
•
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use tool while tired or under the influ-
ence of drugs, alcohol, or medication.
A
moment of inattention while operating power tools
may result in serious personal injury.
•
Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught
in moving parts.
•
Avoid accidental starting. Be sure switch is
off before plugging in, Carrying tools with your
2
.
