Craftsman EZ 917.272130 Owner's Manual

20.0 hp electric start 46" mower" 6 speed transaxle lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

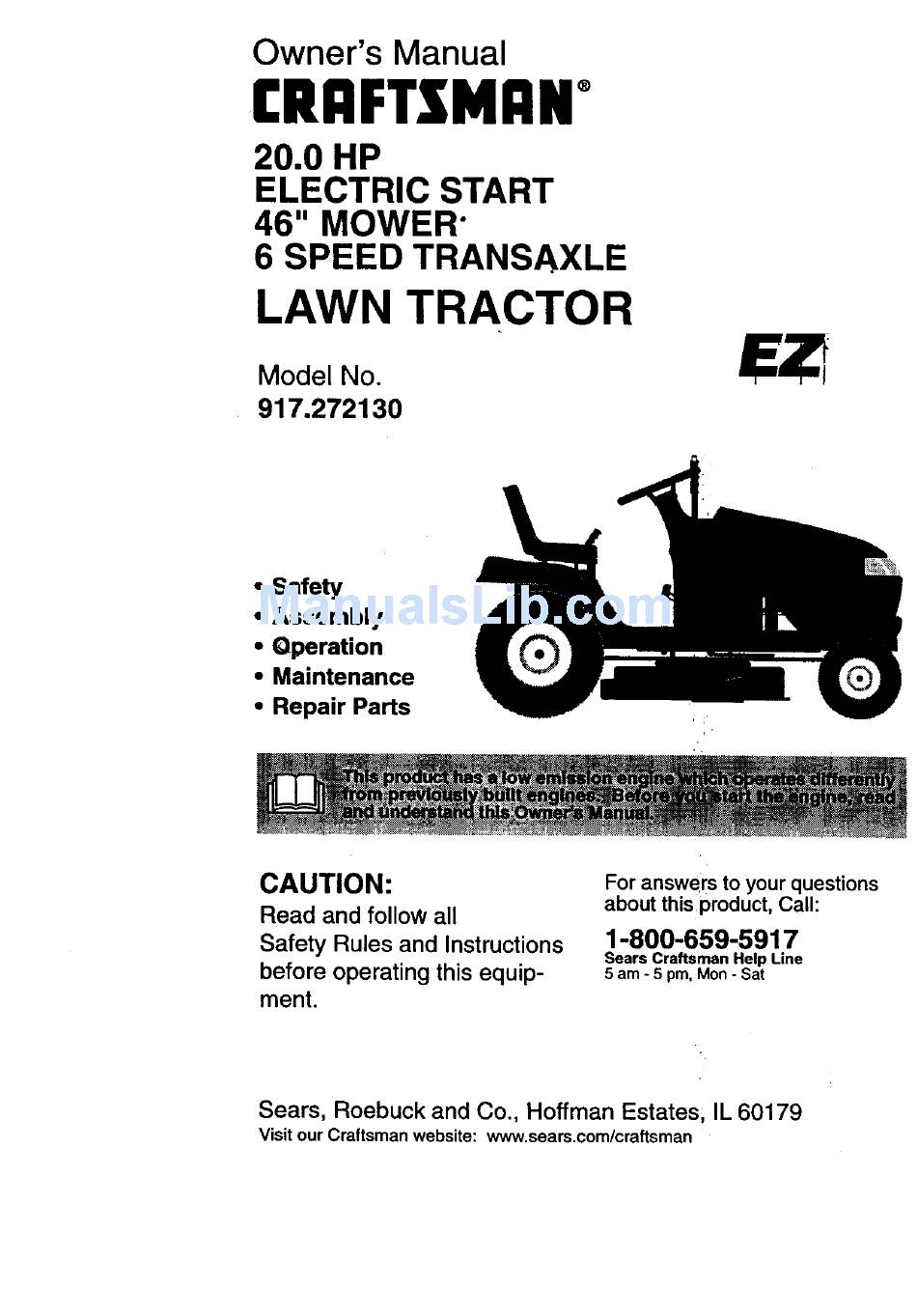

Owner's Manual
rRAFTSMAN
20.0 HP
ELECTRIC
START
46" MOWER"
6 SPEED TRANSAXLE
LAWN TRACTOR
Model No.
917.272130
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equip-
ment.
For answers to your quest ons
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Estates; IL 60179
Visit our Craftsman website:
www, sears,com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ 917.272130 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftsman EZ 917.272130

Summary of Contents for Craftsman EZ 917.272130

  • Page 1 For answers to your quest ons about this product, Call: Read and follow all 1-800-659-5917 Safety Rules and Instructions Sears Craftsman Help Line before operating this equip- 5 am - 5 pm, Mon - Sat ment. Sears, Roebuck and Co., Hoffman Estates; IL 60179...

  • Page 2: Limited Two-Year Warranty

    30 days from the date of purchase. Please contact your nearest service center. After 30 days from the date of purchase, warranty.service is available by taking your Craftsman riding equip- ment to your nearest SearsService Center. (In-home warranty...

  • Page 3: Slope Operation

    • Turn • Do not try to stabilize the machine by off blades when not mowing. putting your foot on the ground. • Stop engine before removing grass • Do not use grass catcher on steep catcher or unclogging chute. slopes.
  • Page 4 • Never make adjustments Or repairs with • Mower blades are sharp and can cut. the engine running. Wrap the blade(s) or wear gloves, • Grass catcher components are subject use extra caution when servicing them. to wear, damage, and deterioration, •...

  • Page 5: Maintenance

    MIN. CCA:240 CASE SIZE: U1R BLADE BOLT 27-35 FT. LBS. TORQUE: CONGRATULATIONS on your purchase of a Craftsman Tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact your nearest Sears Authorizod Service Center.
  • Page 6 , Parts Bag contents shown full size (1) Knob (1) Shoulder Bolt 5/16-18 (1) Washer 17/32 x 1-3/16 x 12 Gauge (2) Washers 3/16 x 3/4 x 16 Gauge _#10 x 5/8 (2) Lock (2) Weld Nuts #10 Washers #10 (3) Retainer Spnngs (double loop) (4) Retainer Springs (single loop)
  • Page 7 Parts packed separately in carton Mulcher Plate Seat Video Cassette Steering Wheel Parts Bag Manual © (2) Shoulder (2) Washers 3/8x 7/8 x 14 Gauge Bolts (2) Gauge Wheels (2) Center lock Nuts Parts Bag contents not shown full size (2) Front Unk Assemblies ___(I I {2)<_Ke_...
  • Page 8 Your newtractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all pads and hardware yo u assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

  • Page 9: Check Tire Pressure

    HOW TO SET UP YOUR TRACTOR CHECK TIRE PRESSURE CHECKBATTERY The tires on your tractor were ovednflated at the factory for shipping purposes. • Lift hood to raised position. Correct tire pressure is importantfor best • If this battery is put into service after cutting performance.
  • Page 10 CHECK MOWER LEVELNESS • Connect anti-sway bar to chassis bracket under left footrest and retain For best cutting results, mower should be with double loop retainer spring. properly leveled. See "TO LEVEL • Turn height adjustment knob clockwise MOWER HOUSING" in the Service and to remove slack from mower suspen- Adjustments...
  • Page 11 v"CRECKLIST Please review the following checklist: ,# All assembly instructions have been completed. ,/No remaining loose parts in carton. ,/Battery is properly prepared and charged. (Minimum 1 hour at 6 amps). 4" Seat is adjusted comfortably and tight- ened securely. •/"...
  • Page 12 These symbols may appear on your tractor or in literature supplied with the product. Learn and Understand their meaning. • REVERSE FORWARD FAST SLOW BATTERY CAUTION OR WARNING LIGHTS ON OVER TEMP ENGINE ON ENGINE OFF OIL PRESSURE LIGHT PARKING BRAKE UNLOCKED MOWER LIFT FUEL...
  • Page 13 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Ignition Position Switch Ammeter Clutch Switch Throttle...
  • Page 14 Jil! The operationof anytractorcan resultin foreignobjectsthrownintothe I[ =,-£-,, ] eyes, which can result in severe eye damage. A_ays wear safety glasses or eye shields while operating your tractor or penorming any adjustments or repairs. We recommend a wide vision sarety mask over spectacles, or stan- dard safety glasses.

  • Page 15: To Operate On Hills

    • The average lawn should be cut to _CAUTION: Do not operate the mower approximately 2-1/2 inches during the without either the entire grass catcher, on cool season and to over 3 inches during mowers so equipped, or the discharge hot months.
  • Page 16 TOWING CARTS AND OTHER ,ACAUTION" Fill to bottom of gas tank ATTACHMENTS filler neck. Do not overfill. Wipe off any Tow only the attachments that are recom- spilled oil or fuel. Do not store, spill or use mended]by and comply with. specifications gasoline near an open flame.

  • Page 17: Mowing Tips

    MOWING TIPS MULCHING'MOWING TIPS • Tire chainscannotbe usedwhen the IMPORTANT: For best performance, keel mowerhousingis attachedto tractor. mower housing free of built-up grass and • Mower should be properly leveled for trash. Clean after each use, best mowing performance. See "TO •...
  • Page 18 CUSTOMER RESPONSIBILITIES MAINTENANCE SC.'=DU'E AS YOU FILL.. eATES COMPLETE I_ SERVICE DATES REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades LubriCation Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
  • Page 19 TRACTOR IMPORTANT:"Blade bolt is Grade 8 heat treated. Always observe safety rules when per- Trailing Mandrel Assembly forming any maintenance. BRAKE OPERATION Edge Up Blade If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted.
  • Page 20 TO CHANGE ENGINE CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and ter- Determine temperature range expected before oil change. All oil must meet API minals can cause the battery to "leak" service classification SF, SG or SH. power.

  • Page 21: Engine Oil Filter

    Install replacement oil filter by turning FILTER clockwise until rubber gasket contacts Your engine will not run properly using a mounting surface, then tighten filter an dirty air filter. Clean the foam pre-cleaner additional 1/2 to 3/4 turn. after every 25 hours of operation or every Fill crankcase with new oil (See "TO season.
  • Page 22 CLEANING We do not recommend using a garden hose to clean your tractor unless the elec- • Clean engine, battery, seat, finish, etc. trical system, muffler, air filter and carbure- of all foreign matter. tor are covered to keep water out. Water •...
  • Page 23 TO LEVEL MOWER HOUSING Check adjustr_ent on right side of tractor. Measure distance "D" directly in front and Adjust the mower while tractor is parked behind the mandrel at bottom edge of on level ground or driveway. Make sure mower housing as shown. tiros are properly inflated (See "PROD- •...
  • Page 24 TO REPLACE MOWER DRIVE BEI'T • Be sure spring is securely hooked to pri- mary idler arm and bolt in mower hous- MOWER DRIVE BELT REMOVAL ing, • Park tractor on a level surface. Engage MOWER DRIVE BELT INSTALLATION parking brake. •...
  • Page 25 Check secondary idler arm and idler to TO REPLACE MOWER BLADE DRIVE see that they rotate freely. BELT Be sure spring is hooked in secondary Park the tractor on level surface. Engage idler arm and sway-bar bracket. parking brake. • Remove mower drive belt (See "TO Install new belt in lower groove of left...
  • Page 26 TO REPLACE MOTION DRIVE BI=LT NOTE: If additional clearance is needed to get to adjustment bolt, move mower Park the tractor on level surface. Engage deck height to the lowest position. parking brake. For assistance, there is a Gearshift Lever belt installation guide decal on bottom side of left footrest.
  • Page 27 TO START ENGINE WITH A WEAK • Reinstall tenTfinal guard. BATTERY • First connect RED battery cable to po,, twe (+) battery terminal with hex bolt &CAUTION: Lead-acid batteries gener- and keps nut as shown. Tighten secur, ate explosive gases. Keep sparks, flame •...
  • Page 28 ENGINE IMPORTANT: Never tamper with the Maintenance, repair, or replacement of the engine governor, which is factory set for emission control devices and systems, proper engine speed. Overspeeding the which are being done at the customers engine above the factory high speed set- expense may be performed by any non- ting can be dangerous.
  • Page 29 Immediately prepare your tractor for stor- Also, experience indicates that alcohol age at the end of the season or if the trac- blended fuels (called gasohol or using tor will not be used for 30 days or more. ethanol or methanol) can attract moisture which leads to separation and formation of _,CAUTION:...

  • Page 30: Troubleshooting

    TROUBLESHOOTING CHART' PROBLEM CAUSE CORRECTION Will not start • Out of fuel. • Fill fuel tank. • Engine not"CHOKED" • See "TO START ENGINE" pmpedy. Operation section. • Engine flooded. • Wait several minutes before attempting to start. • Bad spark plug. •...
  • Page 31 TROUBLESHOOTING CH .r_'r PROBLEM CAUSE CORRECTION • Set in Higher Cut! pbsi- Loss of power • Cutting too much grass/too fast. tion/reduce speed... • Throttle in "CHOKE" posi- • Adjust throttle control. tion. • Clean underside of mower • Build-up of grass, leaves housing.
  • Page 32 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Mower blades will • Obstruction in clutch • Remove obstruction. not rotate mechanism. • Worn/damaged mower • Replace mower drive belt. drive belt. • Replace idler pulley. • Frozen idler pulley. • Replace blade mandrel. •...
  • Page 33 TRACTOR - : MODEL NUMBER 917.272130 SCHEMATIC ÷ II BATTERY SOLENOID FUSE30AMP, AMMETER STARTER ;---_- *.n_ (OPTIONAL) R£0 ..ELECTRIC CLUI"CH CLUTCH / BRAKE (PEDAL • ..SEAT SWITCH (NOT OCCUPIED) ©: OPERATOR PRESENCE RELAY #1 FUEL t FUEL SHUT-OFF SOLENOID HEADLIGHTS RI-LAy...
  • Page 34 TRACTOR - - MODEL NUMBER 9_7.272130 ELECTRICAL • • • ' 34...
  • Page 35 73510400 Nut, Keps Hex 1/4-20 UNC 145491 Cable, Ground, 6 Gauge, Black,2!" 160784 Switch, Plunger NormalOP Olive 163£68 Switch, Ignition'DelthPush-In 140403 Key, Molded, Craftsman 166166 Harness, Ignition 131563 Cover, Term!na! Solenoid 145673 122822X Ammeter, R_ctangutar15 Amp Switch PTO 3PDT Red Delta...

  • Page 36: Chassis And Enclosures

    TRACTOR "-- MODEL NUMBER 917.272130 CHASSIS AND ENCLOSURES 17_._ "_-_ - _1s9 eo--;i •...
  • Page 37 TRACTOR - -MODEL NUMBER 917.272130 CHASSIS AND ENCLOSURES PART DESCRIPTION 166819 ChassisAssembly ,140356 Drawbar 17490612 Screw,'t'hd., Roll. 3/8-16x3/4 163976 Dash STD533710 ,Bolt, Carriage 3/8-16x3/4 163455 Panel, Dash, LH 163456 Panel, Dash, RH 161023X558 HoodAssembly 162026 Plate BatterySTYT 19131312 Washer 13/32 x 13/16 x 12 Gauge STD541437 LooP, nut 160564X558...

  • Page 38: Ground Drive

    TRACTOR" - MODEL NUMBER 917.27'2130 GROUND DRIVE...
  • Page 39 TRACTO[" _ MODEL NUMBER 917.272130 GROUND DRIVE PART PART DESCRIPTION DESCRIPTIQN Nut Crown L0ck5/16-18 UNC ..Transaxle (See Breakdown) STD541431 Peerless, Model 206-545(3 105710X Unk, CkJtch : 146682 Spring, Return, Brake 105709X Spring,Clutch Return 123666X Pulley, Transaxle STD523712 Bolt Fin Hex 3/8-16 x 1-1/4 t2000028 Ring, Retainer "...

  • Page 40: Steering Assembly

    TRACTOR ; - MODEL NUMBER 917.2"/'2130 STEERING ASSEMBLY "L _,,] /J...
  • Page 41 TRACTOR - ._MODEL NUMBER 917.272130 STEERING ASSEMBLY KI-_Y PART DESCRIPTION 159944X428 Wheel, Steedng 154427 Axle, Asm Front 156483 Spindle, Asm Lh 157473 Spindle, Asm Rh 6266H Bearing, Race Thrust Harden 121748X Washer, 25/32 x 1 518x 16ga Washer, 27/32 x I 1/4 x 16 Ga 19272016 12000029 Ring, Klip #t5304-75...

  • Page 42: Optional Equipment

    TRACTOR: ; - MODEL NUMBER 917.27'2130 ENGINE OPTIONAL EQUIPMENT ." Spark Arrester "_ _'_-...
  • Page 43 TRACTOR - -MODEL NUMBER 917.272130 ENGINE PART, DESCRIPTION 164067 Control Throt 17720410 Screw _exThd Cut 1/4-20x516 Engine (See Breakdown) ..BriggsModel 407777-0121-E1 149723 MufflerAsm Twin Lo-tone 1605 r • Exhaust Asm RH B&S 20 HP VealIntek 1595 Exhaust Asm Lh B&S 20 HP Vert Intek 1501 Bolt 5/16-18 Uric x 3/4 w/sems 16,?_75...

  • Page 44: Seat Assembly

    TRACTOR- - MODEL NUMBER 917.272130 SEAT ASSEMBLY PART PART DESCRIPTION DESCRIPTION 1401'24 Seat 121248X BushingSnap BIkNy150 Id 140551 BracketPnt PivotSeat (blk) 720£_'11; BoltRdhd Sht Nk 1/4-20x1-1/2 STD523710 BoltF_ Hex 3/8-16unc X 1 12124_,,. Spacer Spilt 19131610 Washer 13/32 X 3/4 X 10 Ga 123740X Spdng 145006...
  • Page 45 133644 Decal, Uft Handle 167330 Decal,'Dash 138311 Pad FootrestLH STLT 166887 Decal, Deck F..Z3 154515 Pad Footrest RH STLT 163204 Decal, Fender, Craftsman 1545_16 Owner'sManual,. English 156439 Decal,iFender Danger 168149 164088 Decal,-,Brake Clutch Stph 168149 Owner's Manual, Spanish 146046 Decal, V-Belt Ddve Schematic...

  • Page 46: Lift Assembly

    TRACTOR :- - MODEL NUMBER 917.2"/'2130 LIFT ASSEMBLY...
  • Page 47 TRACTO P •_. MODEL NUMBER 917.272130 LIFT ASSEMBLY PART DESCRIPTION t 59461 Wire Asm., Inner w/plunger 159476 Shaft Asm Uft 138284 Pin Groove 12000002 E Ring #5133-62 15211621 Washer 21/32 X 1 X 21 Ga 120183X Beadng Nylon 125631X Grip Handle Fluted 122365X Button Plunger 139865...

  • Page 48: Mower Deck

    TRACTOR- - MODEL NUMBER 917.27'2130 MOWER DECK...
  • Page 49 TRACTOR - -MODEL NUMBER 917.272130 MOWER DECK PART PART DESCRIPTION DESCRIPTIQN Pulley, Idler, Driven 164210 Housing,Mower 46' 144917 Spdng, Secondary 44/45/50 Vent 138457 BracketAsm., Sway Bar 137273 Screw, Thdroll 3/8-16 x 1-1/4 Tytt STD6,?.4008 Retainer Spring 17490620 130832 Arm, Suspension, Rear (Sway 122052X Spacer, Retainer Bar)
  • Page 50 TRACTOR _-- MODEL NUMBER 917.272130 PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C 157, ,41A...
  • Page 51 TRACTOR - -MODEL NUMBER 917.272130 PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C PART PART DESCRIPTION DESCRIPTION, Brake Lever Transaxle C, er 790079 772147 780086A Needle Bearth_ ,d() 792073A Screw 1/4 - 20 X1-1/4(_ Transaxle Case 792085A Screw 1/4 - 20 x 2 1/4(_ 770128 Countershaft 792075...
  • Page 52 TRACTOR - - MODEL NUMBER 917.272130 BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 0121-E1 929 _ • 10 11_ 213_ 267 _ _" 188 "_ * REQUIRESSPECIALTOOLS TO INSTALL" SEE REPAIR INSTRUCTIONMANUAL 447A 287# 1031 O, 1033 VALVE OVERHAUL KiT 75o a •...
  • Page 53 TRACTOR - - MODEL NUMBER 917.272130 BRIGGS ENGINE - MODEL NUMBER 40T777, TYPE NUMBER 012i-E1 s--_ I S4I_\_ 868 _"_ ..'zr 3_.__?_ "_ "-_ "_ 1029 % "'_ "_--_J 1100 _ ,.._ 1023 1022 13_' 211 _ 1023A 303.'_ Isos._..+Sz 1212_ TO,,+rAU+S,E.,,+., •...
  • Page 54 TRACTOR:- - MODEL NUMBER 917.272130 BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 0121-E1 74'_ 635 '- "f r- e 526 I "" 501 _ ,'._ 78 9 _ __j_a j:,, 332® I-_-J- ..I • 57_405 uv _ 358 GASKET SET 163_276 ,o.i .o2 1...
  • Page 55 TRACTOR -' MODEL NUMBER 917.272130 BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 012i-E1 PART PART DESCRIPTION DESCRIPTION ,' Fuel Transfel'Tube 690231 CylinderAssembly 499803 lu Gasket-Flaat 499585 Bushing-Cylinder 690994 Choke Shaft Kit " 690926 + Seal-Oil 499807 I Nozzle-Carburetor 690069 Sump-Engine 499808 Key-Timing...
  • Page 56 TRACTOR - - MODEL NUMBER 917.2q'2130 BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 0121-E1 PART PART DESCRIPTION DESCRIPTION 691261 _-U Gasket-Exhaust Washer (Stader Cable) 690970 691008 Knob-AirCleaner 690960 Screw (Rocker Cover) 691064 Aitemator 691040 Hose-Vacuum 691185 Regulator * 691003 Screw (Choke ControlBracket) 691029 Nut (Gov.
  • Page 59 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL Operatb your Tractor up a-ridd0wntlle face Of sldl_es (not I greater than 15°), never across the face. Make turns gradu- ally to prevent tipping or loss of control. Exercise extreme caution when changing dlrecUon on slopes.
  • Page 60 For in-home major brand repair service: Call 24 hours a day, 7 days a week 1-800-4-MY-H 0 M EsM (1-800-469-4663) Para pedir serviciode reparaci6n a domicilio 1-800-676-5811 In Canada for all your.service and r ts needs call Au Canada'pour tout le service _'J les pieces 1-800-665-4455 For the repair or replacement parts ybu need: Call 6 am-11 pm CST, 7 days a we.ek...
