Page 1

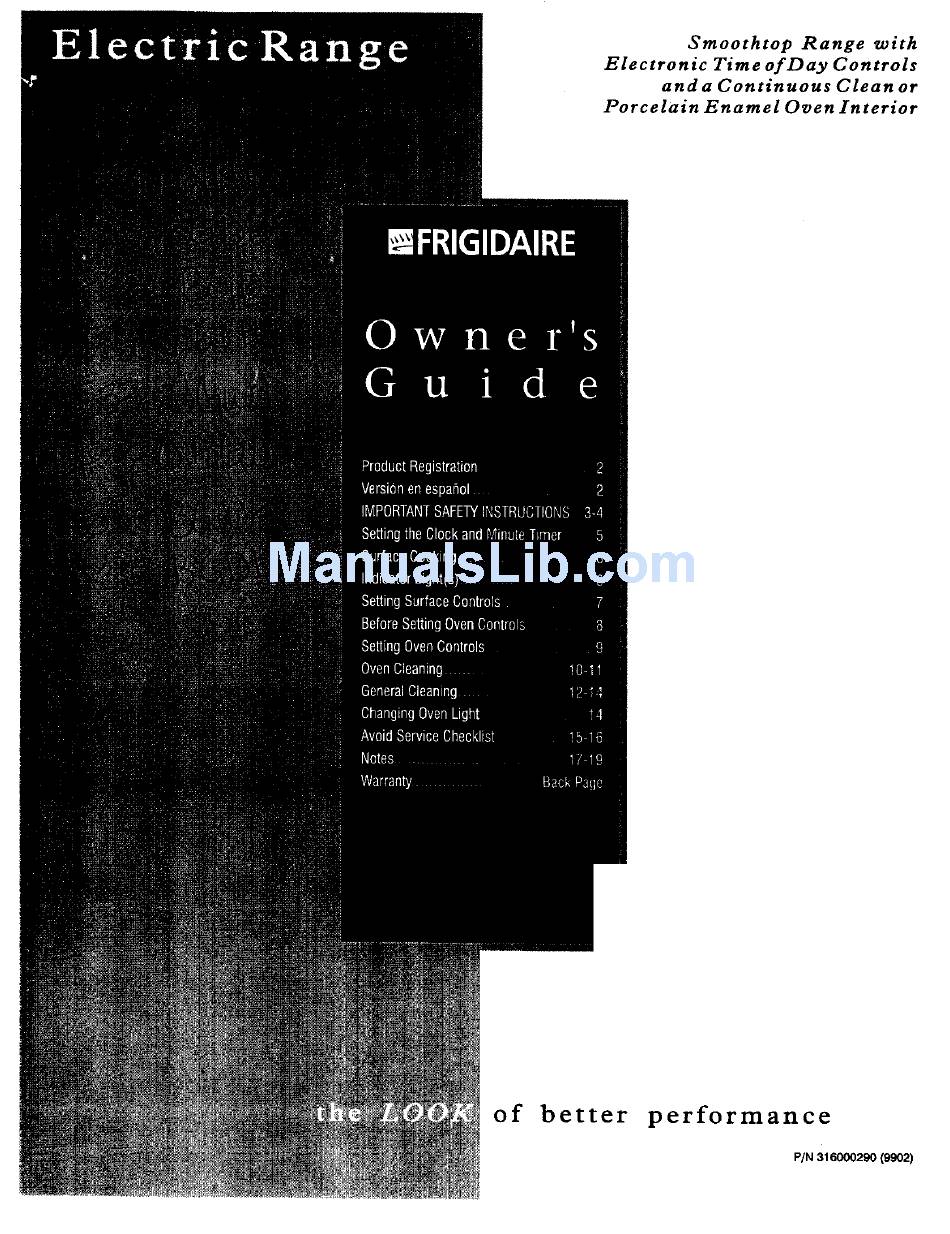

Smoothtop Range with Electronic Time of Day Controls and a Continuous Clean Porcelain Enamel Oven Interior better performance P/N 316000290(9902)
Record Your Model and Serial Numbers in completely, signed and returned to Frigidaire Home Products. Record in the space provided below the model and serial numbers found on the right side of the oven front frame in the storage compartment or on the oven floor shield.
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This guide contains important safety symbols and instructions. Pleasepay attention to these symbols and followall instructions given. Here is a brief explanation of the use of these symbols. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
Page 4
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP OVEN • Know which knob controls each surface heating unit. Place • Use Care When Opening Oven Door or Warmer Drawer a pan of food on the unit before turning it on, and turn the unit equipped)--Stand to the side of the range when opening...
Your model may be equipped with the clock shown below. Follow the Setting the Clock and instructions to set the clock and minute timer on your range. Minute Timer To Set the Clock (some models) When the range is first plugged in, or when the power supply to the range has been interrupted, nl 2:00"...
Surface Cooking Ceramic-Glass Cooktop The ceramic-glass cool<top has electric heating coils located below the surface of the glass. The design of the glass cooktop outlines the area of the surface unit below. Most importantly, make sure the diameter of the pan matches the diameter of the unit.
Setting Surface To Operate Radiant Surface Units (If equipped) Place cooking utensil on the surface element. Controls Push in and turn the Surface Control knob in either direction to the desired setting. Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking.
Arranging Oven Racks Before Setting Oven ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO Controls OPERATING THE OVEN). Always use oven mitts when using the oven, REMOVING & REPLACING OVEN ARRANGING OVEN RACKS WITH 5 Oven Vent Location RACKS RACK POSITIONS The oven vent is located...
To Bake Setting Oven Controls Arrange oven racks while the oven is still cool. See "Arranging Oven Racks' under Before Setting Oven Controls. Turn the Temperature Control knob to the desired temperature. Turn the Selector knob (if equipped) to BAKE. Preheat the oven for 10 to 12 minutes before baking.
Porcelain Enamel Oven Oven Cleaning Porcelain has a smooth finish and is a type of glass fused to metal. Oven cleaners can be used on all interior oven surfaces. Follow these cleaning precautions: General Cleaning Allow oven to cool before Removesoilsusing hot, soapy water.
Page 11
Continuous Cleaning Oven (some models) Oven Cleaning Continuous cleaning ovens have a special coating which is a porous ceramic (continued) material. This rough coating tends to prevent grease spatters from forming little beads which run down the side walls leaving streaks that require hand Adhere following cleaning...
General Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and heavy soiling as soon as possible. Regular cleanings will reduce the effort required for major cleanings later.
Page 13
Ceramic-Glass Cooktop Cleaning General Cleaning Correct and consistent cleaning is essential to maintaining your ceramic-glass cool(top. If food spills, grease spatters and metal rub-off from aluminum cool(ware are not removed, they may be burned onto the surface of the DO NOT use a cooktop I cool(top and cause permanent discoloration.
To Remove and Replace Oven Door General Cleaning To Remove Oven Door: (continued) Open the door. Remove screws located on the inside of the oven door near the hinges A The door is heavy. For1 (one on each side.) safe, temporary storage, lay the door I Closethedoortothequarter-openposition.
Avoid Service Checklist Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION Range is not level.
Page 16
Many factors affect baking results. Make sure the proper rack position is used. Center Poor baking results. food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time.
Page 20
State of Alaska) Your appliance is warranted by Frigidaire Home Products, a division of white Consolidated Industries, Inc. We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by Frigidaire Home Products Consumer Servicesor an authorized Frigidaire servicer.
