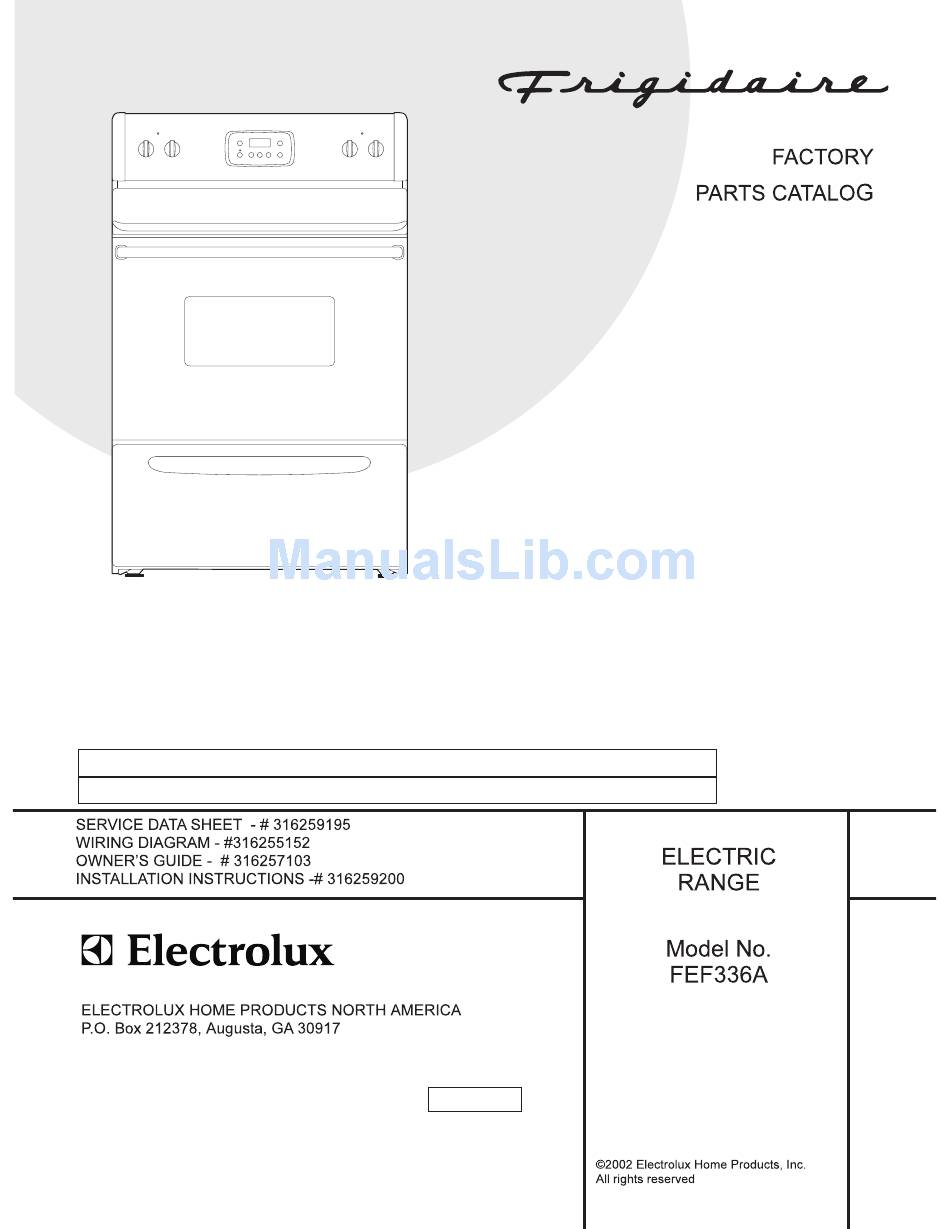

- Page 1 PRODUCT NO. BASE MODEL NO. FEF336ASC FEF336A COLOR MARKET white North America Publication No. 5995368924 020322 -EN/SERVICE /ECL...
- Page 2 BACKGUARD 03/02...
- Page 3 BACKGUARD POS. NO PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 316248900 Spacer,shield ,rear wall 316241000 Shield,end cap ,RH 316241001 Shield,end cap ,LH 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V 316220202 Support,backguard ,white ,RH 316220203 Support,backguard ,white ,LH 316240900 End Cap,white ,RH 316240901 End Cap,white ,LH 316246620 Panel,backguard ,white 20 #...
- Page 4 BODY 03/02...
- Page 5 BODY POS. NO PART NO DESCRIPTION 316201300 Back,main 316230102 Panel,bodyside ,white ,RH 316230103 Panel,bodyside ,white ,LH 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316212908 Hinge,oven door ,RH 316212909 Hinge,oven door ,LH 3203540 Panel,oven bottom 316081900 Pan,broiler 316082000 Insert,broiler pan 316116400 Receptacle,oven light 5303013071 Bulb/Lamp,oven light...
- Page 6 TOP/DRAWER 03/02...
- Page 7 TOP/DRAWER POS. NO PART NO DESCRIPTION 316011503 Drawer 316231500 Liner,drawer 316231305 Panel,drawer ,white 3051163 Glide,drawer ,rear 15 # 316010206 Element,surface ,8" ,2200 W ,radiant 15A# 316010205 Element,surface ,6" ,1200 W ,radiant 15B# 316224200 Element,surface ,9" ,2500W ,radiant 316251942 Main Top Assy,glass/steel ,white 316235900 Hinge,main top ,RH 316235901...
- Page 8 DOOR 03/02...
- Page 9 DOOR POS. NO PART NO DESCRIPTION 316050300 Glass,oven door ,white ,outer 316222709 Shield,oven door ,wool 316236801 Insulation,oven door 316088600 Glass,oven door ,inner 316230604 Liner,oven door 316001014 Screw,waf hd sq ,10-24 x 1.6 ,handle ,(2) 316008401 Washer,3/4 OD x 1/4 ID ,steel 316239700 Seal,oven door 316202702...
-
Page 10: Wiring Schematic
WIRING SCHEMATIC 03/02... -
Page 11: Wiring Diagram
WIRING DIAGRAM...
