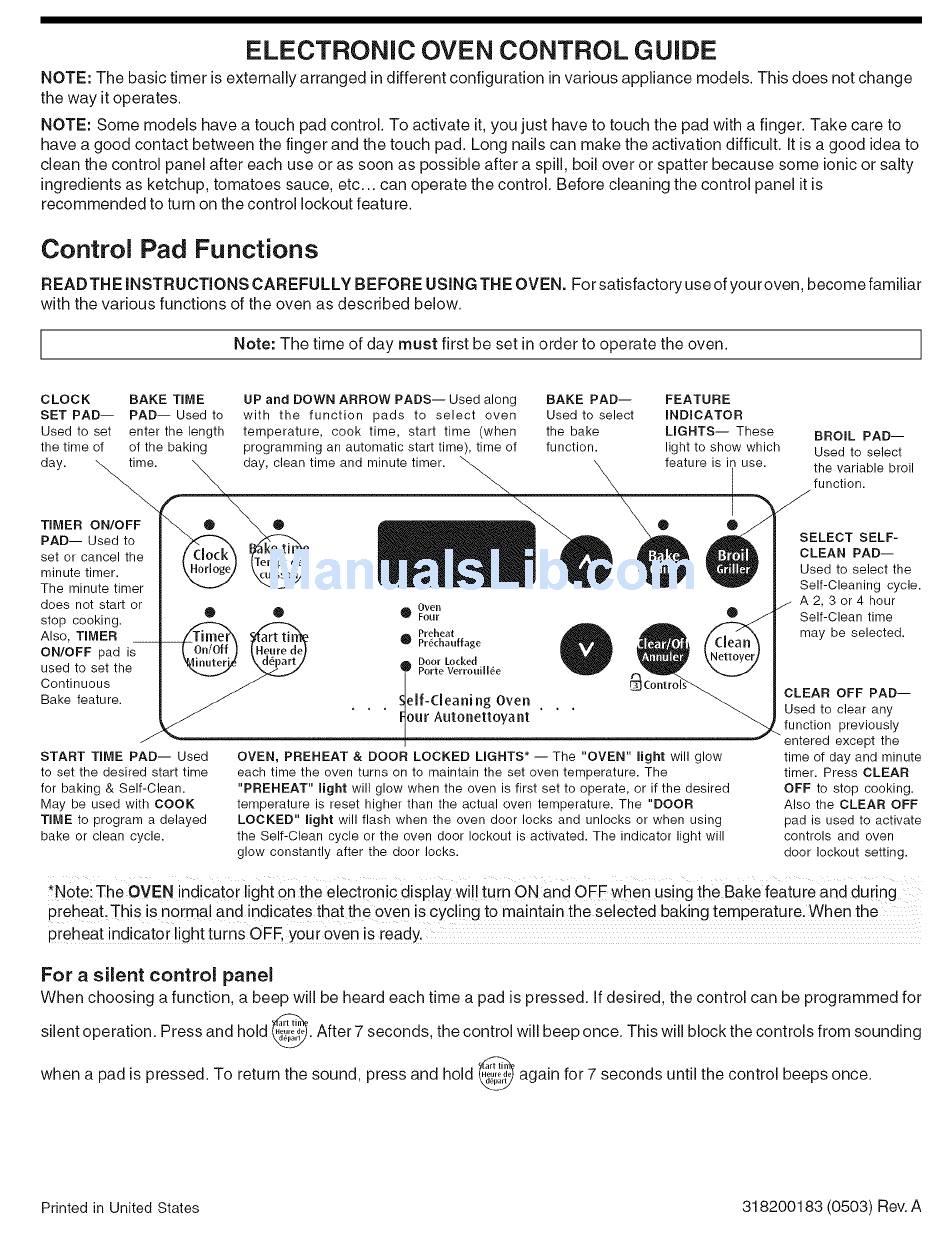

ELECTRONIC
OVEN CONTROL GUIDE
NOTE: The basic timer is externally arranged in different configuration in various appliance models. This does not change
the way it operates.
NOTE: Some models have a touch pad control. To activate it, you just have to touch the pad with a finger. Take care to
have a good contact between the finger and the touch pad. Long nails can make the activation difficult. It is a good idea to
clean the control panel after each use or as soon as possible after a spill, boil over or spatter because some ionic or salty
ingredients as ketchup, tomatoes sauce, etc.., can operate the control. Before cleaning the control panel it is
recommended to turn on the control lockout feature.
Control
Pad Functions
READTHE INSTRUCTIONS
CAREFULLY BEFORE USING THE OVEN. For satisfactory use of youroven, become familiar
with the various functions of the oven as described below.
I
Note: The time of day must first be set in order to
the oven.
I
operate
I
CLOCK
SAKE TIME
UP and DOWN ARROW PADS--
Used along
BAKE PAD--
FEATURE
SET PAD--
PAD--Used
to
with
the
function
pads
to select
oven
Used to select
INDICATOR
Used to set
enter the length
temperature,
cook
time,
start
time
(when
the bake
LIGHTS--
These
BROIL
PAD--
the time of
of the baking
programming
an automatic
start time), time of
function,
light to show which
Used to select
day.
time.
day, clean time and minute timer,
feature is in use.
the variable
broil
function.
TIMER
ON/OFF
PAD--
Used to
set or cancel the
minute timer.
The minute timer
does not start or
stop cooking.
Also, TIMER
ON/OFF
pad is
used to set the
Continuous
Bake feature.
START
TIME PAD--
Used
to set the desired start time
for baking & Self-Clean.
May be used with COOK
TIME to program a delayed
bake or clean cycle.
®
®
®
®
Oven
0
Four
Preheat
Pr_chauffage
Door
Locked
Porte Verrouill_e
eif-(:leaning
Oven
our Autonettoyant
OVEN, PREHEAT
& DOOR LOCKED
LIGHTS* -- The "OVEN"
light will glow
each time the oven turns on to maintain the set oven temperature.
The
"PREHEAT"
light will glow when the oven is first set to operate, or if the desired
temperature
is reset higher than the actual oven temperature.
The "DOOR
LOCKED"
light will flash when the oven door locks and unlocks or when using
the Self-Clean
cycle or the oven door lockout is activated.
The indicator light will
glow constantly
after the door locks.
SELECT
SELF-
CLEAN
PAD--
Used to select the
Self-Cleaning
cycle.
A2,3or4hour
Self-Clean
time
may be selected.
CLEAR
OFF PAD--
Used to clear any
function
previously
entered except the
time of day and minute
timer. Press CLEAR
OFF to stop cooking.
Also the CLEAR
OFF
pad is used to activate
controls
and oven
door lockout setting.
*Note:The OVEN indicator light on the electrenic display wi!! turn ON and OFF when using the Bake feature and during
preheat This is norma! and indicates that the oven is cycling t0 maintain the selected baking temperature, When the
preheat indicator light turns OFF, your oven is ready.
For a silent
control
panel
When choosing a function, a beep will be heard each time a pad is pressed, if desired, the control can be programmed for
silent operation. Press and hold _i_.
After 7 seconds, the control will beep once. This will block the controls from sounding
v
when a pad is pressed. To return the sound, press and hold I_
again for 7 seconds until the control beeps once.
Printed in United States
318200183
(0503) Rev. A
