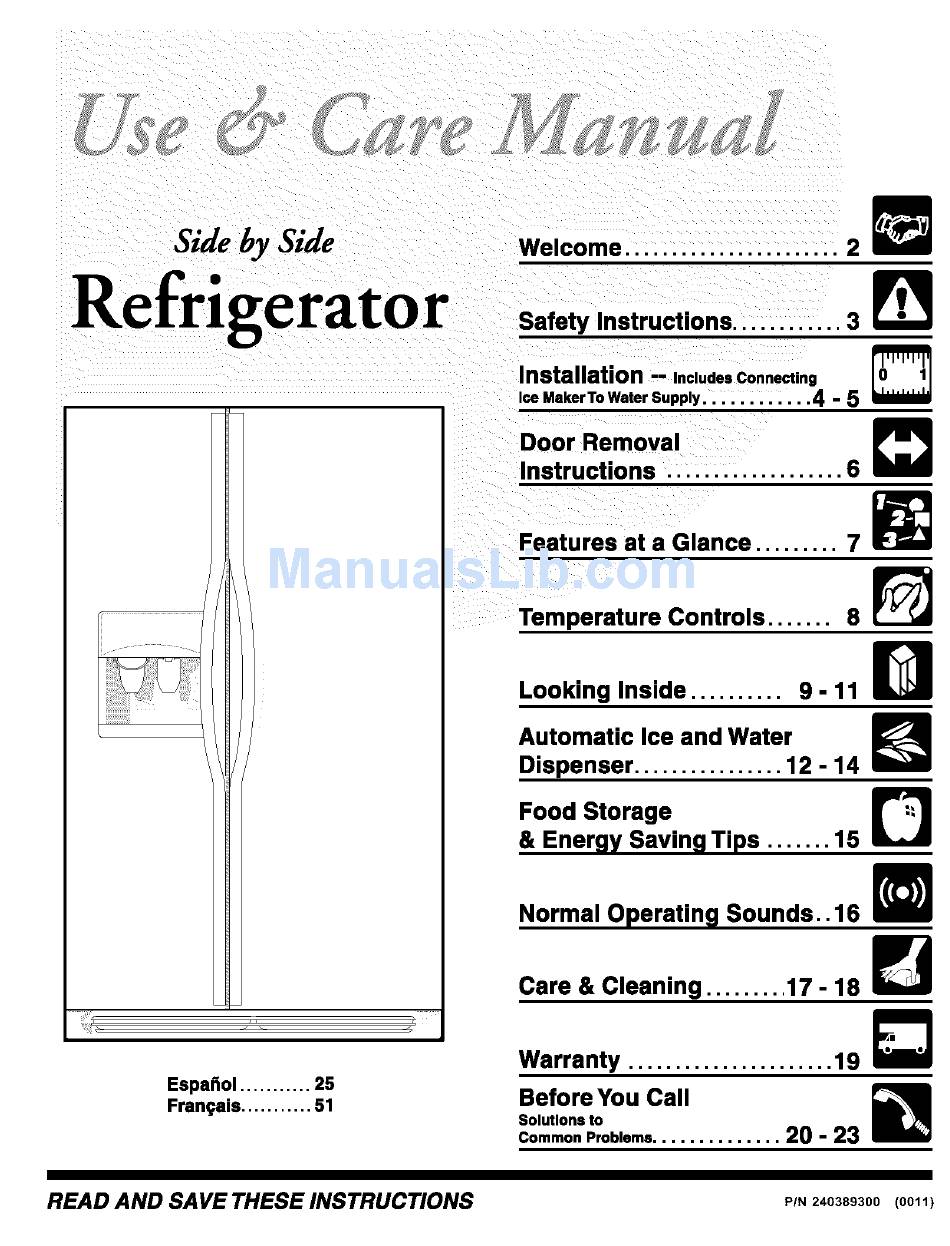

Side bySide
Refrigerator
_i!i!i!i!i!i!i!i!i!i!i_!i_i!_i
Espafiol ...........
25
Fran_ais ...........
51
Welcome .......................
2
Safety Instructions ...........
3 _l
Installation -- Includes
Ice MakerTo Water Supply ............
4 - 5
...................
6
Features at a Glance .........
7
m
Looking Inside ..........
9
Automatic Ice and Water
Dispenser ................
12
Temperature Controls .......
8 _]
-11 D
-14 D
& Energy SavingTips
.......
15 D
Care & Cleaning .........
17 - 18
Warranty ......................
19 _
Before You Call
Solutions to
Common Problems ..............
20 " 23
READ AND SAVE THESE INSTRUCTIONS
pIN 240389300 (oo11)
Advertisement
Table of Contents
Related Manuals for Frigidaire FRS26KW3AQ0
Summary of Contents for Frigidaire FRS26KW3AQ0
-
Page 1: Table Of Contents
Side bySide Welcome ....... Refrigerator Safety Instructions ... 3 _l Installation -- Includes Connecting 4 - 5 Ice MakerTo Water Supply .... Door Removal Instructions ....Features at a Glance ..Temperature Controls ..8 _] -11 D Looking Inside .._i!i!i!i!i!i!i!i!i!i!i_!i_i!_i Automatic Ice and Water -14 D... - Page 2 Congratulations on your purchase of a new refrigerator[ We Questions? here at Electrolux Home Products are very proud of our product and we are completely committed to providing you 1-800-944-9044 with the best service possible. Your satisfaction is our #1 priority.
- Page 3 Please Read All Instructions Before Using This Refrigerator. FOR YOUR SAFETY PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER Do not store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read pro- Risk of child entrapment duct labels for warnings regarding flammability and other Child entrapment and suffocation hazards.
- Page 4 LEVELING This Use & Care Manual provides specific operating instructions for your model. Use the refrigerator only as All four corners of your refrigerator must rest firmly on a instructed in this Use & Care Manual. Before starting solid floor. Your refrigerator is equipped with adjustable front refrigerator, follow these important first steps.
-
Page 5: Connecting Ice Makerto Water Supply
Installation - Connecting Ice Maker To Water Supply To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before con necting a water supply line to the refrigerator. To Avoid Property Damage: Copper tubing is recommended for the water supply line. -
Page 6: Door Removal Instructions
Door Removal Instructions Tools NecessQry: 3/8" Fb_d Phillis- head DOOR REMOVAL INSTRUCTIONS: CoverScrew If it is necessary to move the refrigerator through narrow doorways, Top Hinge follow these steps to remove the doors. Cover IMPORTANT: Before you begin turn freezer temperature control to Hinge OFF and remove electrical power cord from wall outlet. -
Page 7: Features At A Glance
Features At A Glance Freezer and Refrigerator SpillSafe" Controls --Sliding Shelf Ice Cream Shelf-_ __ Water Filter Ice Maker-_ ®1® f/ Door Bin -- ' Door r Bin Ice Container Pizza Shelf Rack r Bin Small Items and Cover )illSafe'" !fiFF-F1F1 Fixed Shelf Bottle... - Page 8 COOL DOWN PERIOD To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food. REFRIGERATOR & FREEZER CONTROLS NOTE: When first setting the Controls or when changing a setting, Wait 24 hours for the temperature to stabilize before making additional changes.
-
Page 9: Looking Inside
PIZZA SHELF (SOME MODELS) This shelf is attached to the freezer wall beside the ice dispenser container. This convenient area allows for storage of pizza and other tall items placed vertically between the ice dispenser container and the freezer wall. ICE CREAM SHELF (SOME MODELS) - Page 10 DOOR STORAGE Door bins and shelves are provided for convenient storage of jars, bottles, and cans. Frequently used items can be quickly selected. Some models have door bins that can accommodate gallon-sized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity.
- Page 11 CRISPERS (SOME MODELS) MEAT KEEPER (SOME MODELS) The crispers, located under the bottom refrigerator shelf, Some models are equipped with a Meat Keeper. Meat Keeper are designed for storing fruits, vegetables, and other fresh temperatures can be adjusted by sliding the Meat Keeper produce.
-
Page 12: Dispenser
ICE AND WATER DISPENSER FEATURES The ice and water dispenser conveniently dispenses chilled water, and ice CUBES or crushed ice, depending on the model. Some models have an Extra Ice feature that increases ice production for special occasions such as parties. To ooerate the ice dispenser, select the ice option desired using the touchpad. - Page 13 Automatic lce and Water Dispenser ICE DISPENSER TIPS Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the wire signal arm is in its "down" or ON position. The ice maker will then produce more ice. Occasionally shake the ice container to keep ice separated.
- Page 14 PureSource TM Ice and Water Filter (some models) NOTE: If you purchased a refrigerator with a PureSource TM Ice and Water filter, please read the following use and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the upper right back corner of the fresh food compartment.
-
Page 15: Food Storage
FOOD STORAGE IDEAS Fresh Food Storage The fresh food compartment should be kept between 34 ° F and 40 ° F with an optimum temperature of 37 ° F. Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling. -
Page 16: Normal Operating Sounds
UNDERSTANDING THE SOUNDS YOU MAY HEAR A. Evaporator The flow of refrigerant through the evaporator may Your new high-efficiency refrigerator may make unfamiliar create a boiling or gurgling sound. sounds. Don't be alarmed, these are all normal sounds. Hard surfaces, such as vinyl or wood floors, walls, and kitchen B. -
Page 17: Care & Cleaning
Keep yourrefrigerator andfreezer c lean toprevent odorbuild-up. Wipeupanyspills immediately andclean bothsections a t leasttwicea year.Neverusemetallic scouring pads, b rushes, a brasive cleaners or strongalkaline solutions onany surface. D o not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before cleaning. - Page 18 IF_[_IT_lIAv0id cuts when replacing light bulbs, wear gloves. REPLACING LIGHT BULBS Unplug refrigerator. Wear gloves as protection against possible broken glass. Remove light cover, if necessary. Unscrew and replace old bulb with an appliance bulb of the same wattage. Replace light cover, if necessary. Remember to plug the refrigerator back in.
-
Page 19: Warranty
REFRIGERATOR WARRANTY Your refrigerator is protected by this warranty WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR: PERIOD WE WILL: FULLONE-YEAR Oneyearfromboginal Payallcoststorrepaidngorreplacinganypartsofthis Costs service calls that listed under NORMAL WARRANTY purchase date appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER. - Page 20 PROBLEM CAUSE CORRECTION RUNNING OF REFRIGERATOR Compressor does not run. • Freezer control is OFF. • Set freezer control. See Temperature Controls section. • Refrigerator is in defrost cycle. • This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.
- Page 21 PROBLEM CAUSE CORRECTION TEMPERATURES ARE TOO WARM Freezer/Refrigerator • Doors are opened too • Warm air enters the refrigerator whenever the door is temperature is too warm. frequently or too long. opened. Open the door less often. • Door is slightly open. •...
- Page 22 PROBLEM CAUSE CORRECTION AUTOMA TIC ICE MAKER (CONTfN/JED) Ice maker is not making • ice maker is producing less • ice maker should produce approximately 4 - 5 enough ice. ice than you expect. pounds of ice every 24 hours. Extra Ice should produce up to 8 pounds of ice every 24 hours.
- Page 23 PROBLEM CAUSE CORRECTION WATER DISPENSER Dispenser will not • Household water line valve is • Open household water line valve. See PROBLEM dispense water, not open. section ICE MAKER IS NOT MAKING ANY ICE. • Freezer door is not closed. •...
