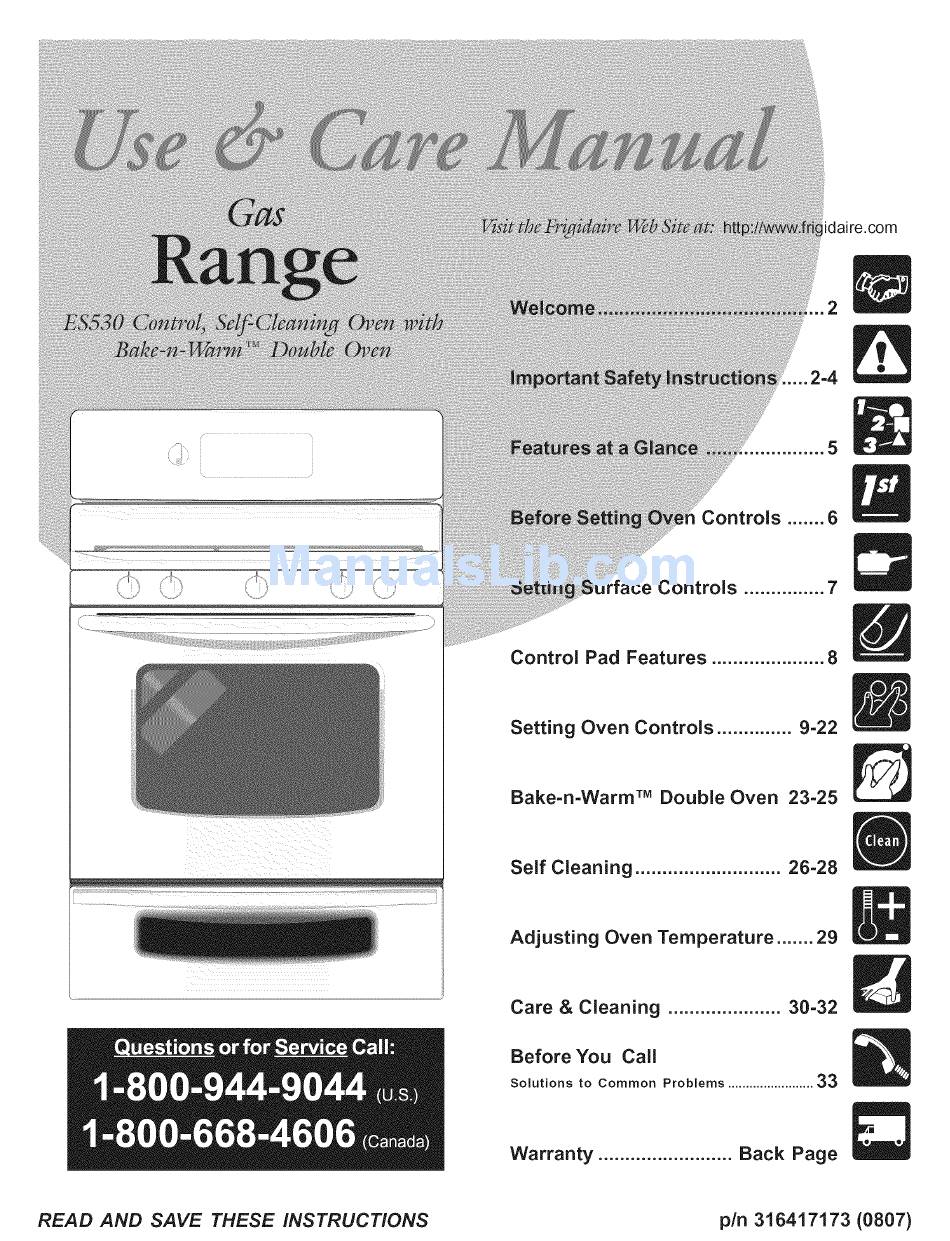

- Page 1 idaire.com ...2-4 Controls ..6 Controls ....7 Control Pad Features ..... Setting Oven Controls ....9-22 Bake-n-Warm Double Oven 23-25 Self Cleaning ......26-28 Adjusting Oven Temperature ..29 Care & Cleaning ..... 30-32 Before Call Solutions to Common Problems ......
- Page 2 welcome congra tulations Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. •...
-
Page 3: For Your Safety
l, porta.t Sa ety lnstructions Read all instructions before using this appliance: Save these instructions for future reference, This manual contains important safety symbo!s and instruct!ons. P!ease pay attention to these symbols and fo!!ow aHinstructions g!ven_ This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage. -
Page 4: Self-Cleaning
• Glazed Cooking Utensils--Only certain types of glass, glass/ Do Not Leave Children Alone--Children should not be left ceramic, ceramic, earthenware, or other glazed utensils are alone or unattended in the area where appliance is in use. suitable for cooktop service without breaking due to the They should never be allowed to sit or stand on any part of the sudden change in temperature. - Page 5 ..... • _00 Your Gas Range Features Include: Electronic Oven Control with Kitchen Timer, Bake-n-Warm Double Oven Control & ndicator Light. Left Front Burner Valve & Knob. Left Rear Burner Valve & Knob. Center Burner Valve & Knob (some "nodels). Right Rear Burner Valve &...
-
Page 6: Before Setting Oven Controls
Before Setting Oven Controls Oven Vent Location OVEN VENT The oven vent is located below the backguard (See Fig. 1). When the oven is on, warm air is released through this vent. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT BLOCK THE VENT. Removing &... -
Page 7: Surface Controls
Setting Surface controls Setting Surface Controls Do not place plastic Your range may be equipped with different sized surface burners. The ability to heat items such as salt and pepper food quicker and in larger volumes increases as the burner size increases. The shakers, spoon holders or plastic Simmer burner (some models) is best used for simmering... - Page 8 m i ¸ :: co° , ¸Pod o,o si READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use &...
- Page 9 - - Even-Cook- Convection Oven Speed Oven Timer clean light on/off Clean Bake Start Broil Bake Keep time time warm Cony Cony Cony Max× Favorite Clear Clock clean Lock converl bake roast '0f[ setting Controls Setting the Clock The CLOCK @ pad is used to set the clock.
- Page 10 Setting Continuous Bake or 12 Hour Energy Saving The TIMER ON/OFF _ and CLEAN ___ pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes, The oven can be programmed to override this feature for Continuous Baking, INSTRUCTIONS PRESS...
- Page 11 Setting Oven Lockout Feature The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the Warmer Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven light.
- Page 12 - - Even-Cook. Convection Oven Speed Oven Timer clean light on/off Clean Bake Start Broil Bake Keep time time warm Maxx Clock Cony Cony Cony Favorite Clear clean Lock convert bake roast setting Controls Setting Silent Control Operation The START TIME _ and CLEAN _ pads control the Silent Control operation feature.
-
Page 13: Setting Bake
- - Even-Cook, Convection Oven Speed Oven Timer clean light on/off Clean Bake Start Broil Bake Keep time time warm Maxx Clock Cony Cony Cony Favorite Clear clean Lock convert bake roast setting 'Off Controls Setting Bake The BAKE q pad controls normal baking. - Page 14 Setting Timed Bake pads control the Timed Bake feature. The automatic timer of the Timed Bake feature The BAKE O and BAKE TIME _ will turn the oven OFF after cooking for the desired amount of time you selected. iNSTRUCTiONS PRESS DISPLAY To program the oven to begin...
- Page 15 Setting Delayed Start The BAKE , BAKE TiME _ and START TiME _ pads control the Delayed Start. The automatic timer of the Delayed Start will turn the oven ON and OFF at the time you select in advance. INSTRUCTIONS PRESS DISPLAY To program...
-
Page 16: Setting Broil
Setting Broil The 10 pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature between 400°F and 550°F. - Page 17 Benefits of Convection Bake: --Some foods may cook up to 25 to 30% faster, saving time and energy, --Multiple rack baking. --No special pans or bakeware needed. Setting Convection Bake pad controls the convection baking features. The CONV BAKE @ Use Convection Bake when cooking speed is desired, The oven may be programmed for Convection Bake for anytemperature...
- Page 18 Setting Convection Roast The CONV ROAST pad is designed to give optimum cooking performance for this feature. The Convection Roast pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is not necessary for meats and poultry.
- Page 19 To set the Convection Convert Feature CONV CONVERT pad is used to automatically convert a standard baking recipe for convection baking. When set properly, this feature is designed to display the actual converted (reduced) temperature in display. Convection Convert MUST be used with a Convection Bake keypad.
- Page 20 Using the Favorite Settings Feature FAVORITE SETTING pad is used to record and recall your favorite recipe settings. This feature may store and recall from 1 to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake, This feature will not work with any other function including a Delay Start (Delayed Timed Bake) setting.
- Page 21 To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays) The _ BAKE TIME and _ START TIME pads are used to set the Sabbath feature. The Sabbath feature may only be used with the pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show and no audible tones will be provided when a change occurs.
- Page 22 Setting the Sabbath Feature (cont'd) It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than the oven control can accept.
- Page 23 Dual Features of the Bake-n-Warm Double Oven The Bake-n-Warm Double Oven isdesigned to provide two unique food preparation features. The features provide a Mini Oven and a Warmer Drawer using the same lower oven cavity, drawer and control. The Mini Oven feature is ideal for cooking foods such as pizza, casseroles, baked potatoes and frozen convenience foods. The purpose of the Warmer Drawer feature is to keep hot cooked foods at serving temperature.
- Page 24 To Set the Mini Oven Feature of the Bake-n-Warm Double Oven: Push in and turn the Bake-n-Warm control knob clockwise to the desired temperature setting (See Fig. 1). A beep will sound indicating the oven is ON. For best results always preheat the oven drawer before adding food. An empty oven Warmer Mini drawer will preheat in approximately 15 minutes.
-
Page 25: Double Oven
Bake-n-Warm Double Oven Light Operation (some models): The Bake-n-Warm Double Oven light operates with the upper oven light and automatically turns ON when the upper oven door is opened. If equipped, the Bake-n-Warm Double Oven light may also be manually operated by pressing the _ pad. -
Page 26: Self-Cleaning Oven
Self-Cleaning Oven During the Self-Cleaning A Self-Cleaning oven cleans itself with high temperatures (well above cooking cycle, the outside of the range can temperatures) which eliminate soils completely or reduces them to a fine become very hot to the touch. DO NOT leave small children unattended near the powdered ash you can wipe away with a damp cloth. - Page 27 TheSPEED CLEAN _, CLEAN _ MAXX CLEAN _,_), pads are used to start a Self-Cleaning cycle. When used with START TIME @ pad, a delayed Self-Cleaning cycle may also be programmed. This feature allows for any Self- Cleaning cycle times from 2 hours (using Speed Clean), 3 hours (using Clean) to 4 hours (using Maxx Clean). During the Self-Cleaning cycle, the outside of the range can become very hot to the touch.
- Page 28 iNSTRUCTiONS PRESS DISPLAY When the Self-Clean cycle is done: The time of day,"Hot, DOOR LOCKED" and "CLEAN" icon will remain in the display (See Fig. 7). Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" icon is no longer displayed, the oven Fig.7 door can then be opened.
- Page 29 Thetemperature i ntheovenhasbeenpre-set a tthefactory. W hen firstusing theoven,be Note: The oven temperature suretofollowrecipe timesandtemperatures. Ifyouthinktheovenistoohotor toocool,the adjustments made with this temperature i ntheovencanbeadjusted. Before adjusting, testa recipe byusinga feature will not change the temperature s etting thatis higher o r lower t hantherecommended temperature. Thebaking Self-Clean cycle results should helpyoutodecidehowmuchofanadjustment is needed.
-
Page 30: How To Clean
Surfaces Howto Clean Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution Plastic Body Parts & of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Control Knobs Glass cleaners may be used if sprayed... - Page 31 Cleaning the Cooktop The cooktop is designed to make cleaning easier. Since the four burners are sealed, cleanups are easy when spillovers are cleaned up immediately. To clean, wipe with a dean, damp cloth and wipe dry. DO NOT attempt to clean the cooktop when the cooktop or burner heads are still hot.
-
Page 32: Removing And Replacing The Lift-Off Oven Door
Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Door Hinge To Remove Oven Door: locations with oven door Open oven door completely (horizontal with floor- See Fig. 1). fully open Pull the door hinge locks on both left and right door hinges down from the... - Page 33 Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided with the problem listed: Range is not level = (1) Poor installation.
- Page 34 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,...
