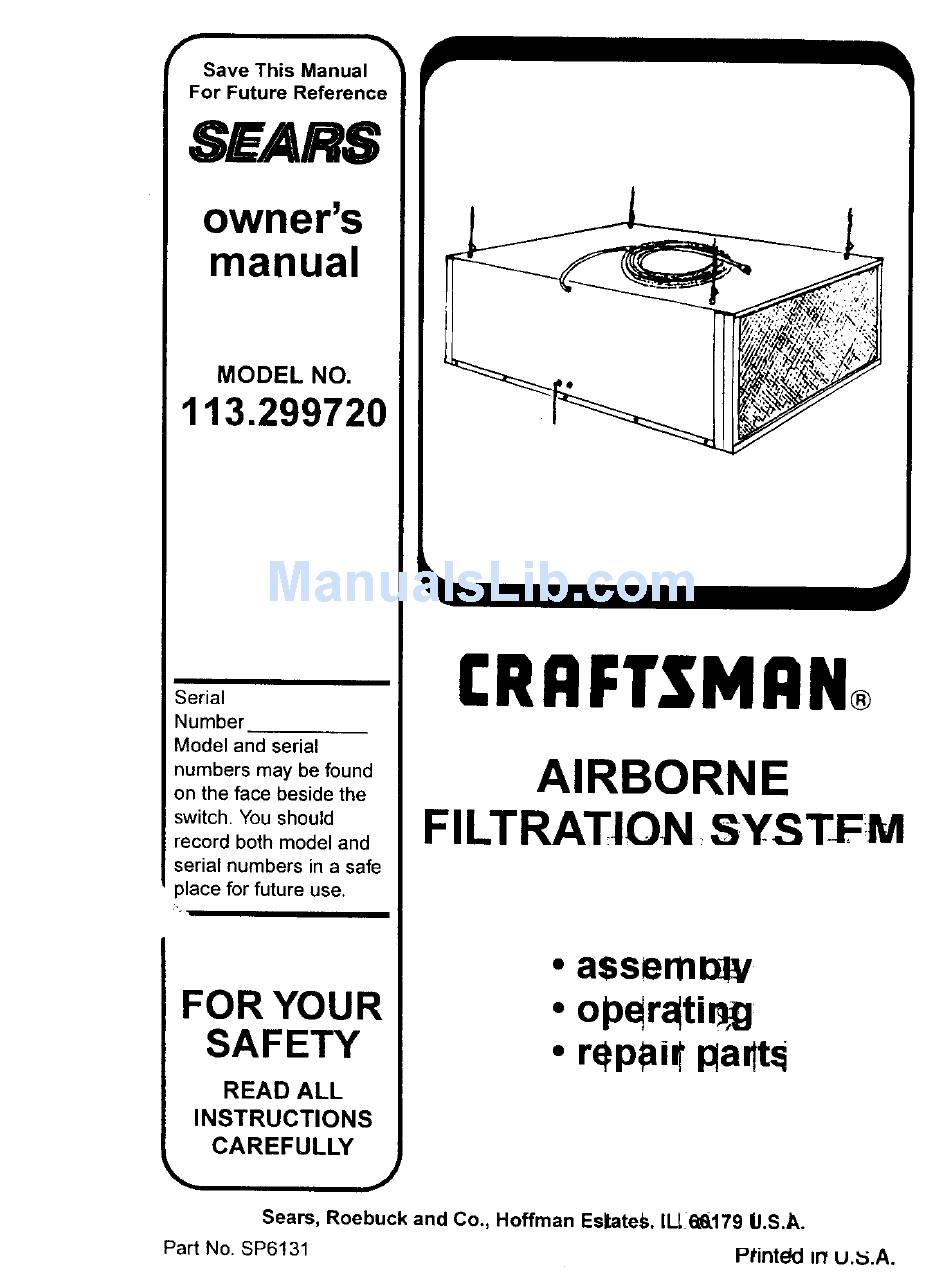

SEARS
owner's
manual
MODEL
NO.
113.299720
Serial
Number
Model and serial
numbers
may be found
on the face beside the
switch.
You should
record
both model and
serial numbers
in a safe
place for future use.
FOR YOUR
SAFETY
CRRFTSMRN
AIRBORNE
FILTRATION SYSTFM
• assemmv
• operating:
• repai_ pa_t_
READ ALL
INSTRUCTIONS
CAREFULLY
j
Seam,
Roebuck
and Co., Hoffman
Estateb.
ILL6_179
U.S.A.
Part No. SP6131
Ptinte_l
in uJS.A.

Advertisement

   Related Manuals for CRAFTSMAN 113.299720

No related manuals

   Summary of Contents for CRAFTSMAN 113.299720

  • Page 1

    Save This Manual For Future Reference SEARS owner's manual MODEL 113.299720 CRRFTSMRN Serial Number Model and serial AIRBORNE numbers may be found on the face beside the FILTRATION SYSTFM switch. You should record both model and serial numbers in a safe place for future use.

  • Page 2

    Use only as described To avoid injury from accidental starting, in this manual To avoid personal injury or unplug power cord before changing damage to Airborne Filtration System, use cleaning filters only Sears Craftsman recommended acces- sories.

  • Page 3

    Do not unplugby pullingon cord.To This product should not be used in a unplug,graspthe plug,not the cord. spray paint booth or in a kitchen type envi- ronment. Do not use withdamaged cord, plug or Do not use the top of this unit for storage. other parts.

  • Page 4

    Contents Item Page Item Page Warranty Information ......Electrical Requirements ......Safety Instructions ......... Operation ..........Contents ..........Maintenance .......... Unpacking and Checking Wiring Diagram ........Carton Contents ......Repair Parts ........Installation Procedure ......Unpacking and Checking Carton Contents Remove entire contents of carton.

  • Page 5

    Installation Procedure WARNING: For your own safety, 2. Joists are normally sixteen inches never connect plug to power source apart. Spacing of holes on width of outlet until all assembly steps are unit is 18-7/8", and on length of unit is 28"...

  • Page 6

    Installation Procedure (continued) 6. The next step is to install the eye bolts in the top of the unit. To do this, you must remove the three filters first. Ceiling Joist Refer to drawing under "Maintenance" section for location of three types of fil- ters.

  • Page 7

    To suspend your unit at the minimum chain. Repeat for other three springs. height, five double loop sections Refer to figure shown on previous chain are required (4-13/16"). Slip this page. length of chain over the screw eye in Unit is now hung from the ceiling the joist, letting the excess chain hang high as possible.

  • Page 8

    Light will come on and filter unit is in use this system to filter toxic materi- operation. To stop operation, pull on als. The Craftsman Airborne Filtra- switch cord and the light will turn off. tion System is intended...

  • Page 9

    Removal WARNING: For your own safety, use only Sears replacement filters. To remove the filters for cleaning replacement review the section in your WARNING: To avoid electrical manual under "Installation Procedure" fol- shock, be sure to replace screw that lowing steps, 7, 8 and 9. secures Fine Filter.

  • Page 10

    Repair Parts Airborne Filtration System Model Number 113.299720 Always order by Part Number - Not by Key Number PaN No. Description 825702 Cabinet Assembly 824294 Bottom Panel 9-17931 1 Pre Filter - intake 9-17933 1 Fine Filter - Mid Bag Type 824295 Diffuser- Exhaust...

  • Page 11

    Repair Parts Airborne Filtration System Model Number 113,299720...

  • Page 12

    For the repair or replacement pads you need Call 7 am - 7 pm, 7 days a week 1-8OO-366-PART (1-800-366-7278) For in-home major brand repair service Call 24 hours a day, 7 days a week 1-8OO-4-REPAIR (1-800-473-7247) Far the location of a Sears Repair Service Center in your area Call 24 hours a day, 7 days a week 1-800-488-1222...
