CRAFTSMAN 390.2505 Owner's Manual

Shallow well jet pump.
Hide thumbs

Advertisement

SEARS
OWNER'S
MANUAL
MODEL NO.
390.2505
CAUTION:
Read and Follow
All Safety Rulesand
Operating Instructions
Before First Use of
This Product.
Save ThisManual For
Future Reference.
I:RI:IFTSMRN°
SHALLOW WELL
JET PUMP
• Safety Instructions
• Installation
• Electrical
• Maintenance
• Repair Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
PRtNTED
iN U.S.A.
FormNo. F642-04071
(8/3/04)

Advertisement

   Related Manuals for CRAFTSMAN 390.2505

   Summary of Contents for CRAFTSMAN 390.2505

  • Page 1

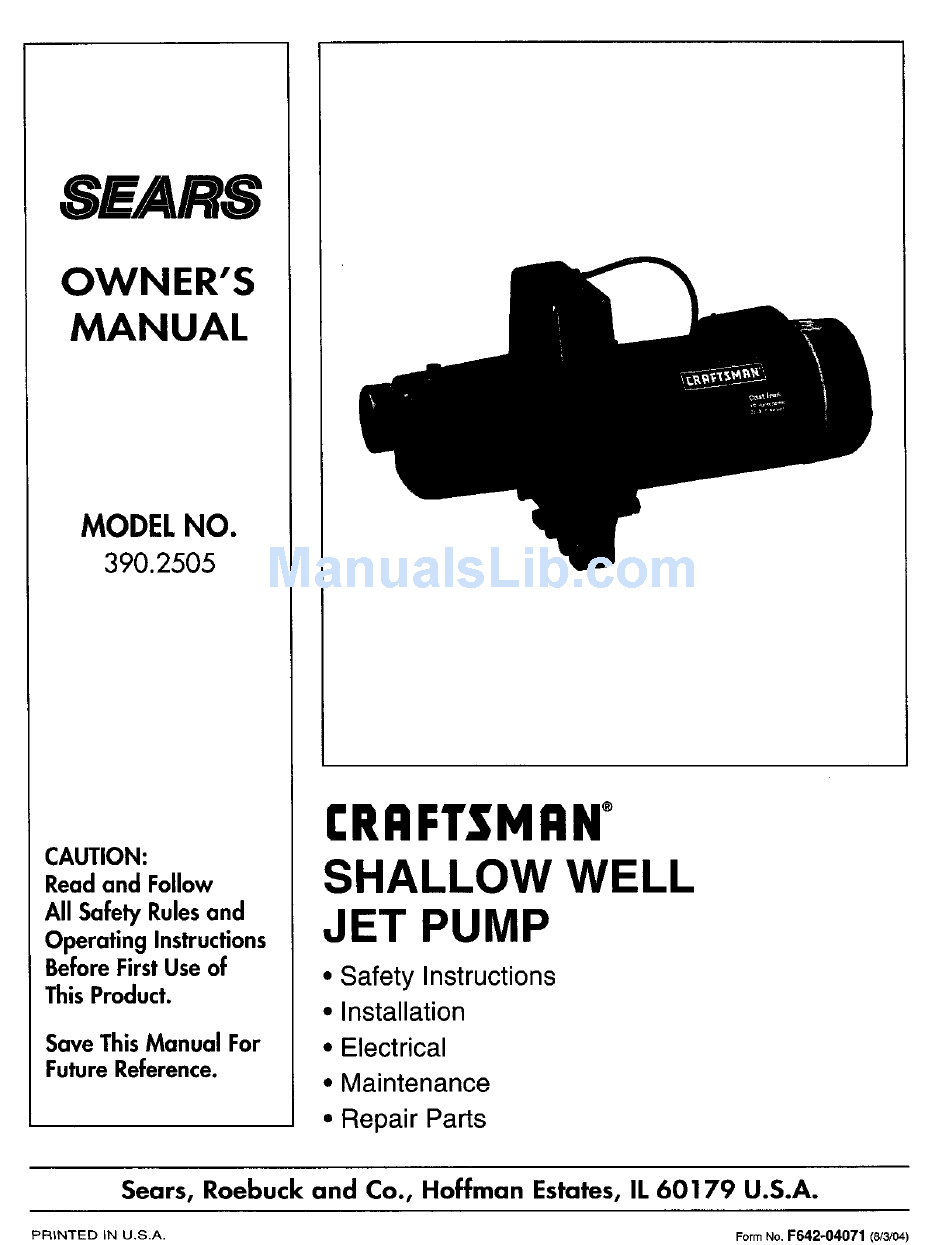

    SEARS OWNER'S MANUAL MODEL NO. 390.2505 I:RI:IFTSMRN° CAUTION: SHALLOW WELL Read and Follow All Safety Rulesand JET PUMP Operating Instructions Before First Use of • Safety Instructions This Product. • Installation Save ThisManual For • Electrical Future Reference. • Maintenance •...

  • Page 2

    CONTENTS INTRODUCTION Introduction ............... Please read our instructions before installing and using your pump. This will help you obtain the full benefits Warranty ..............of the quality and convenience built into this equip- Major System Components ........ment. It will also help you avoid any needless service Installation ..............

  • Page 3

    MAJOR COMPONENTS AND WHAT THEY DO Tank and Air Volume Control your elevation is 3,000 feet above sea level, you would then be pumping 17 plus 3 or 20 feet. This is still sat- The tank serves two functions. It provides a reservoir isfactory for shallow...

  • Page 4

    Figure 2. For mounting pump to tank, purchase tank fitting Kit To Household No. 2788. Water System Built-in Check Valve CRAFTSMAN Captive Air* Tanks are precharged with air at the factory. Check the tank Owner's Manual Adapter find if air charge needs adjustment.

  • Page 5

    ELECTRICAL Disconnect power before working on pump, motor, pressure switch, or wiring. Motor Switch Settings Dial Type Voltage Selector If the motor can operate at either 115 or 230 volts, it Power Supply Connections is set at the factory to 230 volts. Do not change motor voltage setting...

  • Page 6

    ELECTRICAL Wiring Connections Connection Procedure [_WARNING] ]Fire haTAtl'd. Incorrect voltage can cause 1. Connect the ground wire first as shown in Figure 6. a fire or seriously damage the motor and voids the war- The grotmd wire must be a solid copper wire at least ranty.

  • Page 7

    MAINTENANCE Lubrication Carefully tap diffuser to remove from seal plate. Remove canopy from end of motor. It is not necessary to lubricate the pump or its motor. The motor has two ball bearings lubricated for life. The Partially unscrew capacitor clamp;...

  • Page 8

    MAINTENANCE TO HANDLE Lubricate inside diameter and outer face of rubber drive ring with soapy water and slide assembly A GASEOUS WELL motor shaft (sealing face first) until rubber drive In some localities well water contains gases which ring hits shaft shoulder. must be allowed to escape before...

  • Page 9

    TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motorwill not run 1. Disconnect switch is off 1. Be sure switch is on Fuse is blown 2. Replace fuse Starting switch is defective 3. Replace starting switch Wires at motor are loose, 4.

  • Page 10

    REPAIR PARTS 18 1_ To Order Parts, Call Sears Product Service, 1-800-366-7278 Model 390.2505 Qty. Part Number Used Description J218-953C Motor - 115/230V - 60 Cycle 17351-0009 Water Slinger N3-9 Seal Plate N20-35 Gasket - Seal Plate U109-6A Shaft Seal J105-40P Impeller L1-25P...

  • Page 11

    REPAIR PARTS 35 36 Shallow Well Jet Pump Air Volume Control Package For Use With Standard Tanks (Not Furnished - Must be purchased separately) Part Number Description 2761 Air Volume Control U78-774P Reducer Bushing - 1-1/4" x 1/4" NPT U37-17GPT Nipple - 1/4"...

  • Page 12

    SEARS OWNER'S [RAFTSMAN* MANUAL SHALLOW WELL JET PUMP Model No. 390.2505 Forthe repair or replacementpartsyou need Call7 am - 7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) Forin-homemajorbrandrepair service Call24 hours a day, 7 days a week 1-8OO-4-REPAIR (1-800-473-7247) The model number of your Shallow Well Jet Forthe location of a Pump will be found on a...

Comments to this Manuals
