- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSS42FTX00 (Etched Aluninum) 11−07 Litho In U.S.A. (mat) Part No. W10138264 Rev. B...
-
Page 2: Cabinet Parts

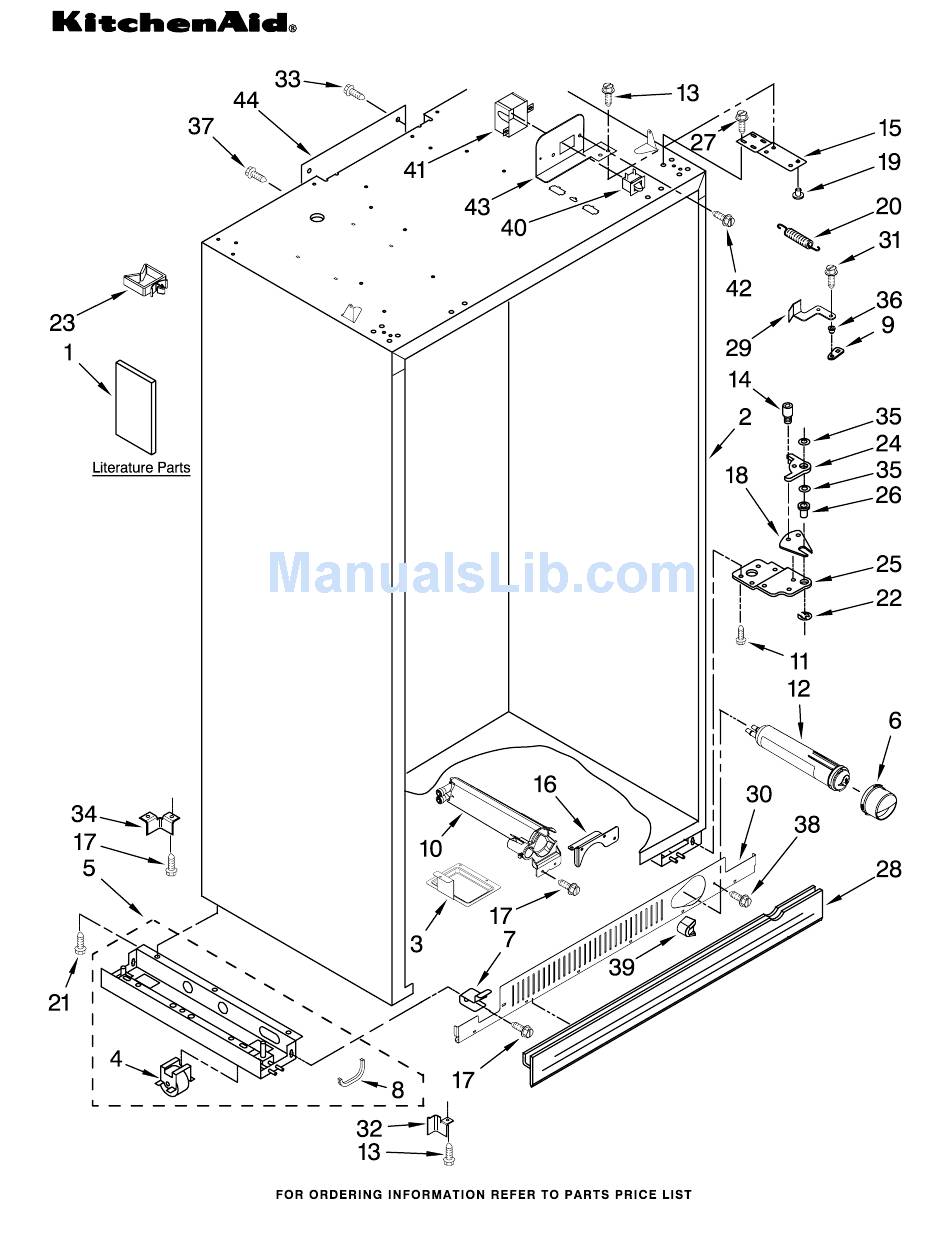

CABINET PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2260526 Housing, Water Literature Parts Extension Arm, Filter 2316571 Use & Care Guide Door Closer 3400525 Screw 2316576 Energy Guide 2266882 Right 4396841 Filter, Water 2318165 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 6 W10132541 Cabinet Trim (Left Side) 7 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10138264...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2302868 Wire, Shelf (2) 2302871 Cover, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice 2266931 Bucket, Ice 2266955 Spacer W10138264... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle 2320635 Baffle, Control Assembly 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2307586 Control Box 2310164 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb 8281185 Screw W10138264... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2316825S Top Grille Assy 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2317923S Nameplate 489348 Clamp 2003347 Tee Bolt (4) 2004333 Nut (2)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2222592 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon 2326255 Light Bulb 2302925 Bracket, Vent Tube...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2252330 Refrigerator Door (Includes #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Utility 2222811 Door Gasket, Magnetic 2001230 Washer 2316842S Handle, Door Screw, 8−15 x .500...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264... - Page 16 FREEZER DOOR PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part DESCRIPTION 2252327 Freezer Door (Includes #14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic 2316844S Handle, Door 2001230 Washer Screw 8281250 Stainless Steel 2005026 Trim−Door, Top 2215985S Trim−Door, Bottom 2005964 Trim−Door, Side...
- Page 17 UPPER UNIT PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264...
- Page 18 UPPER UNIT PARTS For Model: KSSS42FTX00 (Etched Aluninum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 487522 Screw 489373 Screw, Compressor 2155774 Wire Tie Following Parts Not Illustrated Mounting (4) 2317982 Drier and Optional Parts Not Included 2223393 Compressor 2310207 Wire Assembly (Includes Items...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS42FTX00 (Etched Aluninum) W10138264...
