KitchenAid KSSS48QDW05 Parts List

KitchenAid KSSS48QDW05 Parts List

48" built in refrigerator
Hide thumbs Also See for KSSS48QDW05:

Advertisement

Table of Contents

See also: Use and Care Manual , Instruction and Installation Manual
CABINET PARTS
48" BUILT IN
For Models: KSSS48QDW05, KSSS48QDX05
REFRIGERATOR
1
Part No. 4394685
4−06 Litho In U.S.A. (dm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48QDW05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48QDW05

Summary of Contents for KitchenAid KSSS48QDW05

  • Page 1 CABINET PARTS 48" BUILT IN For Models: KSSS48QDW05, KSSS48QDX05 REFRIGERATOR Part No. 4394685 4−06 Litho In U.S.A. (dm)

  • Page 2: Cabinet Parts

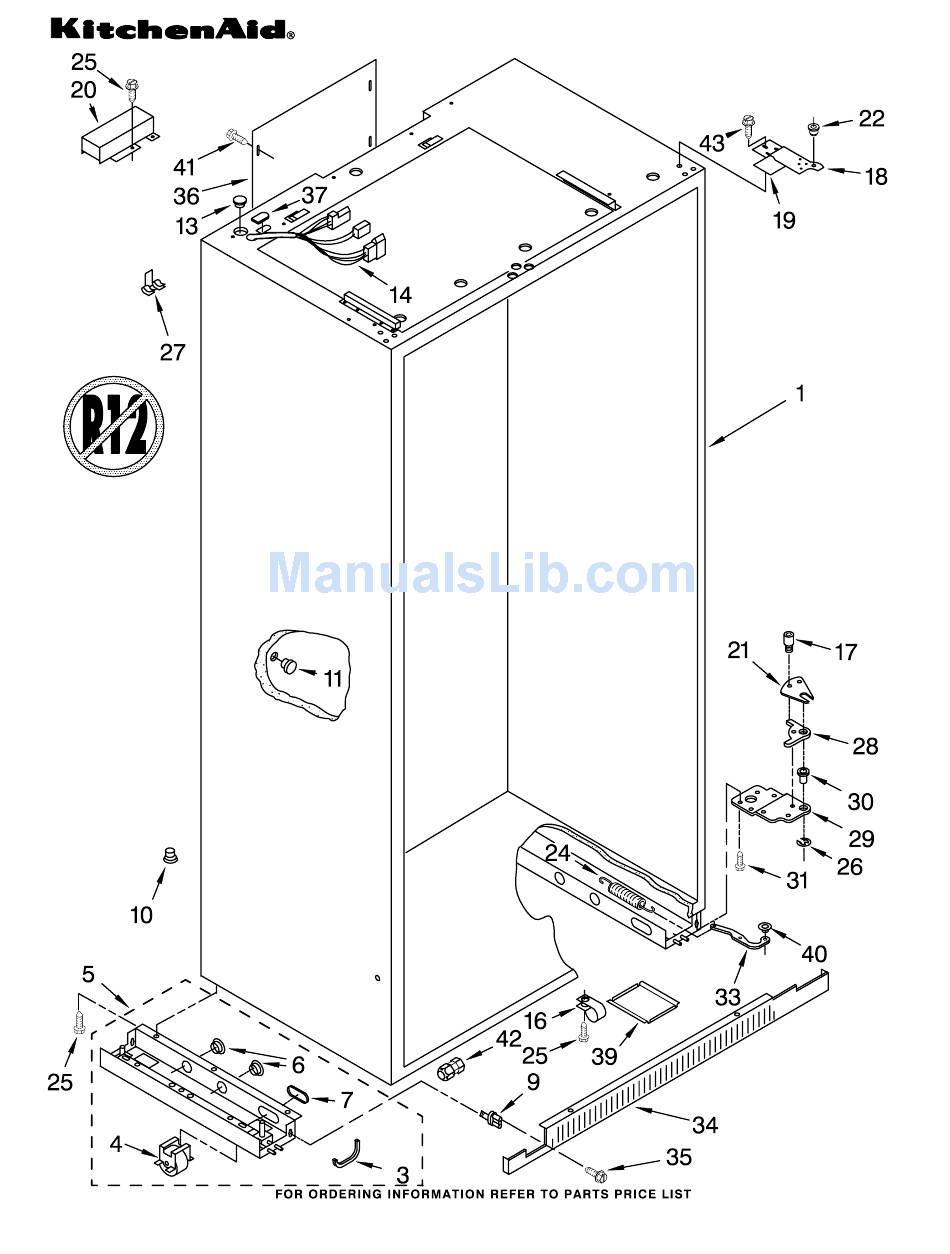

    CABINET PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge (Bottom) 2004993 Screw, Door Stop Cabinet (Not A 2004539 Freezer Side Hinge (Top) Serviceable Part) 2004507 Refrigerator Side 2001976 Left Side 2005004 Grommet, Tube 2004992 Bushing, 2001975 Right Side Crossover...
  • Page 3 CABINET TRIM PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION Cabinet, Trim (2) 2004668 White 2004553 Stainless Steel 2003857 Screw 1161561 Screw 2004538 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top 487944 Washer (2) 4394685...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2)
  • Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113769 Shield, Control Panel 1112613 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan,...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2001626 Basket 2003114 Trim, Basket Slide, Basket 2000061 Right Side 2000062 Left Side 486194 Screw 4394685...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION Top Grille Assembly 2003718 White 2003715 Stainless Steel 2004946 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Decortive Panel Assembly 2003727 White 2003724 Stainless Steel 2003480 Guard, Compressor Wiring 2003483 Guard, Water Valve Wiring...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2003941 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2004521 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom 2001049 Door Gasket, Magnetic Handle, Door...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2004886 Freezer Door Panel (Includes Insulation) 1112997 Tube, Wiring 1112928 Retainer, Tube 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2004521 Hinge, Top 2004520 Spacer−Door, 2004924 Wiring Harness, Freezer Door 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer,...
  • Page 19 DISPENSER AND FRONT PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489000 Screw Screw Housing, Dispenser Lever, Ice 488892 White 1124715 White Dispenser 489197 Stainless Steel 1107943 Black 1124718 White 487052 Screw 2147164 Insulator, Bracket 1127421 Black 851389 Light Bulb Control...
  • Page 21 UPPER UNIT PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 22 UPPER UNIT PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 1113019 Clamp (4) Following Parts Not Illustrated Base 487522 Screw and Optional Parts Not Included 2163787 Clip, Compressor 851095 Wire Tie (2) Mounting (4) 2164492 Drier 2183420 Compressor...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2002448 Sleeve 2002995 Tube, Discharge 2003272 Sleeve...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003926 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS48QDW05, KSSS48QDX05 4394685...
  • Page 28 ICEMAKER PARTS For Models: KSSS48QDW05, KSSS48QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 628228 Mold & Heater 841707 Insert, Tube 2171593 Shut Off Arm (Also Order 628379 Clip, Fuse 2171952 Bracket 542638 Silicone 2005009 Water Inlet 489478 Screw Grease) Tube Assembly 628399 Module Assembly...
