01−09 Litho in U.S.A. (MMS) (eeb)

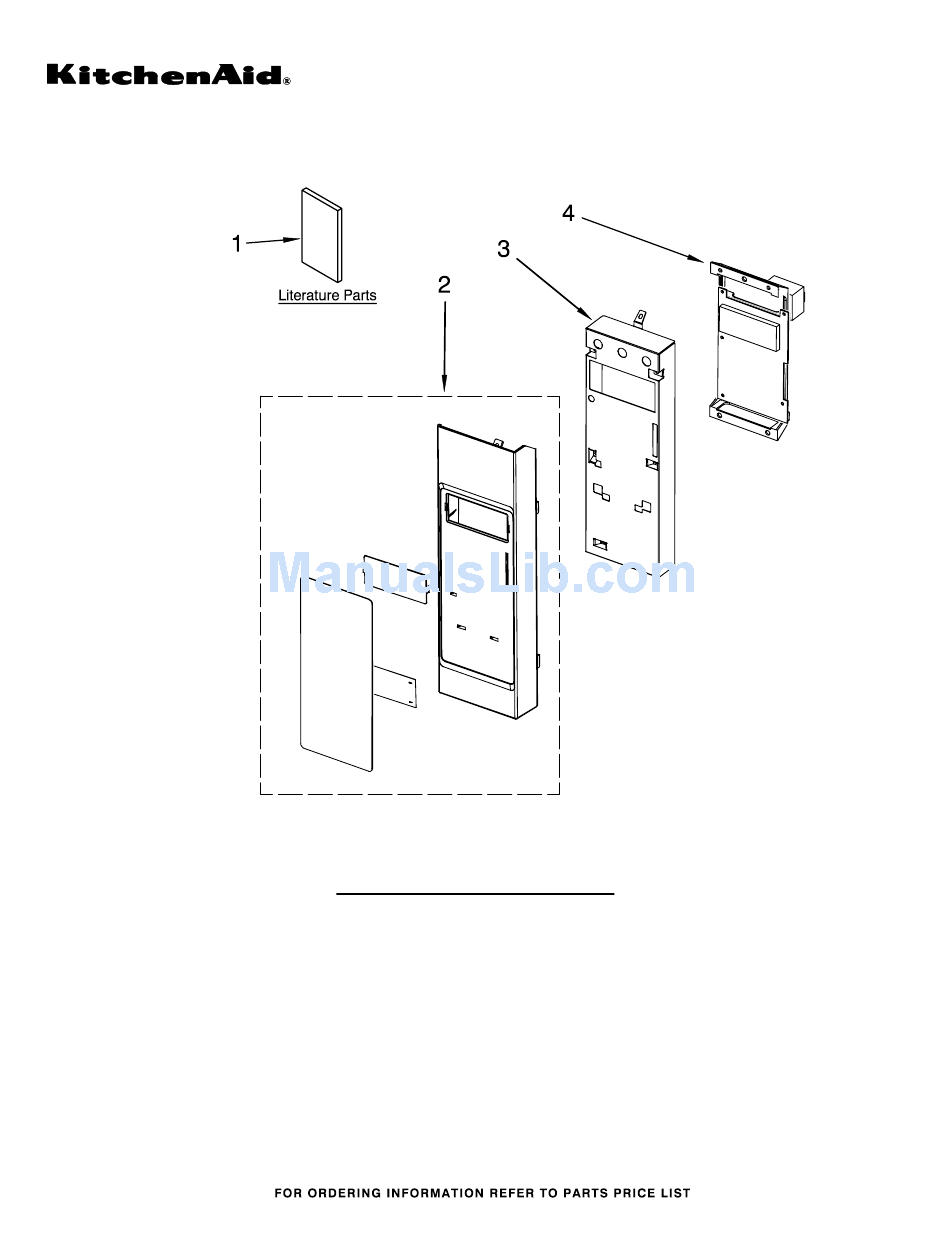

CONTROL PANEL PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0
(White)
Illus.
Part
No.
No.
1
W10208005 U & C Guide
W10249229 Tech Sheet, Slim
W10217357 Inst, Operating
W10238252 Install,Instruct.
2
W10250592 White
W10250591 Blk/Stnls Mdls
3 W10247749 Bracket, Control
4 W10250589 Microcomputer
(Black)
(Stainless)
DESCRIPTION
Literature
Panel Asy, Control
Includes Lens and
Membrane Switch
1
MICROWAVE OVEN/HOOD
2.0 Cu. Ft.
Part No. W10252674 Rev. A

Advertisement

loading

  Related Manuals for KitchenAid KHMS1857WBL0

  Summary of Contents for KitchenAid KHMS1857WBL0

  • Page 1: Control Panel Parts

    CONTROL PANEL PARTS MICROWAVE OVEN/HOOD 2.0 Cu. Ft. For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part DESCRIPTION Literature W10208005 U & C Guide W10249229 Tech Sheet, Slim W10217357 Inst, Operating W10238252 Install,Instruct. Panel Asy, Control Includes Lens and Membrane Switch W10250592 White W10250591 Blk/Stnls Mdls...
  • Page 2: Door Parts

    DOOR PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part DESCRIPTION COMPLETE DOOR W10250602 White W10250599 Black W10250603 Stainless Handle 8206501 White W10110267 Black W10250604 Stainless 3 W10138802 Screw W10252674...
  • Page 3 INTERIOR AND VENTILATION PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) W10252674...
  • Page 4 INTERIOR AND VENTILATION PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part DESCRIPTION 1 W10248270 Chassis 2 W10208564 Lamp 3 W10250585 Holder, Lamp 4 W10208631 Filter, Grease 5 W10250588 Plate, Bottom 6 W10210875 Glass, Lamp 7 W10210873 Holder, Glass 8 W10211972 Switch, Micro V15T16−CZ200 9 W10211973 Switch, Micro...
  • Page 5 AIR FLOW PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10248269 Deflector, Air 8206624 Filter 20 W10164716 Plate, Water Proof 8206382 Cover, Lamp 12 W10210878 Holder, Lamp 21 W10245182 Cover, Right Duct 3 W10245178 Sensor, Humidity 13 W10249325 Base Plate, 22 W10249511 Cavity Lamp Foil...
  • Page 6: Turntable Parts

    TURNTABLE PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part DESCRIPTION 1 W10249516 Cover, Inlet Includes Nails and Bushings 2 W10245207 Hook (4) 3 W10138801 Plastic Rivets(4) 4393799 Turntable 8206227 Ring, Turntable 8206228 Driver, Turntable 7 W10143959 Motor, Turntable 8 W10249618 Rack 9 W10107790 Washer 8206618 Screw...
  • Page 7 CABINET AND INSTALLATION PARTS For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0 (White) (Black) (Stainless) Illus. Part DESCRIPTION 1 W10245177 Plate, Mounting 8206442 Damper Assembly 8206388 Cord, Power Case, Outer W10250584 Black W10250583 White Grille, Vent W10245218 Black W10245216 Stainless W10245217 White 6 W10210832 Plate, Damper 7 W10248268 Assy, Top Plate 8 W10248267 Assy, Back Plate 9 W10249318 Assy, Bottom Plate...
