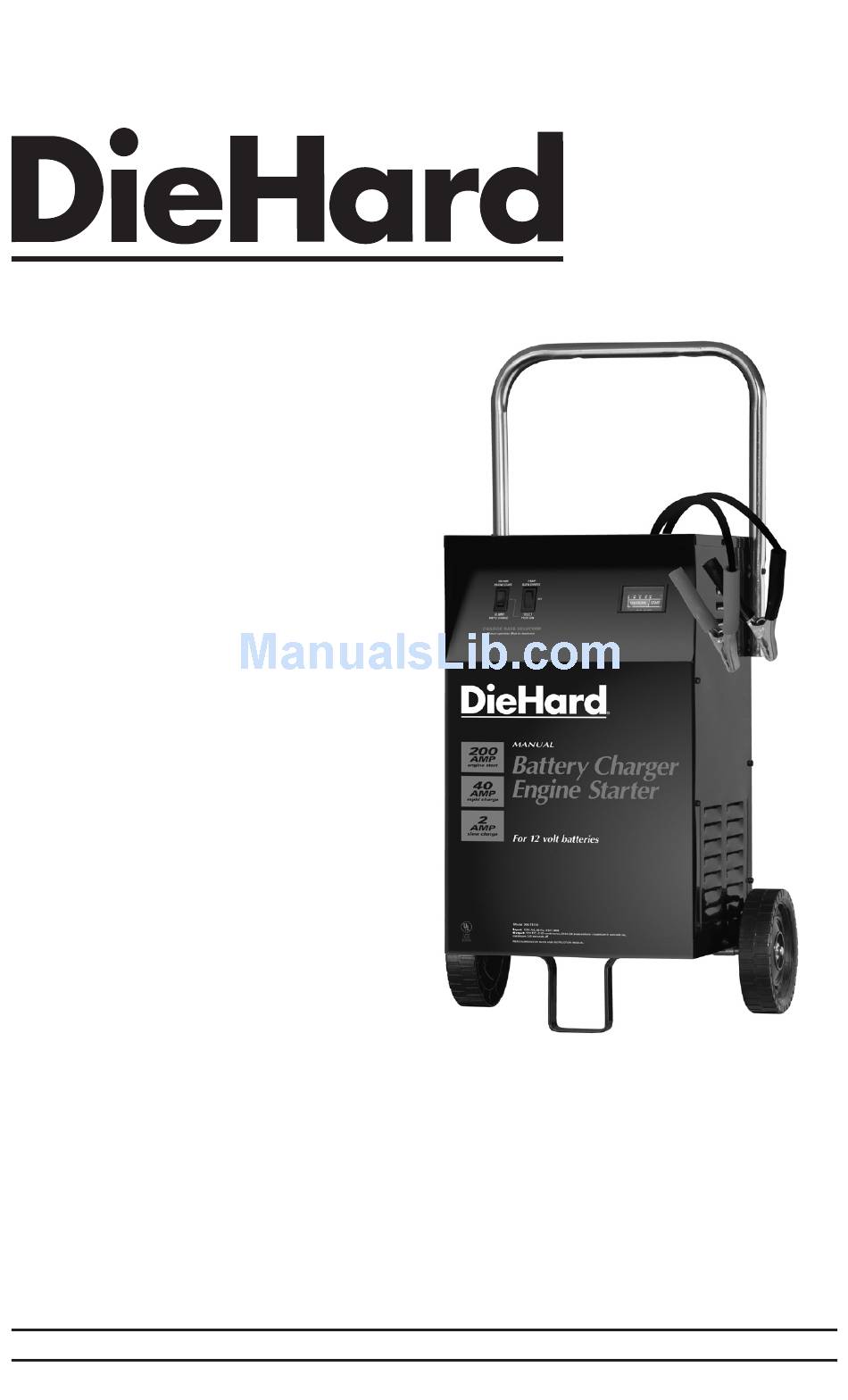

Page 1: Battery Charger
BATTERY ChARGER 40/20 Amp Manual 200 Amp ENGINE STARTER Model No. 200.71230 CAUTION: Read and follow all Safety Rules and Operating Instructions Before Every Use of this Product. SAvE ThESE INSTRUCTIONS. Sears, Roebuck and Co., hoffman Estates, IL 60179 U.S.A. -
Page 2: Table Of Contents
SECTION 1. IMPORTANT SAfETY INSTRUCTIONS 2. PERSONAL PRECAUTIONS 3. PREPARING TO ChARGE 4. ChARGER LOCATION 5. dC CONNECTION PRECAUTIONS 6. whEN BATTERY IS INSTALLEd IN vEhICLE 7. whEN BATTERY IS OUTSIdE vEhICLE 8. BATTERY ChARGING - AC CONNECTIONS 9. PARTS 10. -
Page 3: Important Safety Instructions
Do not expose charger to rain or snow. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock or injury to persons. To reduce the risk of damage to electric plug or cord, pull by the plug rather than the cord when disconnecting the charger. -
Page 4: Warning - Risk Of Explosive Gases
Use this charger for charging a LEAD-ACID battery only. It is not intended to supply power to a low voltage electrical system other than in a starter- motor application. Do not use this battery charger for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage to property. -
Page 5: Preparing To Charge
PREPARING TO ChARGE If it is necessary to remove the battery from the vehicle to charge it, al- ways remove the grounded terminal from the battery first. Make sure all of the accessories in the vehicle are off, so as not to cause an arc. Be sure the area around the battery is well ventilated while the battery is being charged. -
Page 6: When Battery Is Installed In Vehicle
6.5. If the positive post is grounded to the chassis, see step 6.6. For a negative-grounded vehicle, connect the POSITIVE (RED) clip from the battery charger to the POSITIVE (POS, P, +) ungrounded post of the battery. Connect the NEGATIVE (BLACK) clip to the vehicle chassis or engine block away from the battery. -
Page 7: When Battery Is Outside Vehicle
fOLLOw ThESE STEPS whEN BATTERY IS OUTSIdE vEhICLE. A SPARK NEAR ThE BATTERY MAY CAUSE A BATTERY EXPLO- SION. TO REdUCE ThE RISK Of A SPARK NEAR ThE BATTERY: Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N, -) post. -
Page 8: Battery Charging - Ac Connections
15-amperes and intended for use on a nominal 120-volt circuit: • This battery charger is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A in Figure 8.4. - Page 9 Recommended minimum AWG size for extension cords for battery chargers: AC input rating, amperes But less At least If the input rating of a charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating example: AWG size of cord...
-
Page 10: Parts
It is not recommended that the consumer service the internal components of the battery charger, as improper handling or repair could lead to shock, electrocution, damage to the charger, or result in fire. As such, please con- tact 1-800-SEARS-64 for troubleshooting assistance and 1-800-366-PART for repair or replacement parts. -
Page 11: Features
fEATURES ASSEMBLY INSTRUCTIONS It is important to fully assemble your charger before use. Follow these instructions for assembly: PARTS Two, 10-32, thread cutting screws Four, 1/4-20, thread cutting scews Two wheels One axle Two axle caps Two axle brackets One handle One mounting foot Output Selector Switches Ameter... - Page 12 11.1 To attach the axle assembly: Remove charger from packing materials and place upside down on a flat surface. Attach mounting foot and secure with the four, 1/4-20 thread cut- ting screws. 11.2 Hold axle upright on floor or work surface. Then, using a hammer, tap one of the plastic axle caps onto the top end of the axle.
- Page 13 11.3 Place the charger on its side. Place one end of each bracket into slot, then place the axle assembly under each bracket. Fasten the other side of the brackets using the two, 10-32 screws provided. 11.4 To Attach Handle: Turn the charger right side up onto its foot and wheels.
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS 12.1 SETTING ThE CONTROLS All controls for your charger are located on the front of the unit. Follow these instructions to obtain the accurate charge level for your battery. 12.2 Output Selector Switches: Two switches are used to select the rate of charge or function; a 3-posi- tion switch on the right, and a 2-position switch to the left of it. -
Page 15: Calculating Charge Time
The 2 amp charge rate may not indicate activity on the meter. The meter does not have the resolution to display this low rate. CALCULATING ChARGE TIME 13.1 The Chart Method Use the following table to more accurately determine the time it will take to bring a battery to full charge. - Page 16 13.2 The hydrometer or Electronic Method To find the time needed to fully charge your battery, determine the bat- tery’s charge level with a hydrometer or electronic Percent-of-Charge Tester. The following table will help you convert hydrometer readings to percent of charge values. SPECIfIC GRAvITY 1.265 1.225...
-
Page 17: Using The Engine Start Feature
USING ThE ENGINE START fEATURE Your battery charger can be used to jump-start your car if the battery is low. Follow these instructions on how to use the engine start feature. 14.1 Set the right-hand OUTPUT SELECTOR switch to the OFF position. Then follow the instructions for connecting the charger to the battery in the Op- erating Instructions section. -
Page 18: Troubleshooting
TROUBLEShOOTING PROBLEM No reading on the am- meter. No reading on ammeter. Fan inside wheel charger appears to not be work- ing. Circuit breaker in charger cycles on and off with a clicking sound. Short start cycle when cranking engine. POSSIBLE CAUSE Clamps are not making a good connection. - Page 19 PROBLEM Ammeter reads less than selected charge rate when charging a discharged battery. Charger makes a loud buzz or hum. Ammeter reading stays high. POSSIBLE CAUSE Extension cord too long or wire gauge too small. Weak cell or sulfated plate in battery.
- Page 20 • •...
Need help?
Do you have a question about the 200.71230 and is the answer not in the manual?
Questions and answers
I need to know how to wire up the two
To wire the DieHard part number 200.71230 battery charger:
1. Grounding and Power Connection:
- Plug the charger into a properly installed and grounded 120-volt AC outlet.
- If only a two-prong outlet is available, a temporary adapter may be used. Ensure the green grounding clip is securely connected to a grounded outlet plate screw.
- Do not use an extension cord unless absolutely necessary. If used, it must be a 3-conductor (grounded) extension cord with matching plug size and shape.
2. Battery Connection:
- Connect the red (POSITIVE) clamp to the battery’s positive post.
- Connect a 6-gauge or 4-gauge insulated cable (at least 24 inches long) to the battery’s negative post.
- Connect the black (NEGATIVE) clamp to the free end of the insulated cable, standing away from the battery. Ensure a solid connection.
3. Final Steps:
- Set the charger’s right-hand 3-position selector switch to OFF.
- Plug the charger into the grounded outlet.
- Select the desired charge setting on the charger.
Always wear safety glasses and face away from the battery during the final connection.
This answer is automatically generated
were can i get a timer

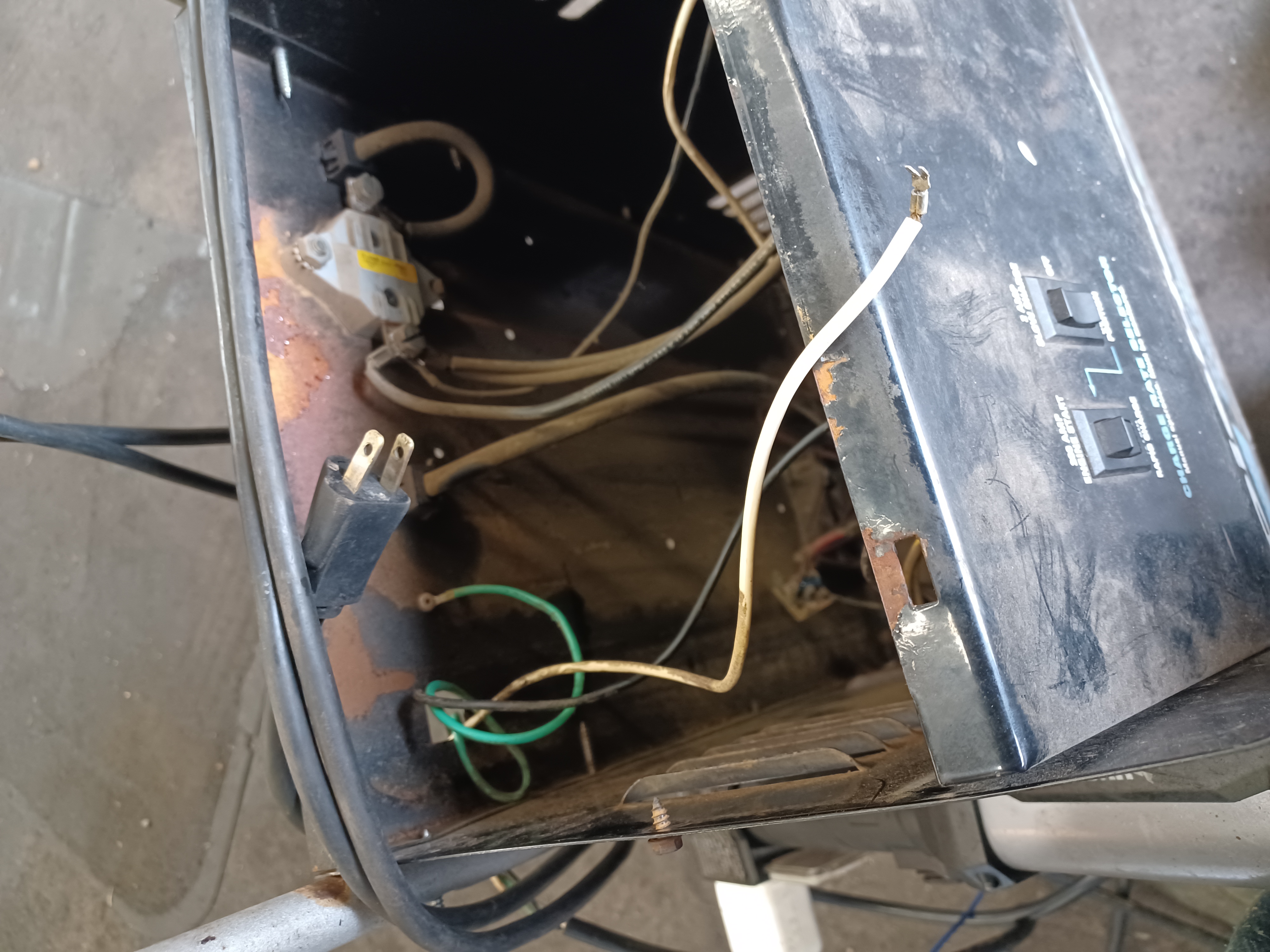

The white wire from the three prong power cord has been pulled out of its connection slot . Where does it belong
