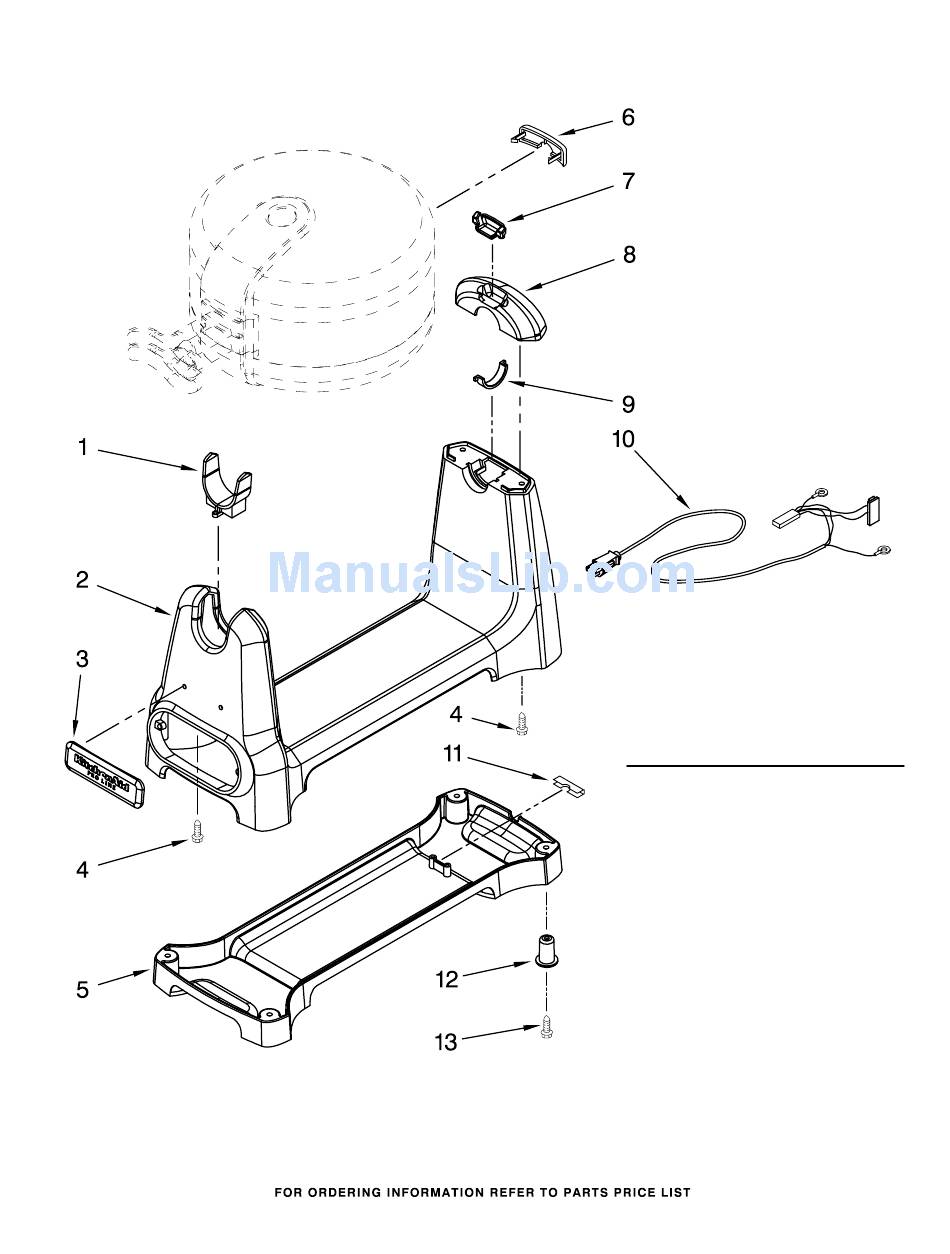

CRADLE PARTS
For Models: KPWB100_ _0
3
Illus.
Part
No.
No.
DESCRIPTION
1
8211494 Bracket
2
Base
8211496 Pearl Metallic
8212148 Nickel Pearl
W10157757 Onyx Black
3
8211492 Nameplate
4
8211495 Screw
5
8211505 Cover, Bottom
6
8211504 Cover, Spring
7
8211498 Clamp
8
Cap
8211497 Pearl Metallic
8212149 Nickel Pearl
W10157758 Onyx Black
9
8211499 Holder, Axle
10
8212256 Cord, Power
(Incl. Mov Board
and PCB)
11
8211503 Clamp, Cord
12
8211501 Foot
13
8211502 Screw
8204590
